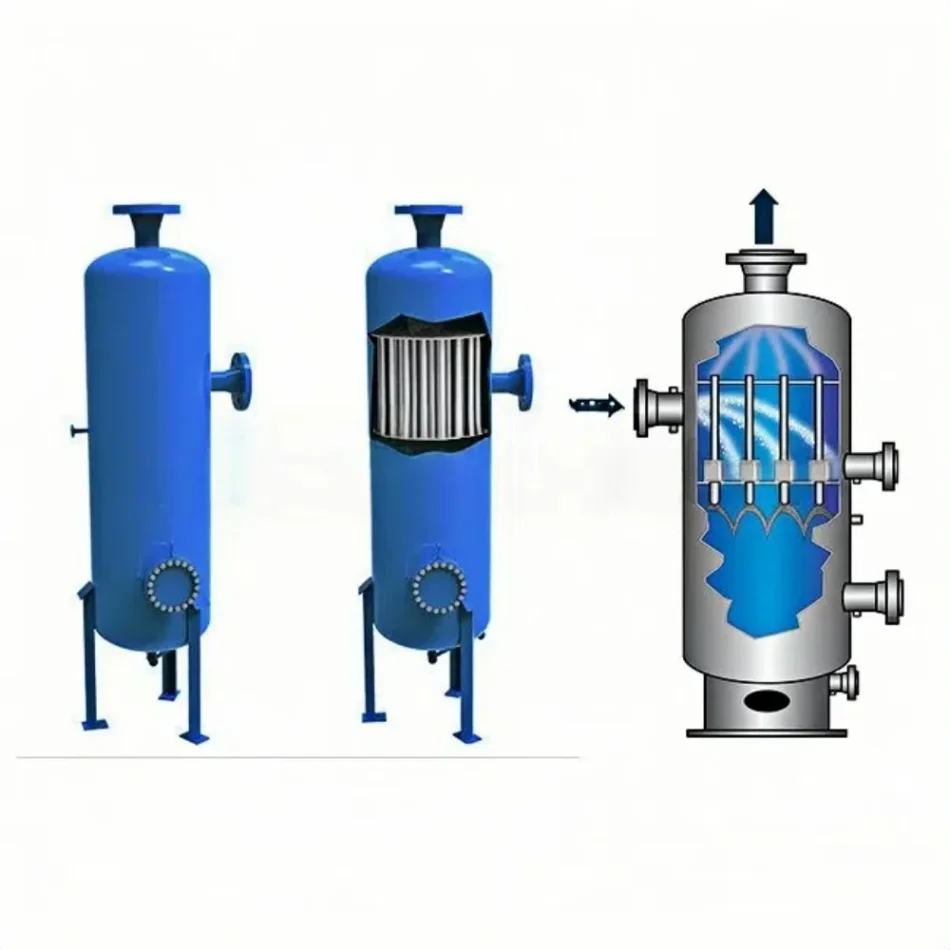

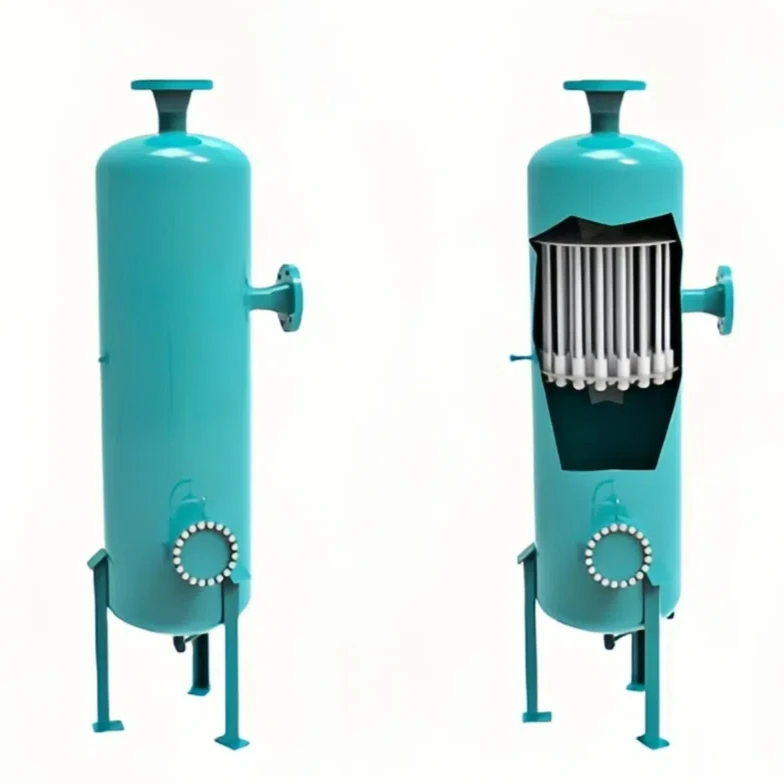

Liquid–Solid Cyclone Separator for Particle and Hydraulic Review
This stainless steel cyclone separator is a pre-separation reference for compatible liquid–solid duties. Selection depends on particle size and density, solids concentration, liquid properties, required flow, inlet pressure, allowable pressure loss, materials, connection orientation and solids-discharge arrangement. Separation performance must be confirmed from representative process data rather than a universal efficiency claim.
Separation Basis
Cyclone performance depends on particle and liquid density, particle-size distribution, flow velocity and internal geometry.
Hydraulic Conditions
Inlet pressure, flow range and allowable pressure loss should be checked against the surrounding process.
Materials
Stainless steel grade and seals require compatibility review for the liquid, temperature and cleaning method.
Solids Discharge
Collection volume, purge frequency and discharge arrangement are matched to the expected solids load.
Selection Information
Provide the liquid composition and viscosity, particle size and density, solids concentration, normal and maximum flow, pressure and temperature, allowable pressure loss, connection standard and preferred discharge method.
Role in the Filtration System
Use this page as a preliminary configuration reference. Final performance, availability and commercial terms are confirmed only for the approved project specification.
|
item
|
value
|
|
Material
|
Stainless Steel
|
|
Max. Capacity
|
500LPH
|
|
condition
|
New
|
|
place of origin
|
Shanghai,China
|
|
brand name
|
SFFILTECH
|
|
voltage
|
Customized
|
|
power(w)
|
|
|
dimension(l*w*h)
|
|
|
weight
|
50
|
|
Special Feature
|
easy installation
|
|
Dimensions
|
|
|
Container type
|
Bottle
|
|
Product name
|
Cyclone Separator
|
|
Handle traffic
|
5-50m³/h
|
|
Separator height
|
600-1500mm
|
|
Barrel diameter
|
90-300mm
|
|
Interface size
|
DN25 DN40 DN50 DN80 DN100
|
|
packet
|
customed
|
