Description

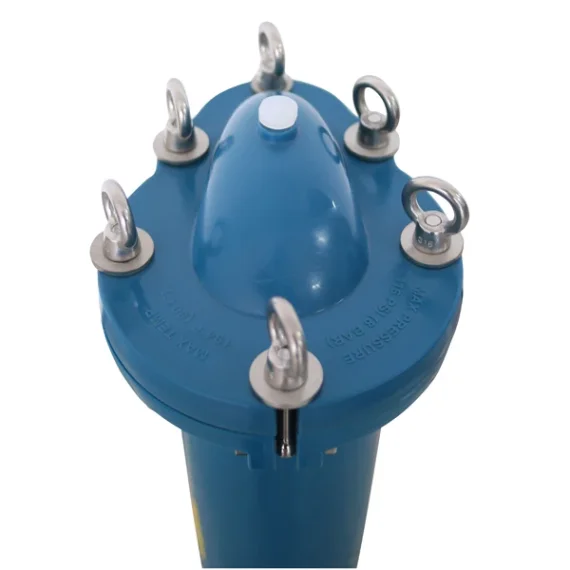

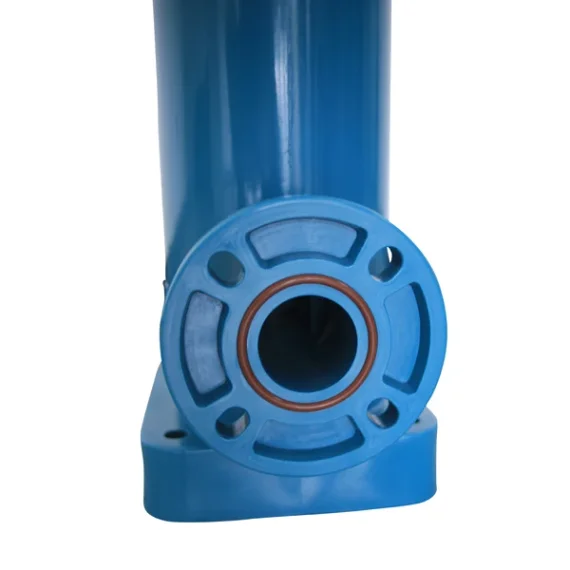

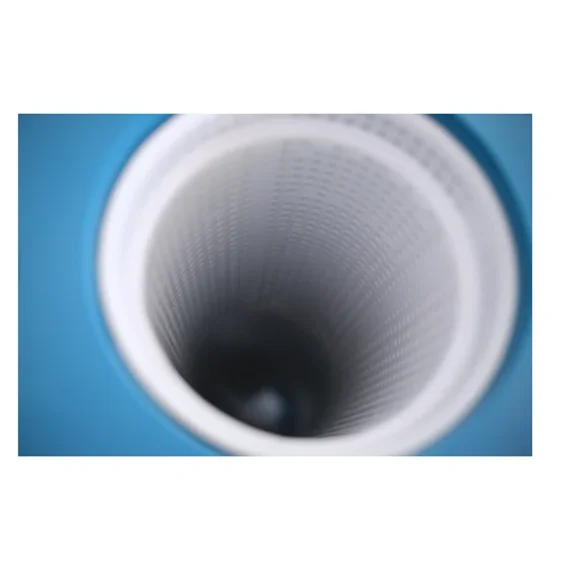

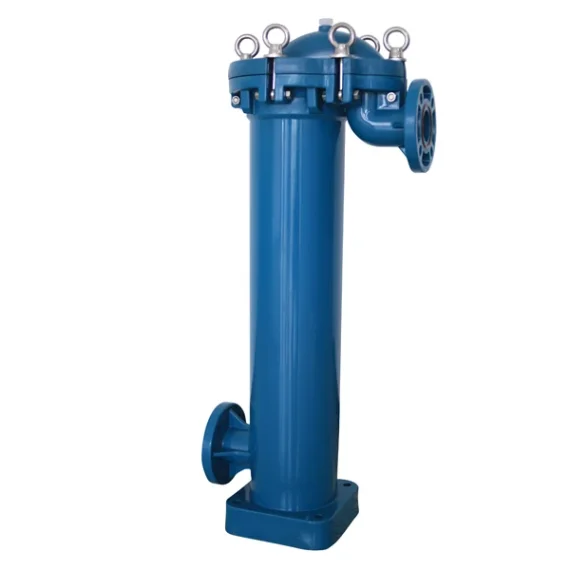

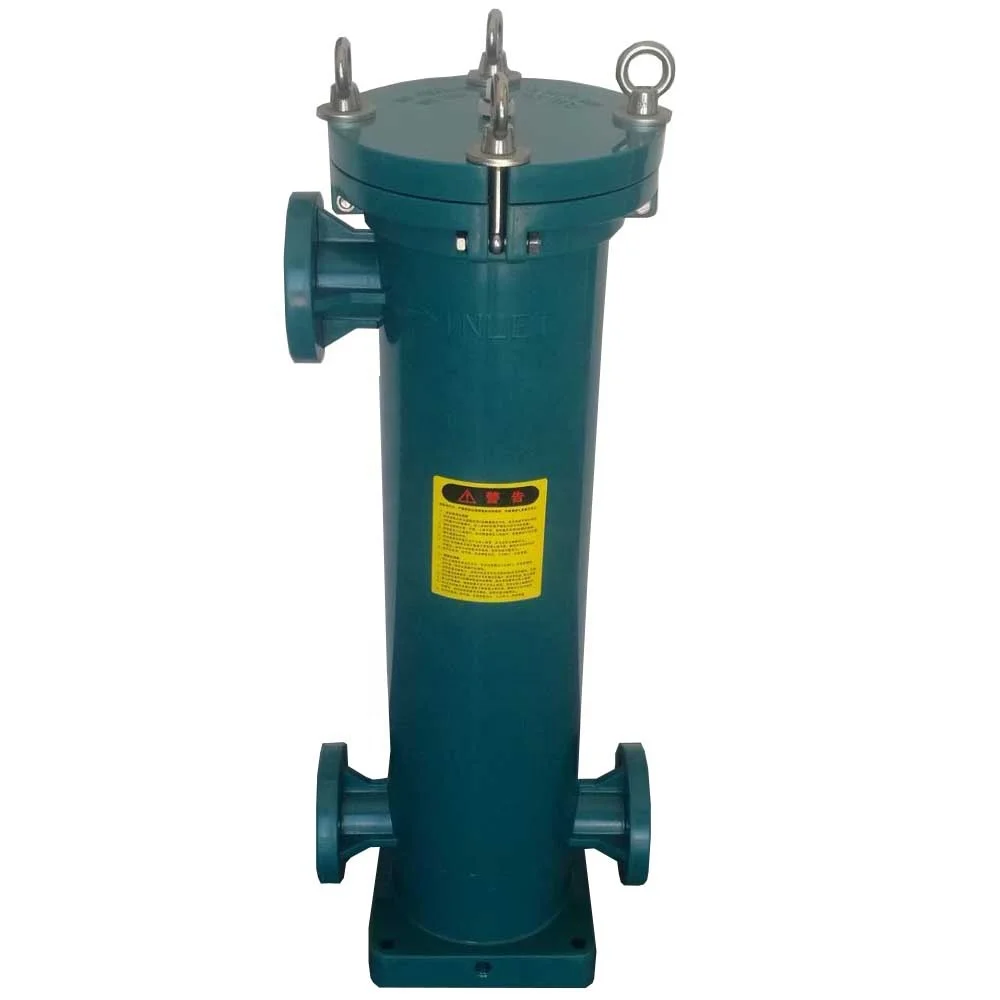

High-Pressure Bag Filter Housing with Pump for Project-Specific Liquid Filtration
This integrated filtration unit is a configuration reference for fuel, water and compatible process-liquid applications. Final suitability should be checked against liquid composition, viscosity, solids loading, required flow, operating pressure, temperature, connection details and installation layout.
Pressure Configuration
The listed 150 PSI value is a product specification; confirm required design and operating pressure before selection.
Nominal Throughput
The listed 500 L/h capacity depends on the liquid, viscosity, contamination load and selected filter media.
Integrated Pump
Pump selection and electrical requirements should be matched to the duty point and site conditions.
Material Options
Stainless steel 304 or 316L should be selected after checking chemical compatibility and cleaning requirements.
Selection Information
For an accurate proposal, provide the process liquid, required flow rate, inlet pressure, temperature, target filtration rating, solids concentration, available power supply, inlet and outlet connections, and installation constraints. Performance and service intervals are confirmed for the approved configuration.
Typical Uses
Possible uses include fuel and water handling, process-liquid clarification and other compatible industrial duties. Food, pharmaceutical or regulated applications require project-specific material, finish, documentation and validation review.
|
Dimensions (Length*Width*Height)
|
71*45*121cm
|
|
pressure
|
150PSI
|
|
productivity
|
500L/h
|
|
Number of filter plates
|
5
|
|
material
|
stainless steel304/316L
|
