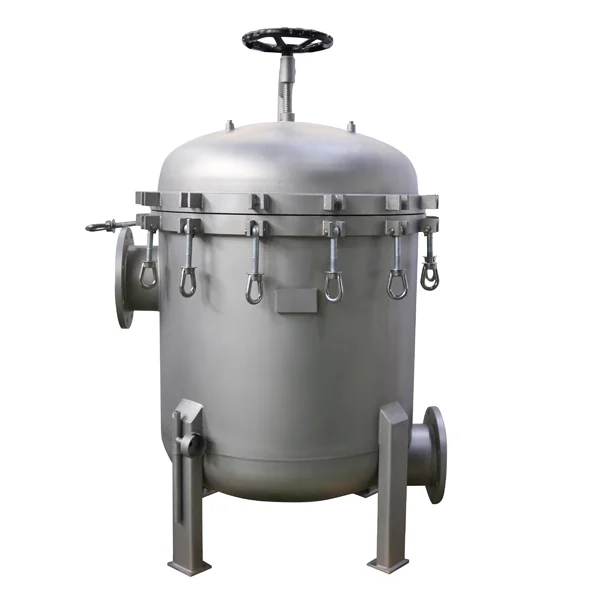

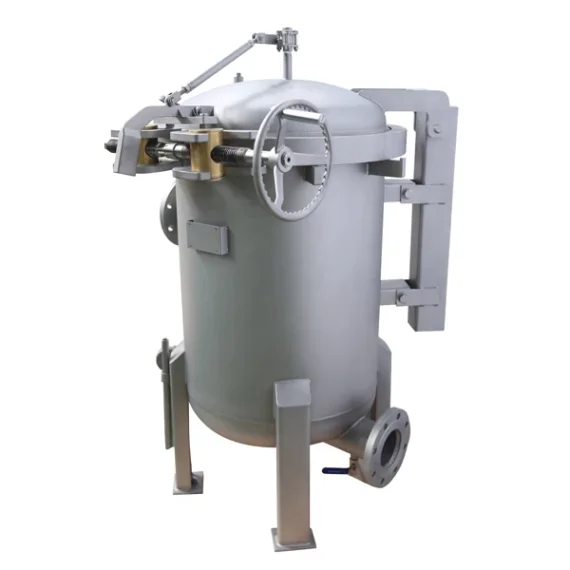

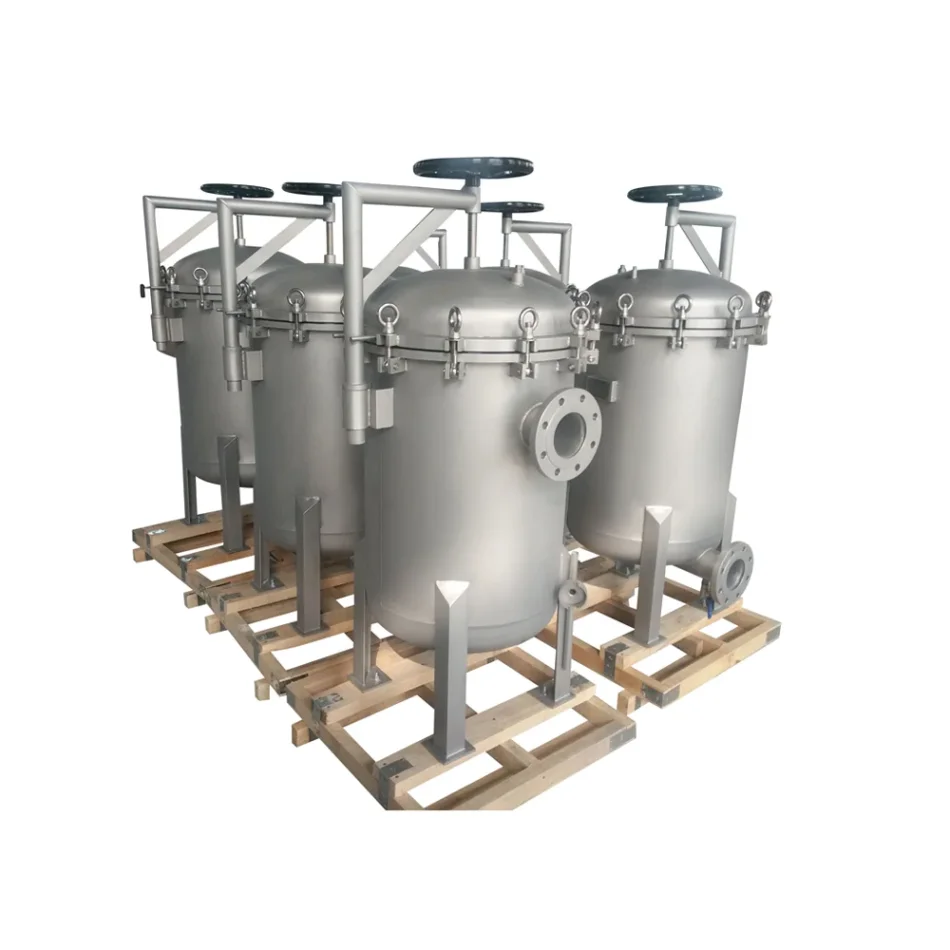

Side-Entry Water Filter Housing for Connection and Flow Review
This stainless steel water filter housing is a configuration reference for compatible industrial water and process-liquid duties. Final selection depends on liquid properties, normal and peak flow, pressure and temperature, bag size and filtration rating, stainless steel grade, gasket, side-entry connection and maintenance clearance.
Side-Entry Layout
Nozzle orientation and connection standard should match the piping arrangement and available space.
Flow Sizing
The listed flow value must be checked against viscosity, bag media, solids load and allowable pressure drop.
Material Selection

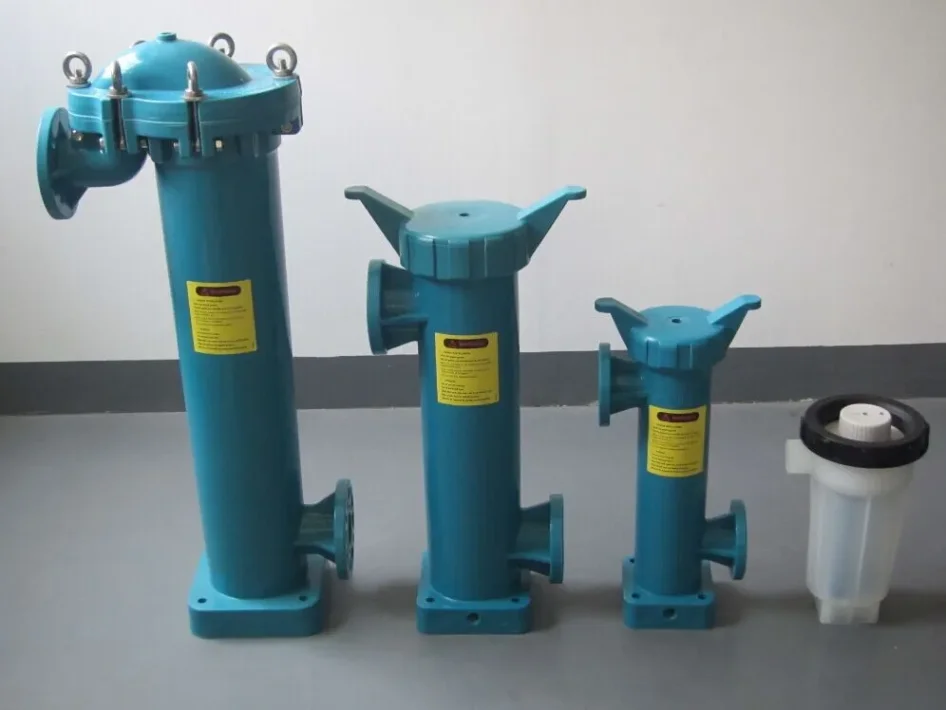

304 or 316 stainless steel and polymer components require process-compatibility review.
Maintenance Access

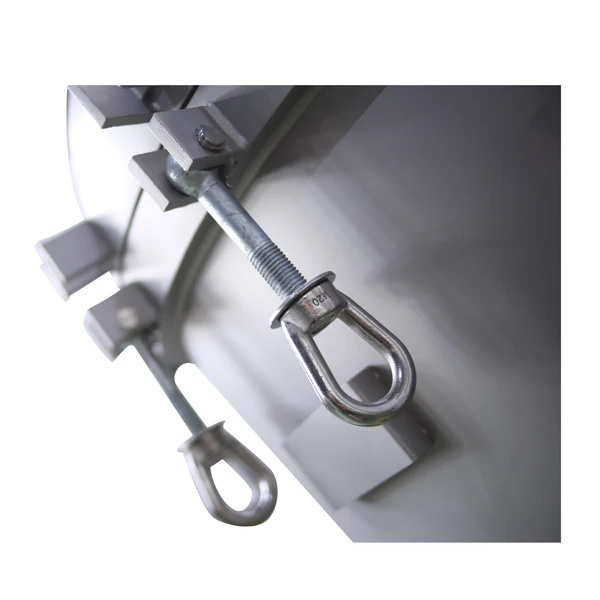

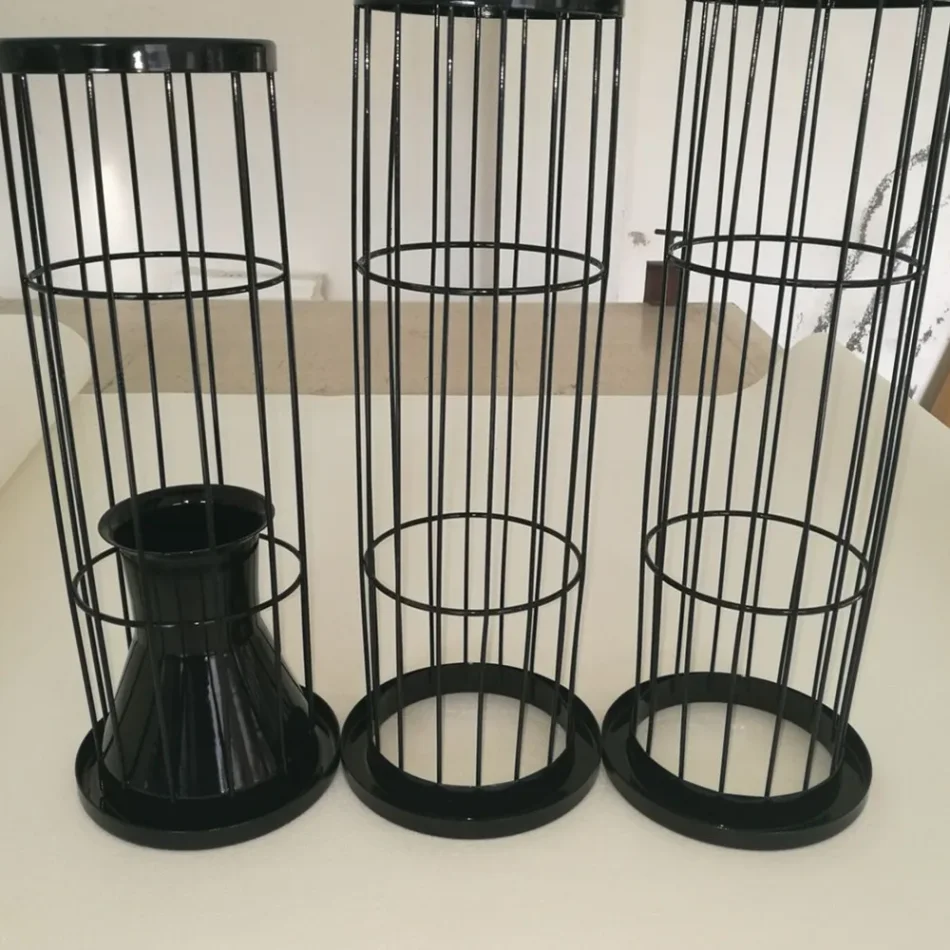

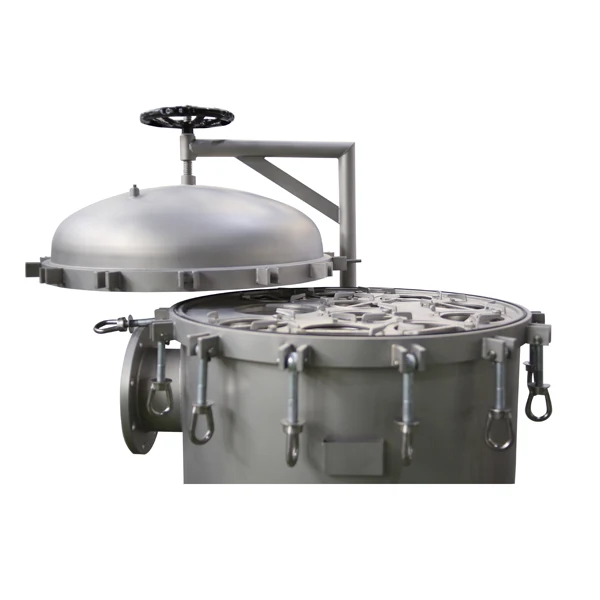

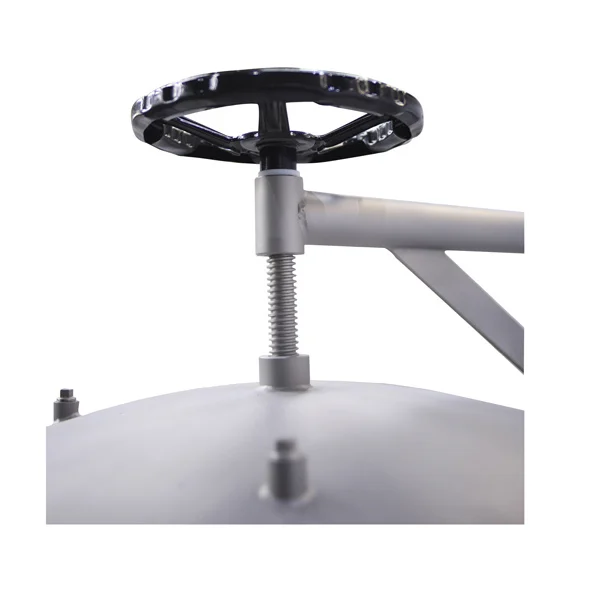

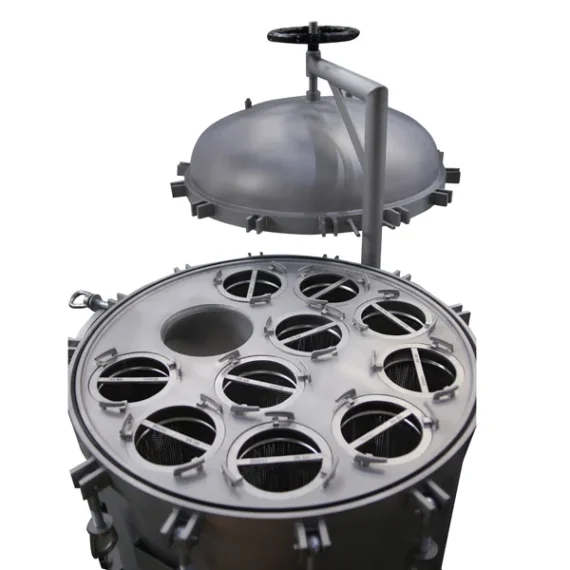

Closure operation, basket removal and bag-change clearance should be confirmed from the installation drawing.
Selection Information
Provide liquid type, flow range, pressure, temperature, target rating, solids load, bag size, materials, seals, inlet and outlet standard, orientation and available service space.
Role in the Filtration System
Use this page as a preliminary configuration reference. Final performance, availability and commercial terms are confirmed only for the approved project specification.
