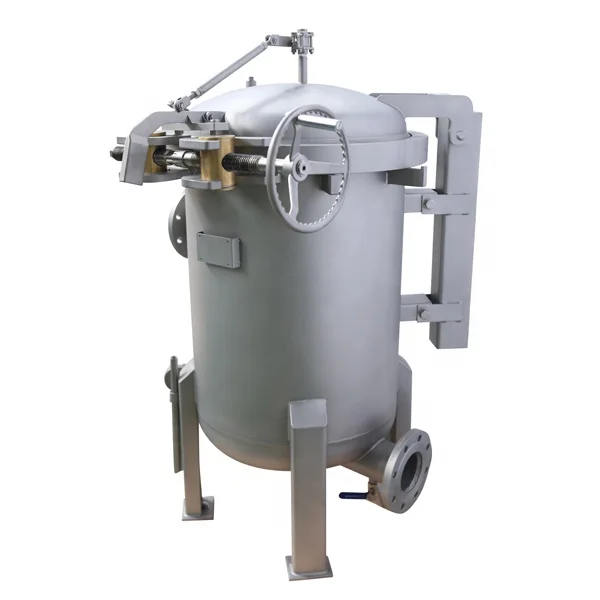

Stainless Steel Pump-Core Filtration System for Duty-Point and Process Review
This pump-integrated liquid filtration system is a configuration reference for project-specific circulation, transfer or batch-filtration duties. Final suitability depends on the liquid, viscosity, solids loading, required flow and head, pressure and temperature, filter element or bag arrangement, materials, seals, electrical supply, connections and installation environment.
Pump Duty Point
Pump type and motor selection should be matched to the required flow, head, liquid properties and site power supply.
Filtration Arrangement
The filter format and rating should be selected from the contaminant load, target result and allowable pressure drop.
Wetted Materials
Stainless steel grade, seals and other wetted components require compatibility review for the process liquid and cleaning method.
System Integration
Connections, controls, skid layout and maintenance access are confirmed against the approved process and installation drawings.
Selection Information
Provide the process liquid, viscosity, solids concentration, required flow and discharge head, operating pressure and temperature, target filtration rating, preferred filter format, power supply, connection standard, control requirement and installation constraints. Performance is confirmed for the approved pump curve and filtration configuration.
Typical Uses
Potential duties include compatible process water, oils, coatings, chemicals, food and beverage liquids and batch-transfer filtration. Regulated, sanitary, hazardous or hot-liquid applications require additional project review.
