Automatic Scraper Filter for Viscosity, Screen and Discharge Review

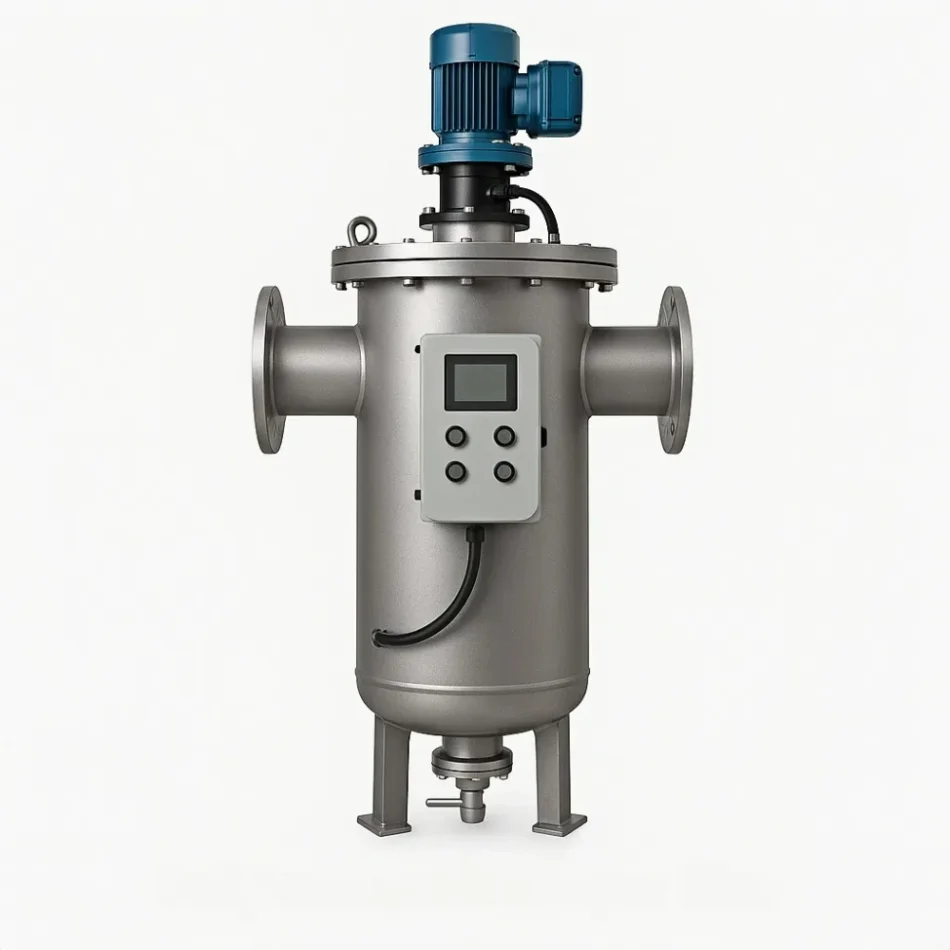

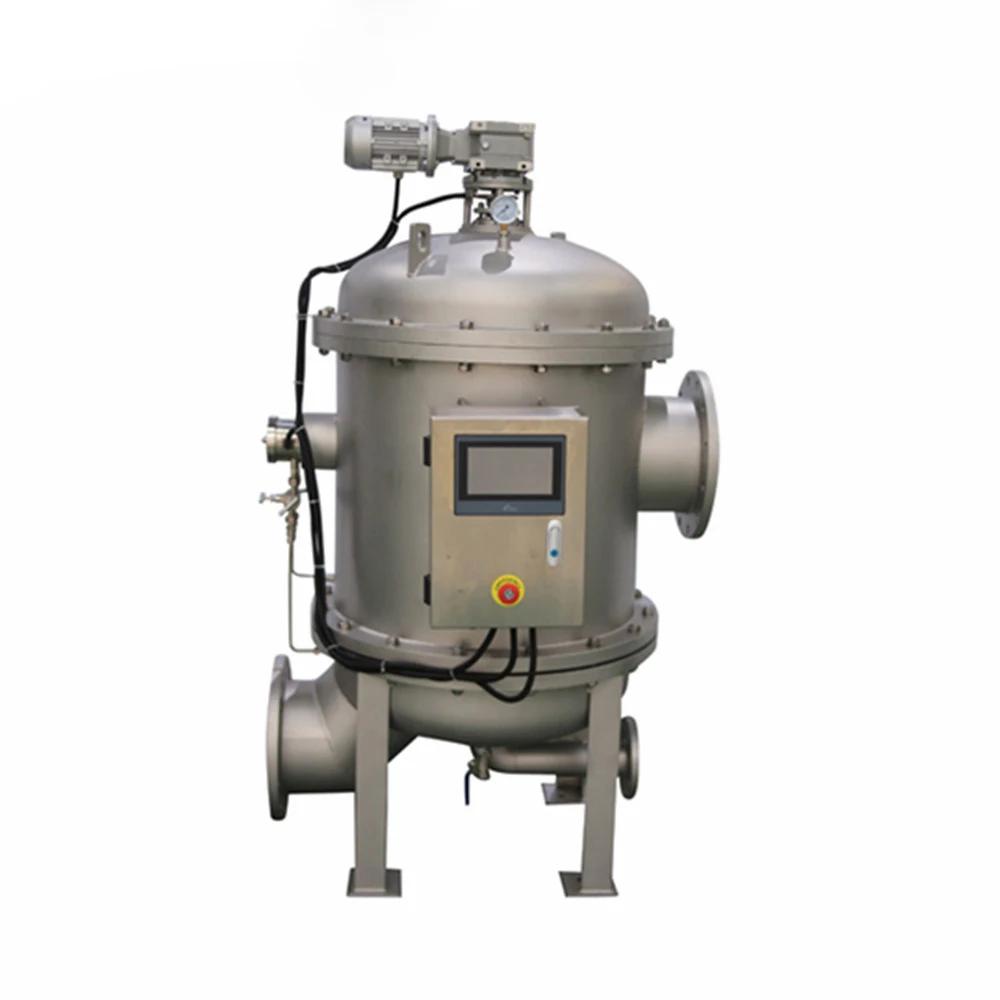

This automatic stainless steel scraper filter is a configuration reference for compatible continuous process-liquid duties. Final selection depends on viscosity, solids type and loading, required flow, operating pressure and temperature, target screen rating, scraper mechanism, cleaning cycle, controls and concentrate-discharge arrangement.
Process Liquid
Viscosity, temperature and chemical composition determine suitable materials, seals and scraper design.
Screen Selection
Screen construction and filtration rating should be matched to particle shape, loading and required result.
Cleaning Cycle
Scraper speed and cycle are configured from differential pressure behavior and solids accumulation.
Discharge Control
Valve type, purge interval and waste concentration depend on the process and recovery objective.
Selection Information
Provide liquid properties, viscosity at operating temperature, solids concentration and particle type, required flow, pressure, temperature, target rating, power supply, control signals, connection standard and discharge requirements.
Role in the Filtration System
Use this page as a preliminary configuration reference. Final performance, availability and commercial terms are confirmed only for the approved project specification.
|
item
|
value
|
|
Flow Rate
|
2.5gpm (9.5lpm)
|
|
Particle Size
|
50-5000
|
|
Maximum pressure
|
0.6-6
|
|
condition
|
New
|
|
Max. Capacity
|
5-50L/H
|
|
Connection Type
|
No special configuration
|
|
weight (kg)
|
150
|
|
Filter Type
|
Scraper
|
|
place of origin
|
Shanghai1,China
|
|
brand name
|
SFFILTECH
|
|
Depth
|
customized
|
|
Width
|
customized
|
|
Height
|
customized
|
|
Diameter
|
customized
|
|
Application
|
Industrial
|
|
Power Options
|
ac 220v 50hz, ac 110v 60hz, Battery Operated
|
|
Air Flow
|
50.0cfm
|
|
Packet
|
Single Item
|
|
Applicable Industries
|
WASTEWATER TREAMENT
|
|
Type
|
Scraper Filter
|
|
Size
|
Customized Size
|
