Description

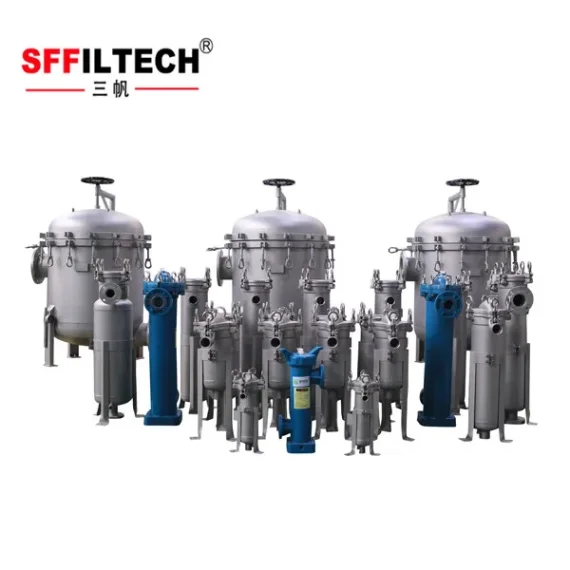

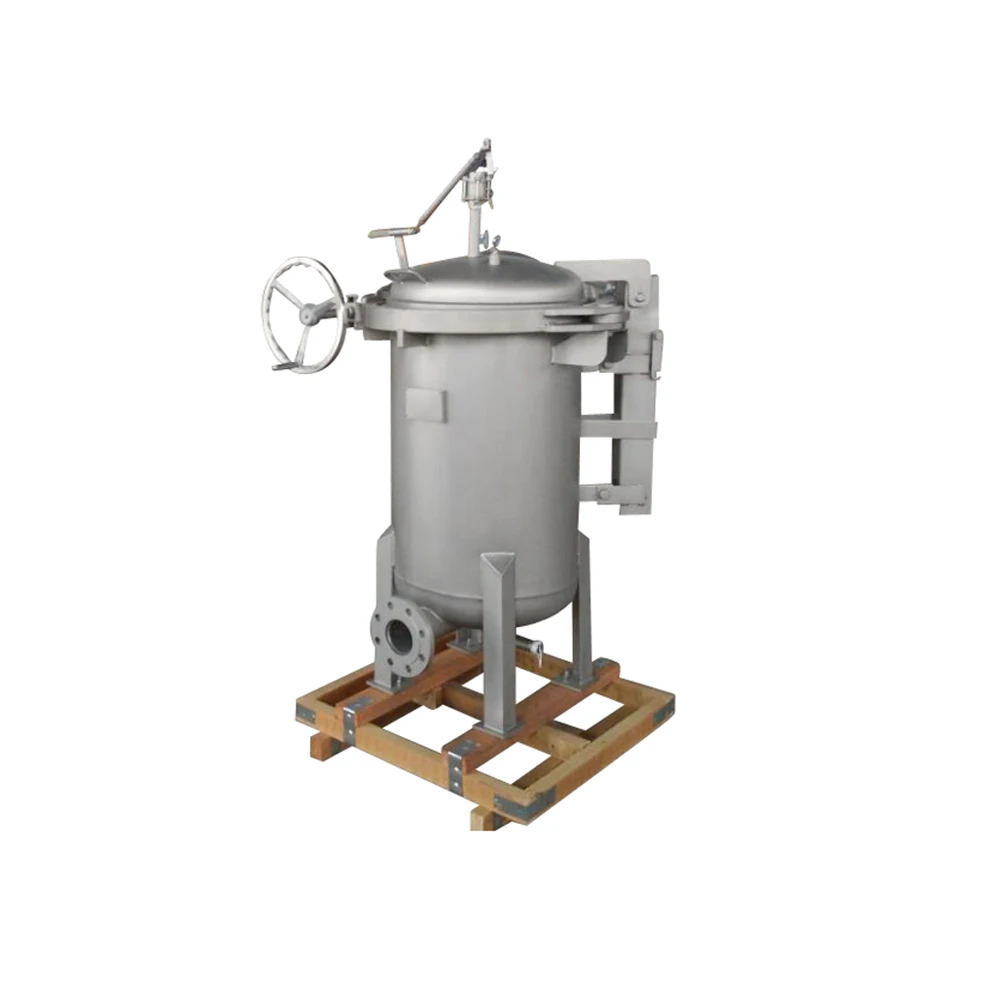

High-Flow Stainless Steel Cartridge Filter Housing for Element Layout and Pressure-Drop Review
This multi-cartridge housing is a configuration reference for industrial liquid filtration. Final selection should be based on liquid properties, required flow, allowable clean and terminal pressure drop, cartridge type and length, element quantity, operating pressure and temperature, materials, connections and maintenance access.

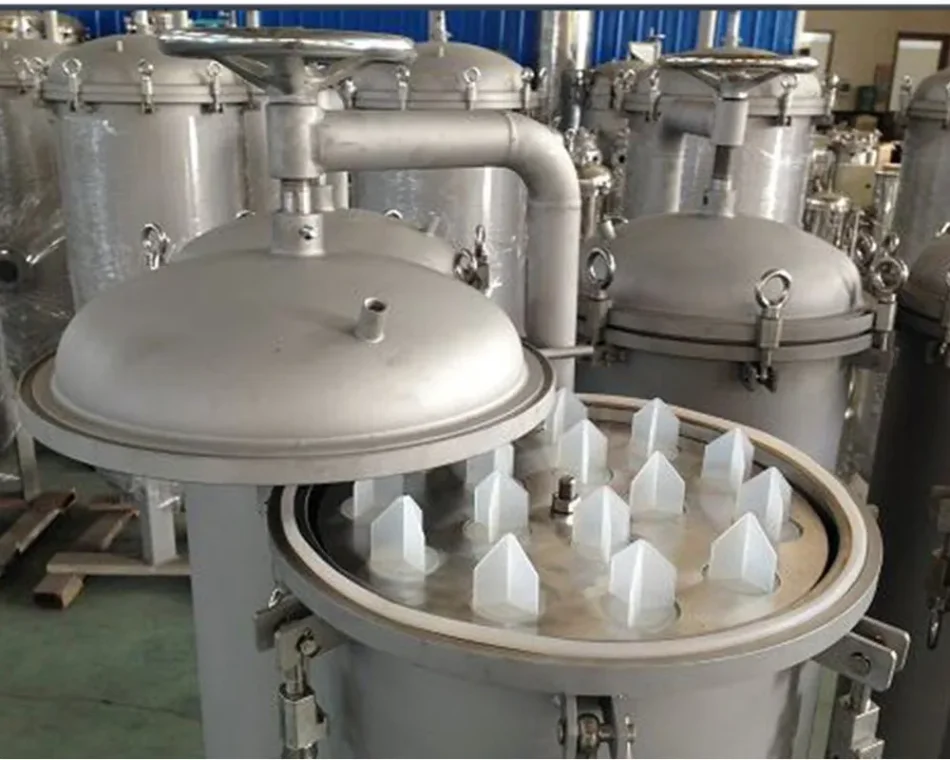

Cartridge Layout
The listed 9–100 element range should be matched to the cartridge dimensions, target flow and allowable pressure drop.
Material Selection
304L or 316L stainless steel should be confirmed against the process liquid, cleaning chemistry and site requirements.
Closure and Access
Quick-opening and assisted-lid features depend on the approved housing size, pressure class and maintenance procedure.
Connection Options
NPT or flanged connections should be selected to match the piping standard and approved layout.
Selection Information
Provide the process liquid, viscosity, solids loading, required flow, filtration rating, cartridge construction and length, pressure and temperature, allowable pressure drop, connection standard, gasket preference and installation clearance. Capacity and service interval are confirmed for the selected elements and operating conditions.
Typical Uses
Potential duties include compatible process water, coatings, chemicals, oils, food and beverage liquids and industrial cleaning fluids. Chemical compatibility and any sanitary or regulated requirement must be reviewed for each project.
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
chemical industry, automobile industry, resin, plastic, ink, paint, water treatment, electronic, metalworking, food, beverage, ships
|
|
Showroom Location
|
United States
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Core Components
|
housing support
|
|
Place of Origin
|
China
|
|
Brand Name
|
SFFILTECH
|
|
Packing Material
|
Wooden package with film
|
|
Weight
|
Depends on capacity
|
|
Size
|
Depends on capacity
|
|
Power
|
0
|
|
Productivity
|
5000L/Hour
|
|
Weight (KG)
|
800kg
|
|
Product name
|
liquid 304L 316L stainless steel cartridge filter housing
|
|
Type
|
cartridge filter, and we have filter bag housing
|
|
Advantage
|
large flow
|
|
Filter Media
|
PP, PTFE, PES, Melt-blown, string wound cartridge
|
|
Micron Rate
|
0.5 µm-600 µm
|
|
MOQ
|
1 set
|
