Description
Provides reliable and efficient high-temperature industrial filtration for various demanding environments.
Industries – High-Temp Filtration – Nomex Aramid
500gsm Aramid Needle Felt
Enhanced durability and filtration efficiency for high-temperature applications.
15-17 m³/m²/min Air Permeability
Optimized airflow for improved industrial filtration performance.
Heat Set, Singed, Calendared Finish
Ensures consistent quality and reduces particulate escape.
Operating Temperature <204°C
Withstands extreme temperatures for reliable industrial use.
Features

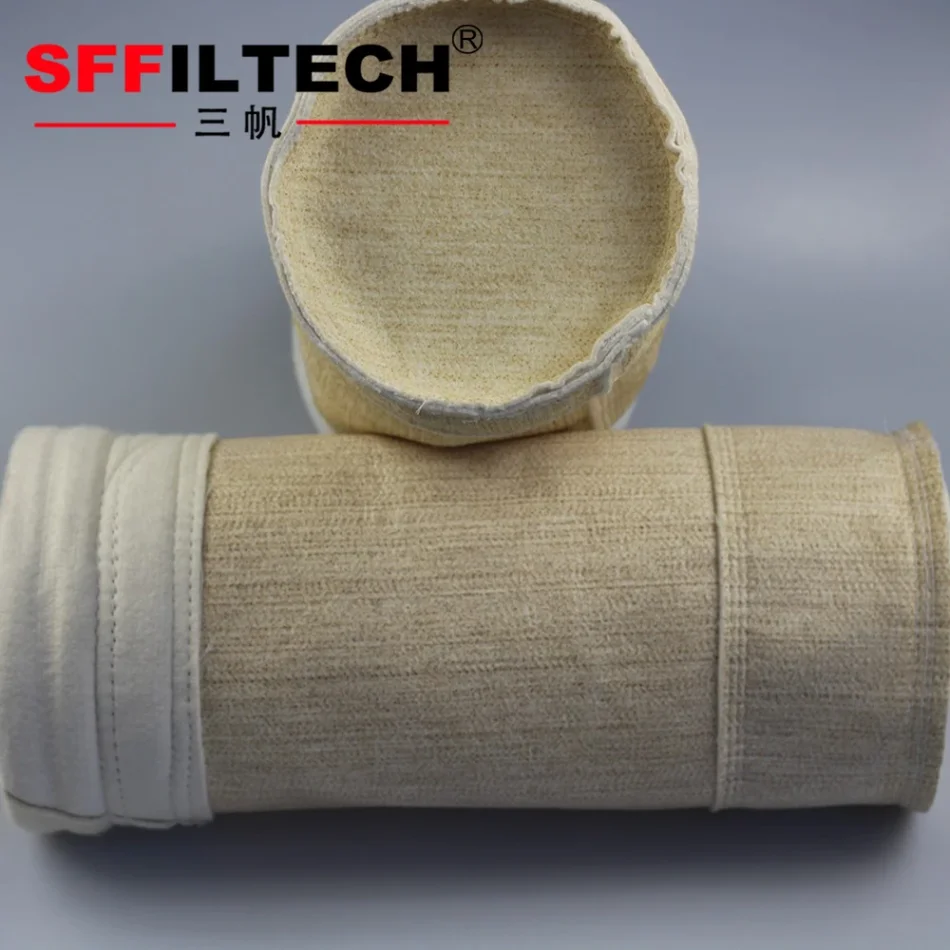

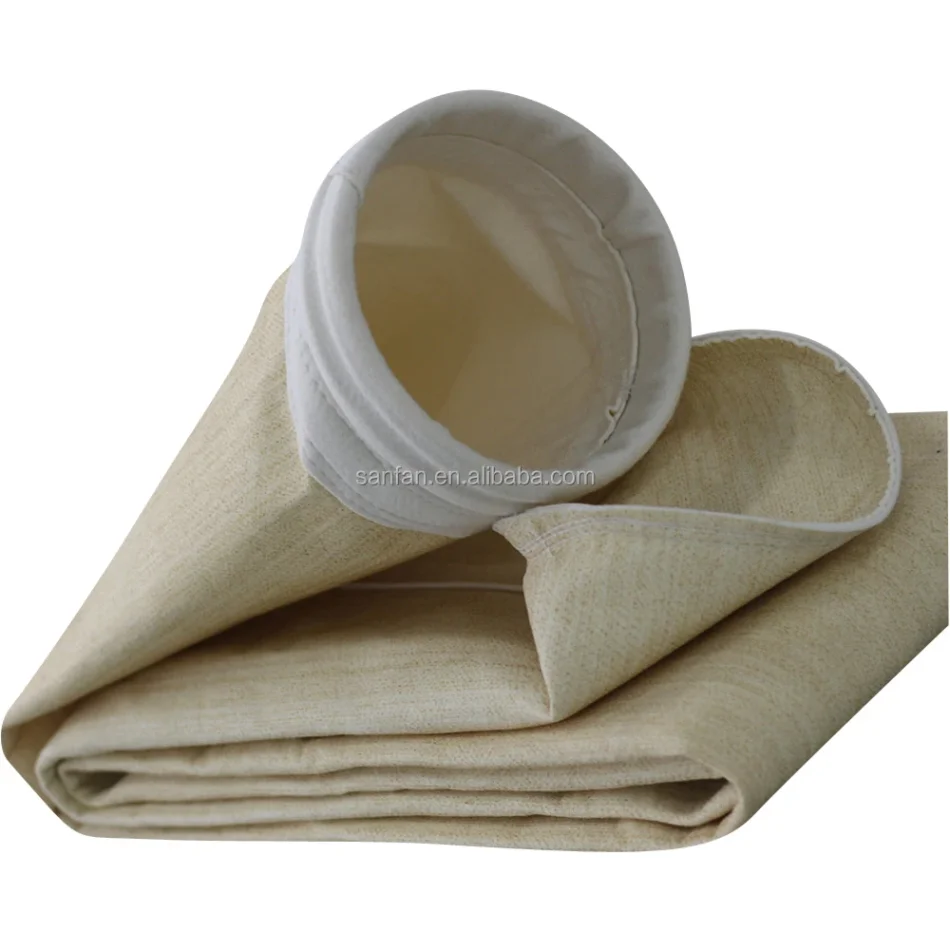

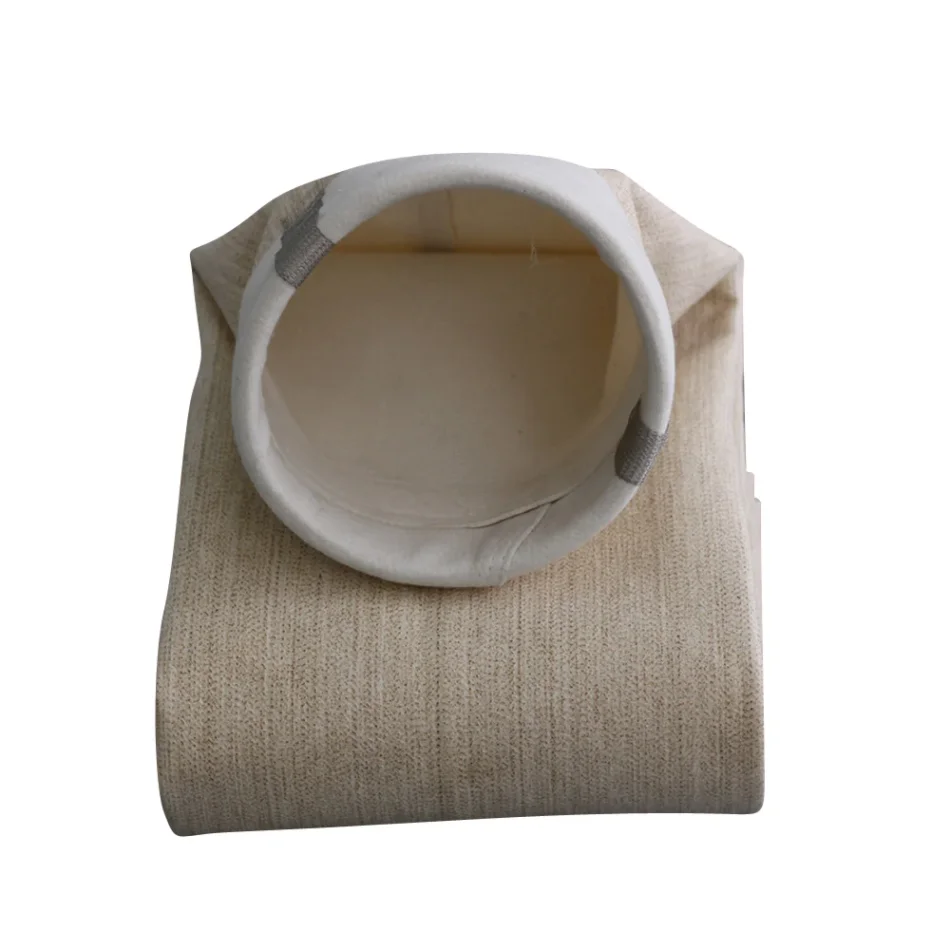

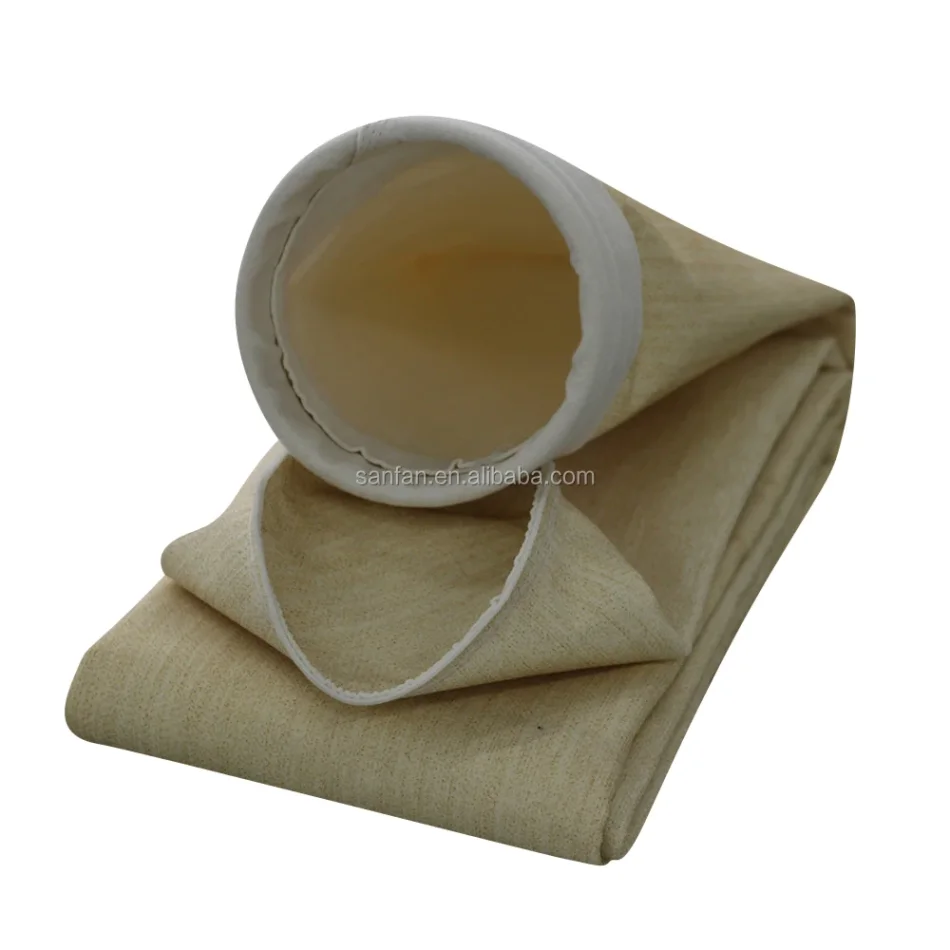

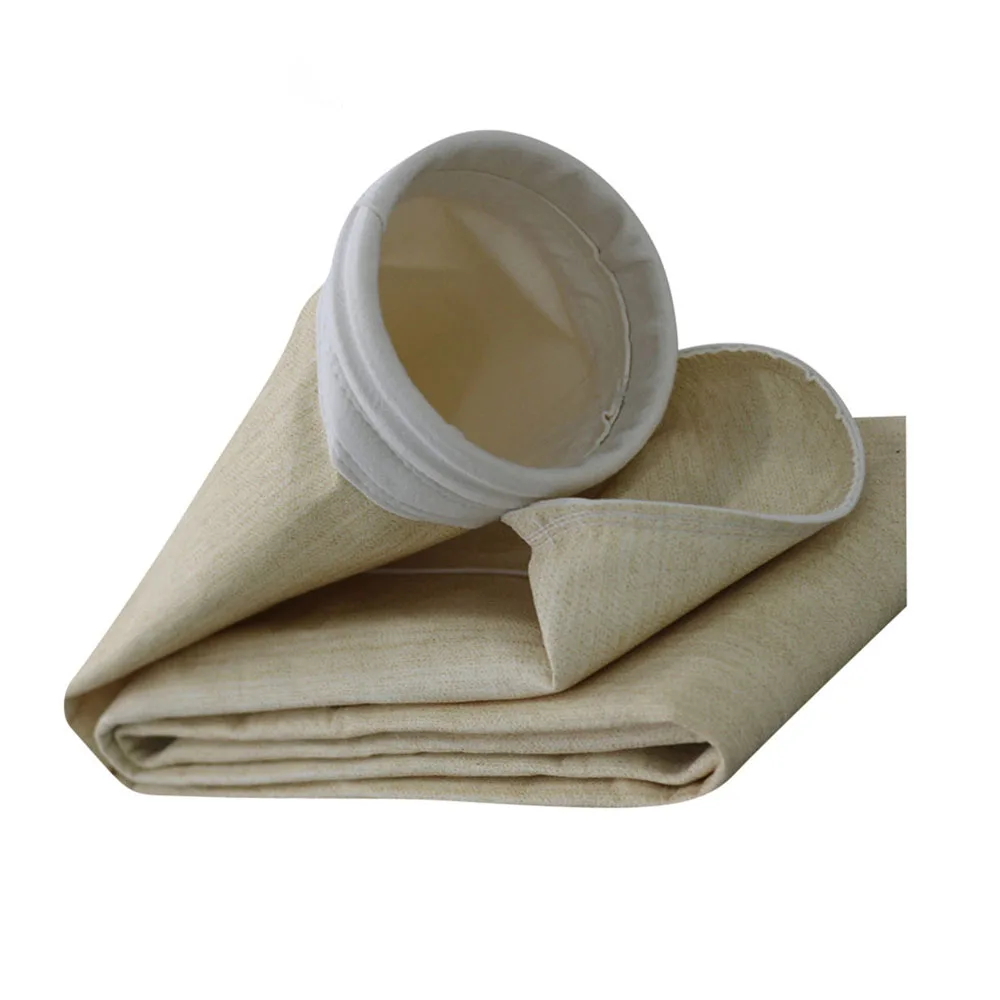

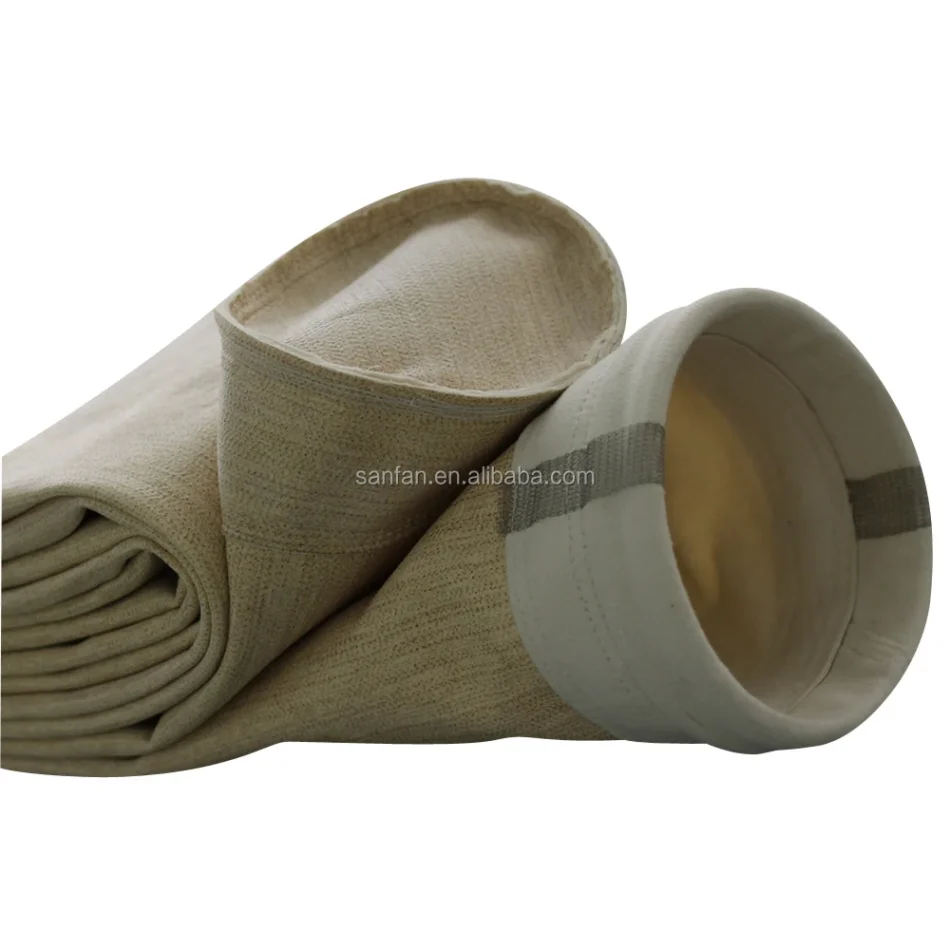

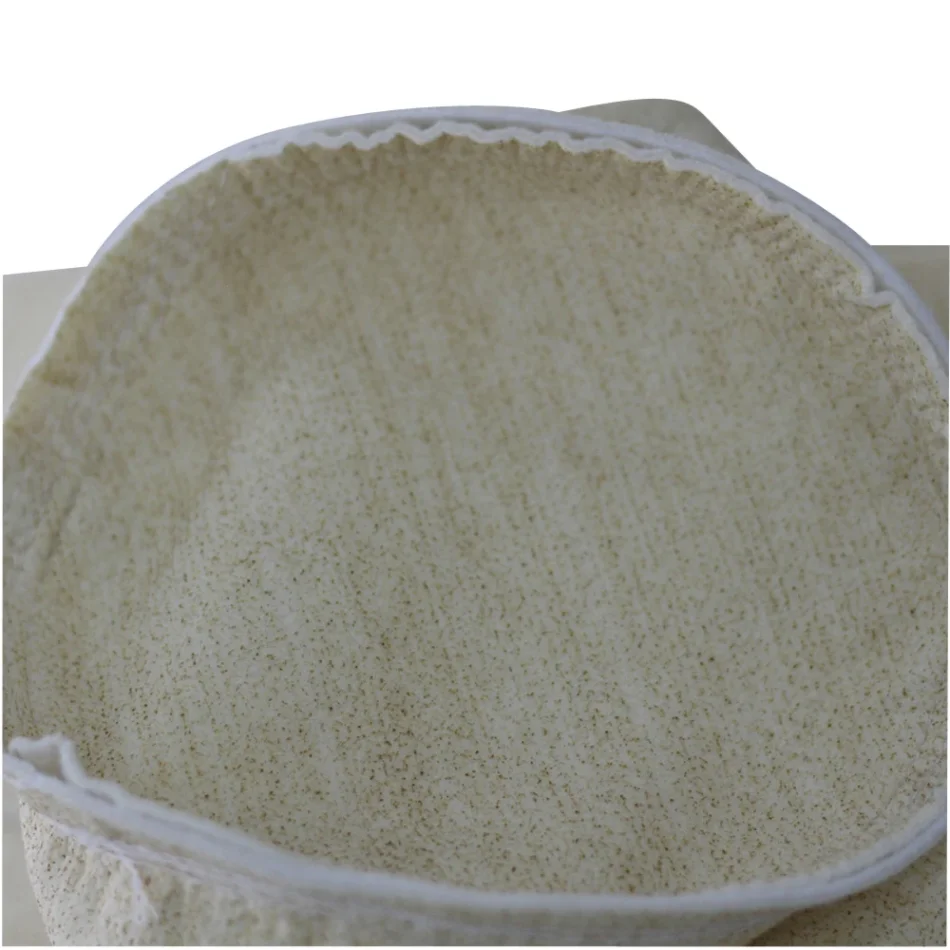

The SFFILTECH Nomex Aramid Filter Bags are crafted from 500gsm aramid needle felt, featuring a heat set, singed, and calendared finish. They have a thickness of 1.8-1.9mm and an air permeability of 15-17 m³/m²/min. The breaking strength is 900 N/5cm (warp) and 1200 N/5cm (weft), with breaking elongation of 20% (warp) and 39% (weft). The dry shrinkage is ≤1.5% for both warp and weft directions.
Benefits
These filter bags offer exceptional durability and filtration efficiency in high-temperature environments. Their optimized air permeability ensures consistent performance, while the heat-treated finish minimizes particulate escape. The high breaking strength and low elongation provide long-lasting reliability, reducing the need for frequent replacements and maintenance.
Applications
Ideal for biomass power stations, chemical and pharmaceutical industries, high-temperature dedusting, coal-fired power stations, food industry, non-ferrous metal and steel production, cement, gypsum, and lime industry, as well as thermal waste treatment. These filter bags excel in environments where high temperatures and demanding filtration requirements are common.
|
Item
|
500gsm aramid filter felt
|
|
Construction
|
Needle felt
|
|
Fibre Composition
|
aramid
|
|
Scrim Composition
|
aramid
|
|
Felt Area Weight
|
500g/m2(±5%)
|
|
Thickness
|
1.8-1.9mm
|
|
15-17Mean Air Permeability
|
15-17 (m³/m²/min)
|
|
Breaking Strength-MD（warp）
|
900 N / 5cm
|
|
Breaking Strength-CMD（weft）
|
1200 N / 5cm
|
|
Breaking Elongation( N/5cm)-MD（warp）
|
20%
|
|
Breaking Elongation( N/5cm)-CMD（weft）
|
39%
|
|
Dry Shrinkage MD（130℃warp）
|
＜1.5%
|
|
Dry Shrinkage CMD（130℃weft）
|
＜1.5 %
|
|
Operating Temperatures
|
<204 deg C
|
|
Recommended Maximum Continuous
|
240deg C
|
|
Recommended Maximum Surge
|
240deg C
|
|
Finish
|
Heat set, singed, calendared membrane
|
|
