Description

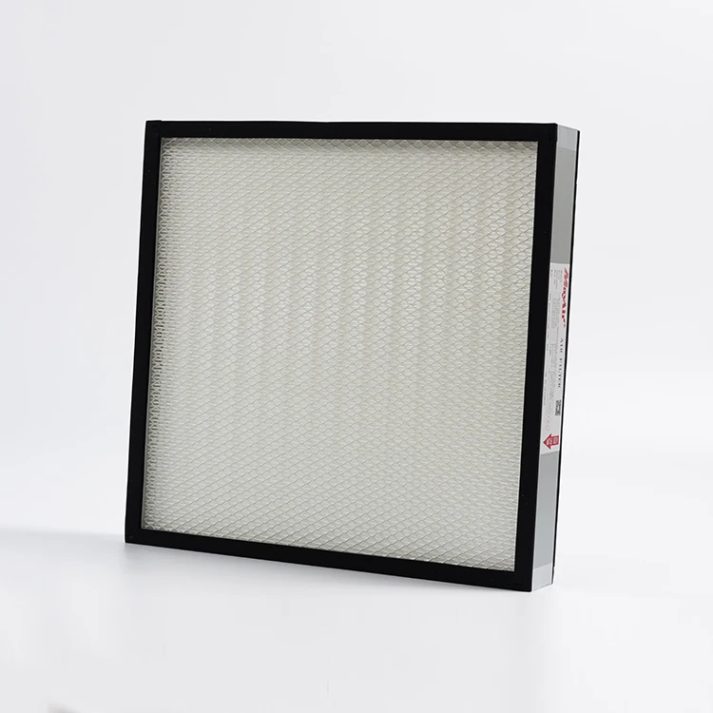

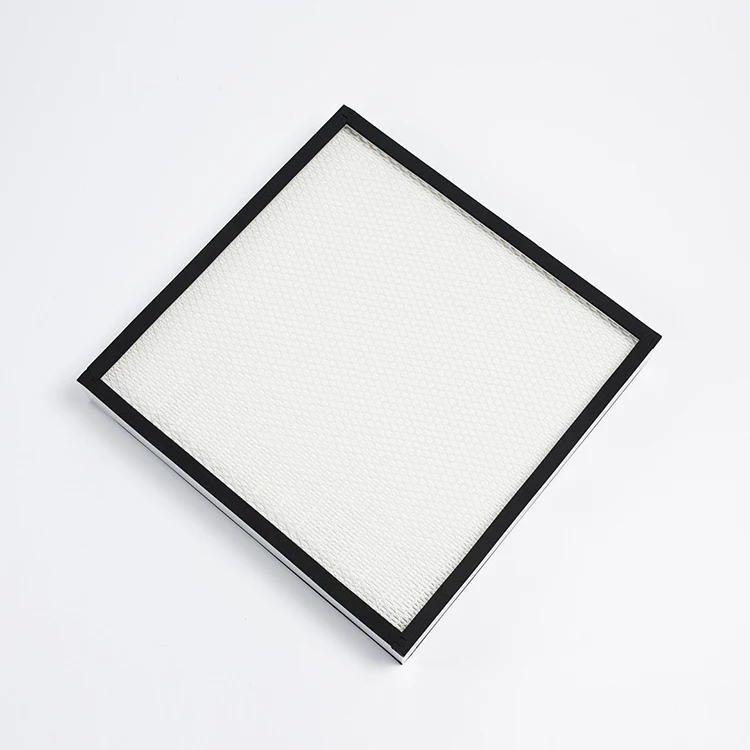

Mini-Pleat Cleanroom HEPA Filter Replacement Matching
This mini-pleat filter is available for cleanroom final-filtration applications. The 0.3 µm reference in the existing product name does not by itself define a HEPA class; the required H13 or H14 grade should be confirmed from the applicable EN 1822 or ISO 29463 test result.
Selection information
- Exact width, height and depth
- Required H13 or H14 class and test documentation
- Rated airflow and acceptable initial pressure drop

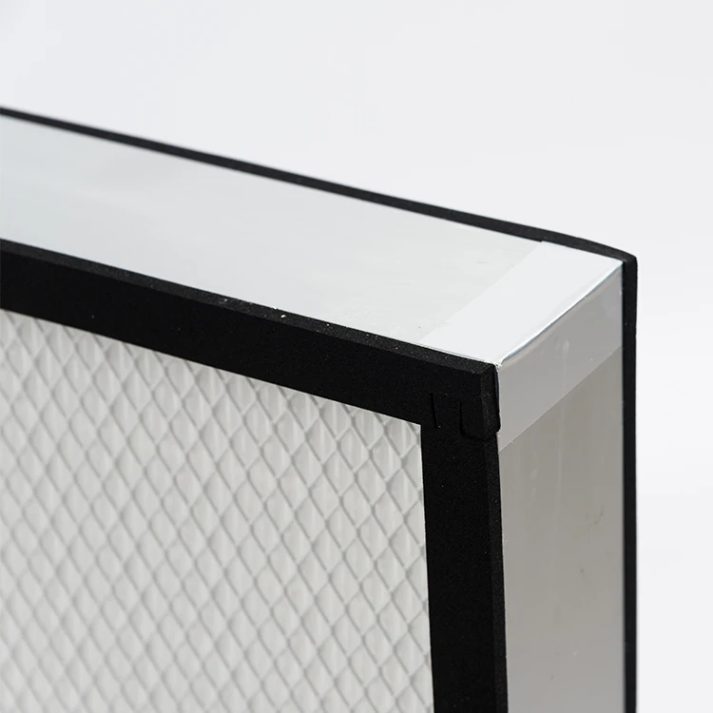

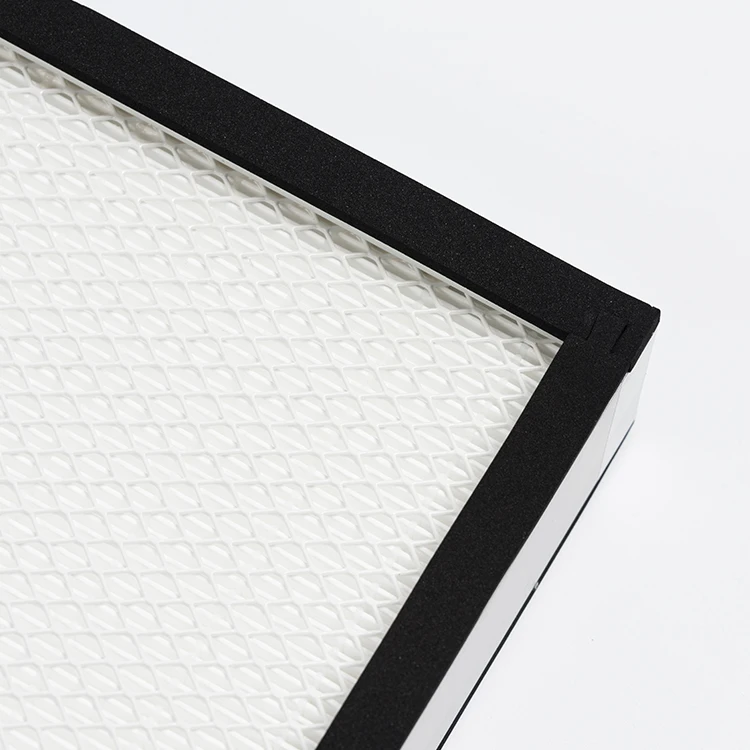

- Frame, seal, media pack and installation arrangement
- Operating temperature, humidity and chemical exposure
The performance values below apply only to the listed configurations and remain subject to final technical confirmation. Pleat count, pressure drop and service life vary with filter construction and system conditions.
Review replacement HEPA options or send a label, drawing or photo for U.S. specification matching.
|
W*H*D (mm) |
Area (m2) |
Efficiency |
Airflow(CMH) |
Initial Pressure(Pa) |
Airflow (CMH) |
Initial Pressure (Pa) |
|
600*600*150 |
10.60 |
H13 |
450 |
85 |
580 |
110 |
|
H14 |
95 |
125 |
||||
|
610*610*150 |
10.97 |
H13 |
465 |
85 |
600 |
110 |
|
H14 |
95 |
125 |
||||
|
1170*570*150 |
20.08 |
H13 |
840 |
85 |
1080 |
110 |
|
H14 |
95 |
125 |
||||
|
1210*610*150 |
21.88 |
H13 |
915 |
85 |
1175 |
110 |
|
H14 |
95 |
125 |
||||
|
1220*610*150 |
22.46 |
H13 |
935 |
85 |
1205 |
110 |
|
H14 |
95 |
125 |
||||
|
Recommended final pressure: 2 to 3 times of initial pressure drop. (Pressure range ±15%) |
||||||
