Description
Provide high-efficiency air filtration to ensure clean and safe industrial environments.
Industries – Achieve Clean Air with HEPA Filters
Galvanized/Aluminum/Stainless Steel Frame
Enhanced durability and corrosion resistance, suitable for various industrial settings.
Special Glass Fiber Paper Media
High dust-holding capacity and low initial resistance, ensuring efficient air filtration.
Multiple Efficiency Levels (H10-H14)
Meets different industrial filtration requirements, providing flexible solutions.
Wide Temperature Range (90°C to 120°C)
Suitable for high-temperature industrial environments, ensuring stable performance.
DIN53834 Non-flammability Standard F1
Enhanced safety in industrial settings, reducing fire risks.
Features
Our HEPA air filters feature a variety of frame materials including galvanized, aluminum, and stainless steel, ensuring durability and corrosion resistance. The special glass fiber paper media provides high dust-holding capacity and low initial resistance, making it highly efficient for air filtration. With multiple efficiency levels (H10-H14), these filters meet different industrial filtration requirements. They also operate effectively within a wide temperature range (90°C to 120°C) and comply with the DIN53834 Non-flammability Standard F1.
Benefits
By using our HEPA air filters, industries can achieve clean and safe air environments, reducing the risk of airborne contaminants affecting production processes and employee health. The high dust-holding capacity and low initial resistance ensure efficient air filtration, reducing energy consumption and maintenance costs. The multiple efficiency levels provide flexible solutions for different industrial applications, while the wide temperature range and non-flammability standard enhance safety and reliability.
Use Cases
Our HEPA air filters are ideal for electronics manufacturing, pharmaceutical industry, hospitals, and any other industrial settings requiring high cleanliness terminal filtration. They effectively remove airborne particles, ensuring a clean and safe working environment. In electronics manufacturing, they prevent dust and contaminants from affecting product quality. In the pharmaceutical industry, they ensure sterile conditions for production. In hospitals, they provide clean air for patient care areas, reducing the risk of infections.
|
Frame
|
Galvanized frame,aluminum frame,stainless steel frame.
|
|

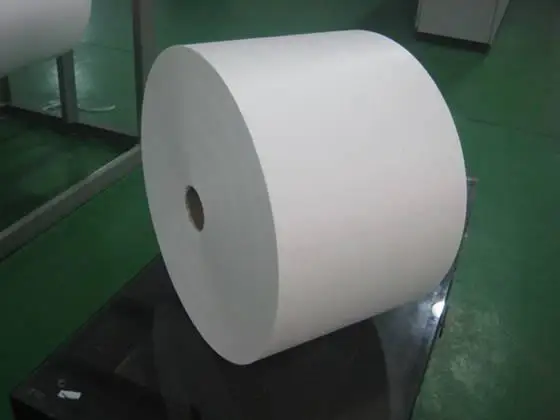

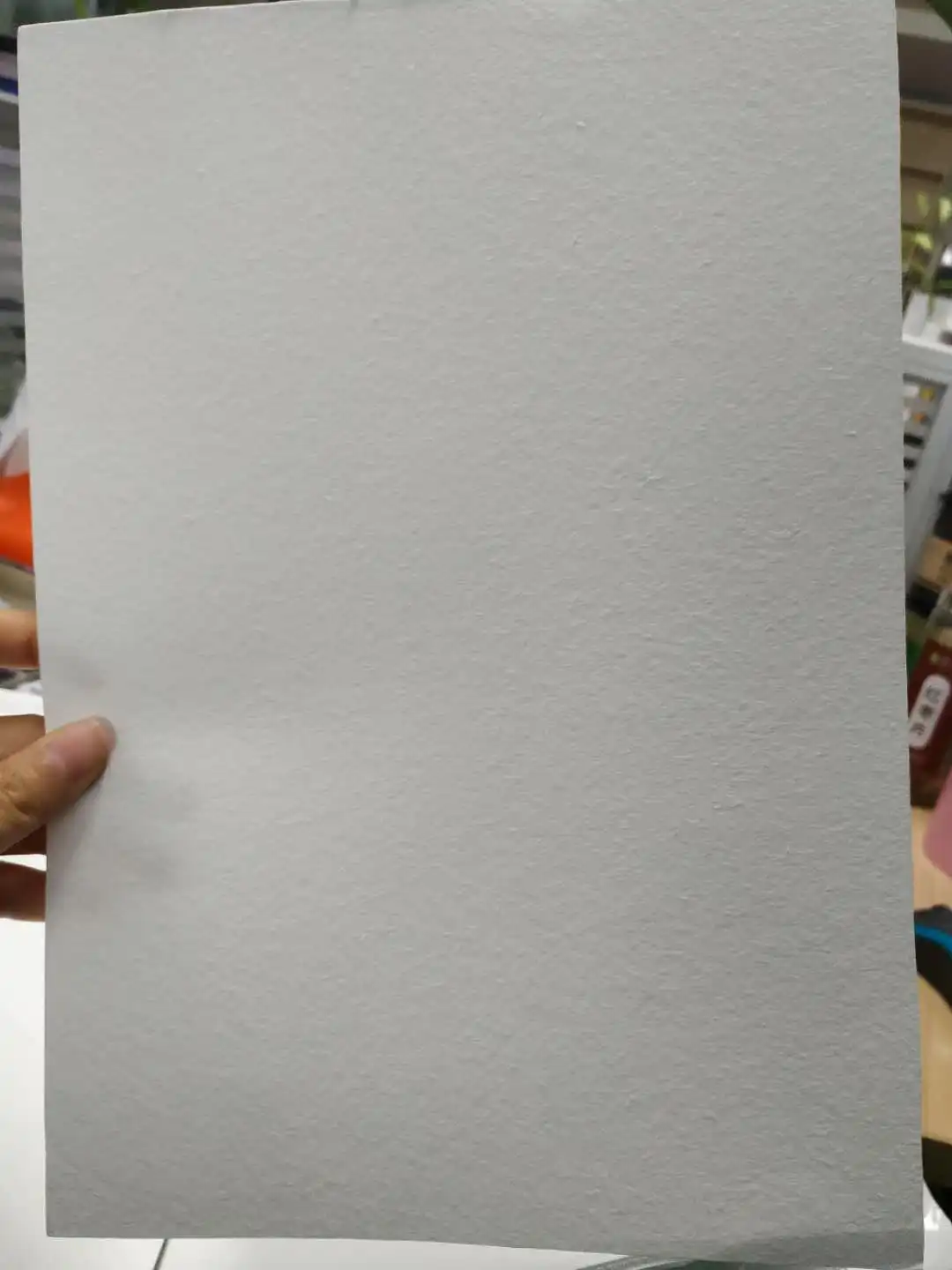

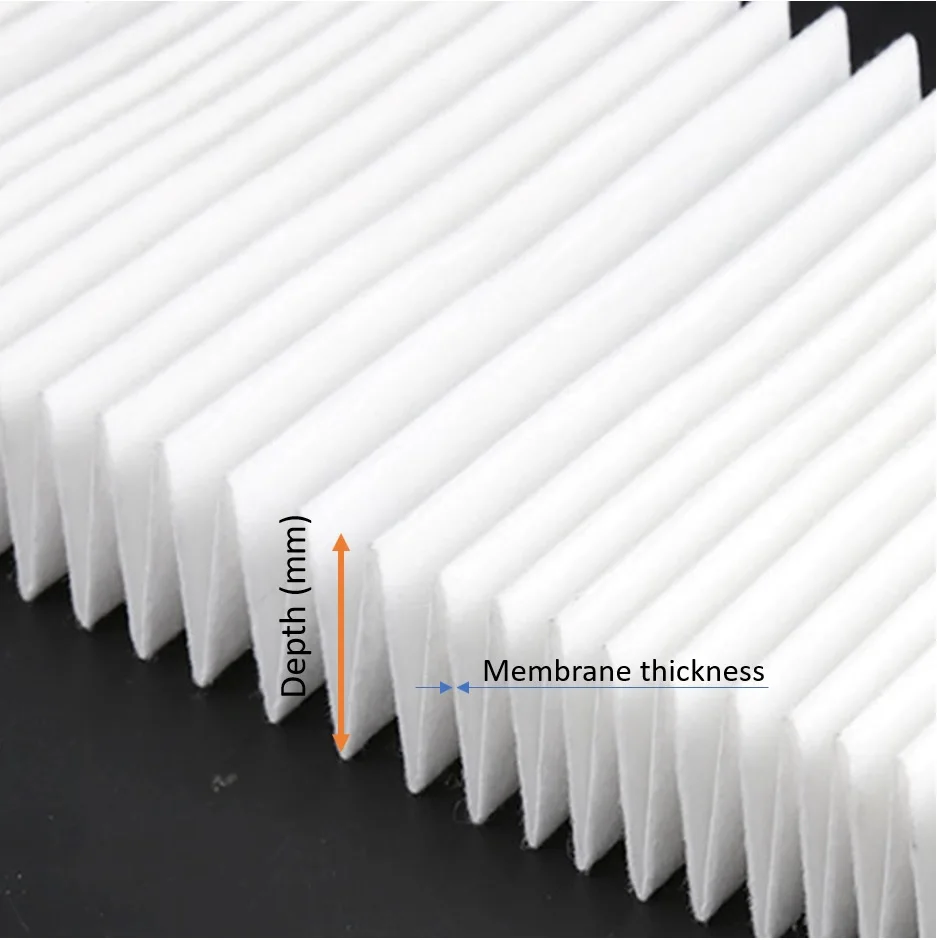

Media
|
Using special glass fiber paper as the filter material high dust-holding capacity,low initial resistance.
|
|
Efficiency
|
(EN779:2002) H10,H11,H12,H13,H14
|
|
Recommended final pressure drop
|
450pa
|
|
Temperature
|
90 ℃ to 120℃
|
|
DIN53834 Non-flammability Standard
|
F1
|
|
Model
|
Dimensions
|
Media area(㎡)
|
Face Velocity
|
Rated flow(㎡)
|
Initial pressure drop()pa
|
||||||
|
W*H*D
|
W*H*D(㎡)
|
㎡
|
m/s
|
Standard
|
rated air flow
|
H13
|
H14
|
H15
|
|||
|
SHH610/03-50
|
305*305*50
|
1.6
|
0.5
|
150
|
525
|
≤190 ≤25 ≤280
|
|||||
|
SHH610/05-50
|
305*610*50
|
3.3
|
0.5
|
300
|
1500
|
||||||
|
SHH610/10-50
|
610*610*50
|
6.7
|
0.5
|
600
|
2250
|
||||||
|
SHH610/15-50
|
915*610*50
|
10.1
|
0.5
|
900
|
3000
|
||||||
|
SHH610/20-50
|
1220*610*50
|
13.5
|
0.5
|
1200
|
1200
|
||||||
|
SHH610/03-70
|
305*305*70
|
2.7
|
0.75
|
250
|
2250
|
||||||
|
SHH610/05-70
|
305*610*70
|
5.5
|
0.75
|
500
|
3300
|
||||||
|
SHH610/10-70
|
610*610*70
|
11.3
|
0.75
|
1000
|
4500
|
||||||
|
SHH610/15-70
|
915*610*70
|
17.0
|
0.75
|
1500
|
375
|
||||||
|
SHH610/20-70
|
1220*610*70
|
22.7
|
0.75
|
2000
|
750
|
||||||
|
SHH610/03-90
|
305*305*90
|
3.7
|
1.0
|
320
|
1500
|
||||||
|
SHH610/05-90
|
305*610*90
|
7.5
|
1.0
|
650
|
2250
|
||||||
|
SHH610/10-90
|
610*610*90
|
15.4
|
1.0
|
1300
|
3000
|
||||||
|
SHH610/15-90
|
915*610*90
|
23.2
|
1.0
|
2000
|
1500
|
||||||
|
SHH610/20-90
|
1220*610*90
|
31.1
|
1.0
|
2600
|
3000
|
||||||
