Description
Maximize filtration efficiency and durability in industrial settings with our premium filtration bags.
Industries – Eliminate Dust Efficiently – Premium Filtration
High-Temperature Stability
Withstands up to 130°C continuously, ensuring reliable performance in extreme heat conditions.
Superior Chemical Resistance
Resists acids, alkalis, and various chemicals, extending bag lifespan and reducing replacement frequency.
Customizable Specifications
Tailor-made diameters, lengths, and weights to fit specific filtration systems and requirements.
Easy Maintenance
Designed for hassle-free cleaning and maintenance, enhancing operational convenience and efficiency.

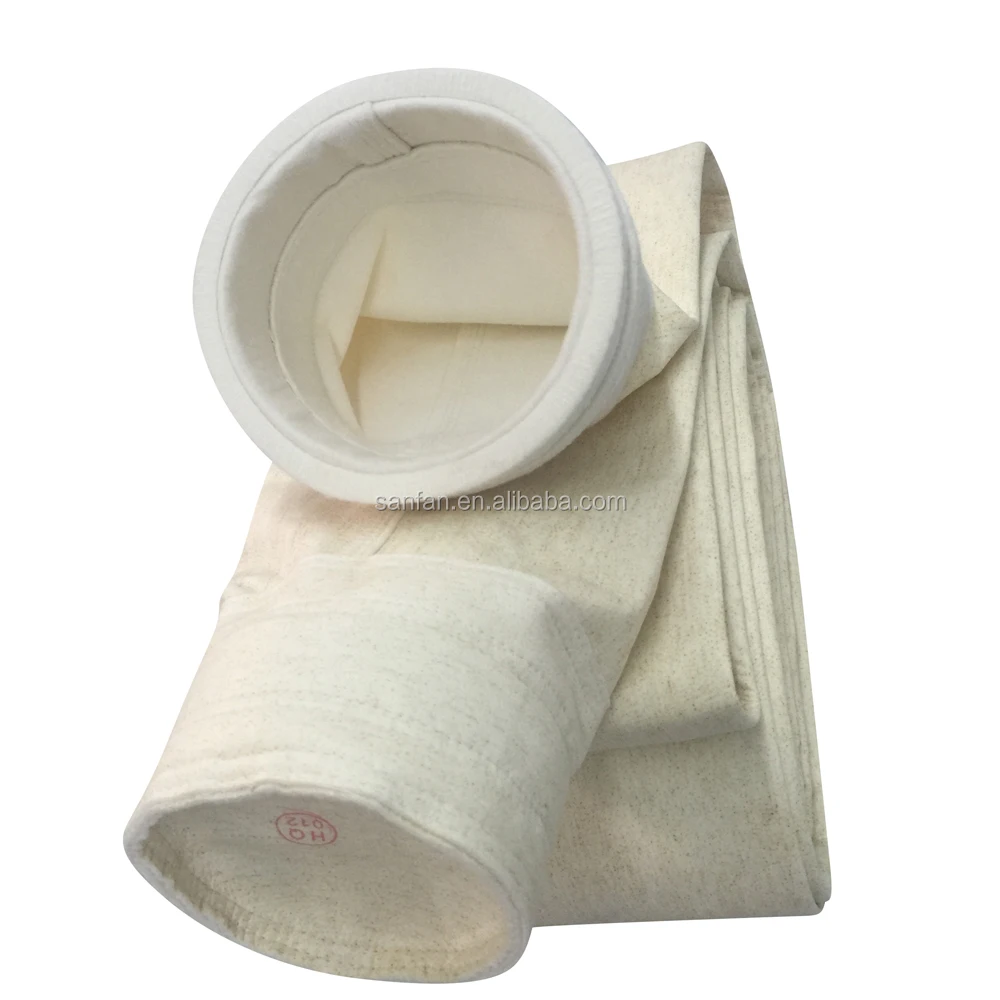

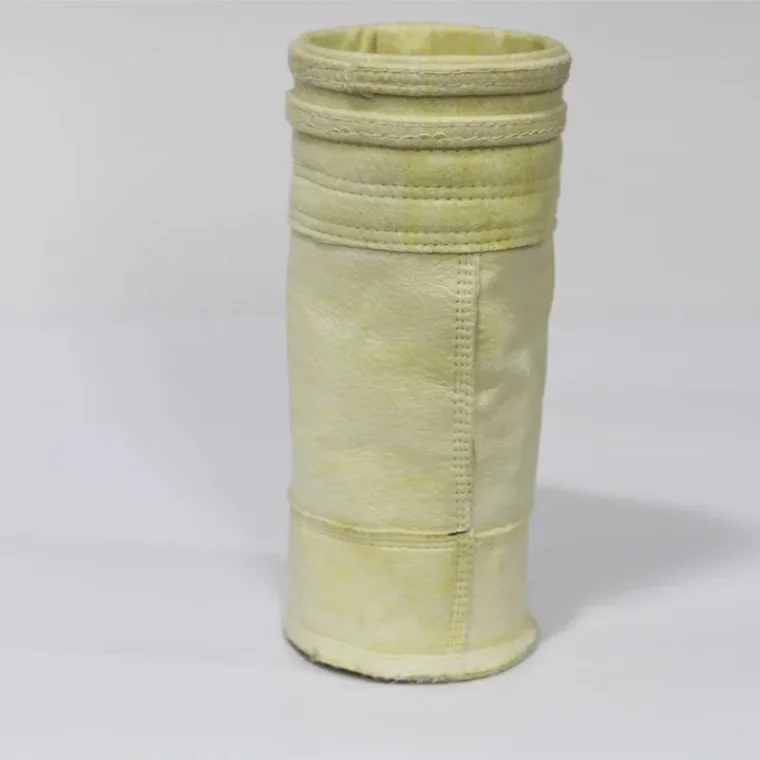

Features

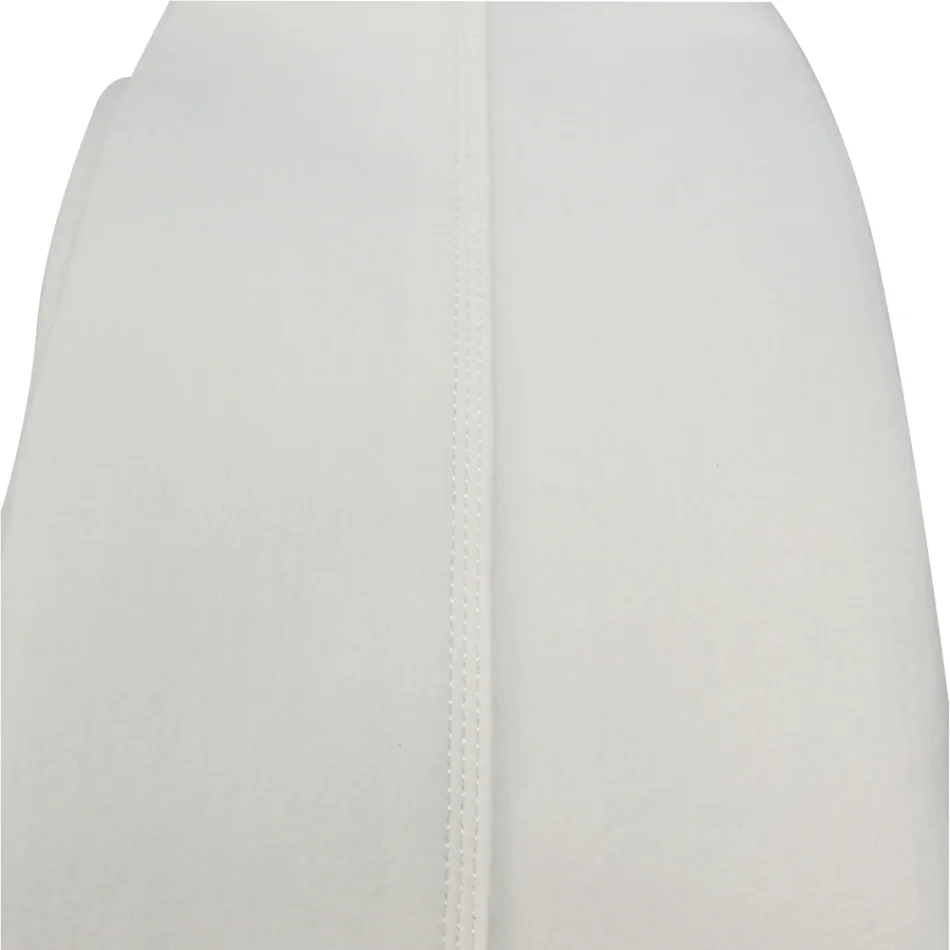

Our filtration bags are crafted from 100% filament polyester fiber, ensuring high filtration performance. They undergo a rigorous manufacturing process, including needling, singeing, heat setting, and rolling, to produce durable polyester felt. These bags are then expertly sewn to create a robust filtration solution.
Benefits
Experience unparalleled filtration efficiency with our bags, capturing tiny particles and maintaining a clean production environment. Their excellent chemical resistance and dimensional stability ensure consistent performance across various working conditions. Additionally, their cost-effectiveness provides a significant advantage over other filtration materials.
Use Cases
Our filtration bags are widely used in industrial settings, including cement production, steel manufacturing, power generation, chemical processing, food and beverage production, mining operations, woodworking, textile manufacturing, recycling facilities, plastics production, and automotive industries. They are specifically designed for use in dust collection systems, air pollution control equipment, and liquid filtration processes, ensuring optimal air quality and efficient industrial processes.
|
physical and mechanical properties of polyester filter bags
|
||
|
Item
|

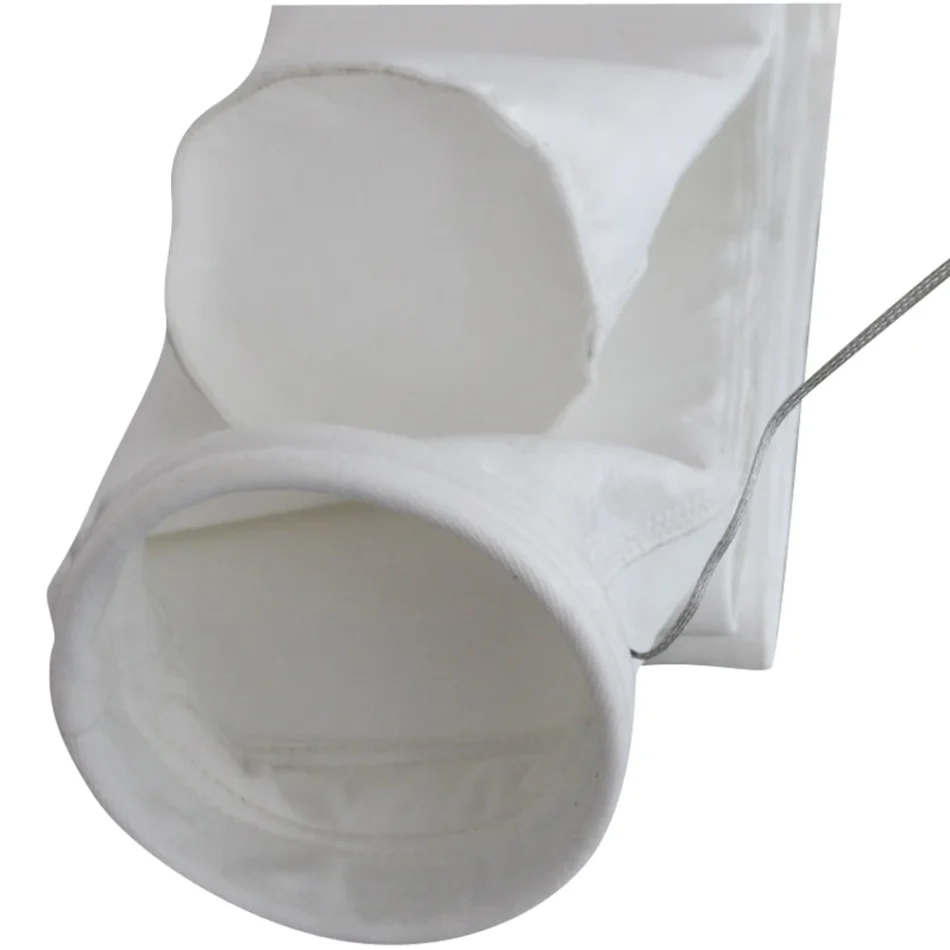

Industry Polyester Dust Collector Filter Bag
|
|
|
Construction
|
Needle Polyester Felt
|
|
|
Fibre Composition
|
Polyester Fibre
|
|
|
Weight
|
350gsm, 400gsm, 450gsm, 500GSM, 550GSM, 600gsm or OEM/ODM
|
|
|
Thickness
|
1.8-1.9mm
|
|
|
Mean Air Permeability
|
10-15 m3/m2/min@12.7mmH2O
|
|
|
Breaking Strength-MD(warp)
|
900 N / 5cm
|
|
|
Breaking Strength-CMD(weft)
|
1300 N / 5cm
|
|
|
Breaking Elongation( N/5cm)-MD(warp)
|
20%
|
|
|
Breaking Elongation( N/5cm)-CMD(weft)
|
40%
|
|
|
Dry Shrinkage MD（130℃(warp)
|
＜1.5 %
|
|
|
Dry Shrinkage CMD（130℃(weft)
|
＜1.5 %
|
|
|
Continuous Temperature
|
＜130 Degree
|
|
|
Recommended Maximum Surge
|
150 deg C
|
|
|
Normal Finishing
|
Singeing, Calendering, Heat set
|
|
|
Functional Finishing
|
anti-static, water and oil repellent, PTFE membrance
|
|
|
Feature
|
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
|
|
|
Application
|
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, food processing industry.
|
|
|
conventional size and weight parameters of polyester filter bags
|
||||
|

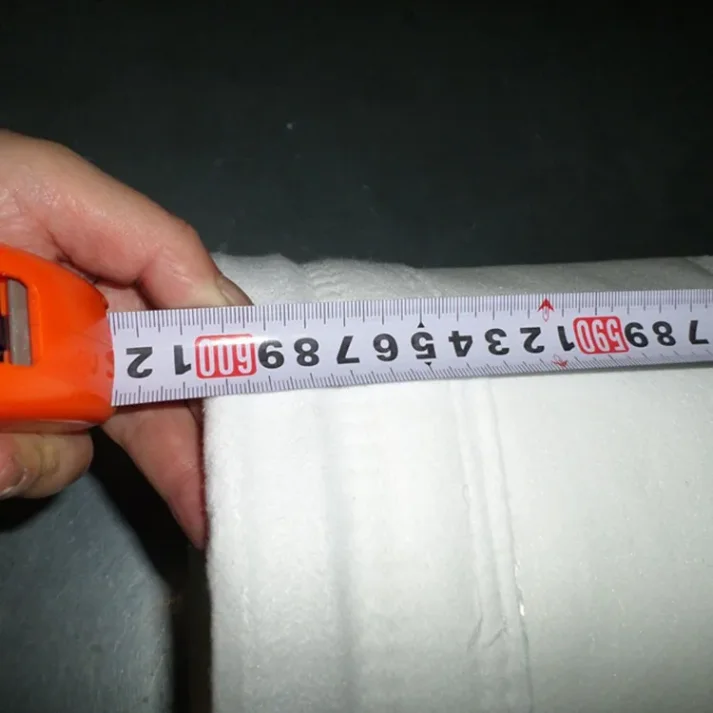

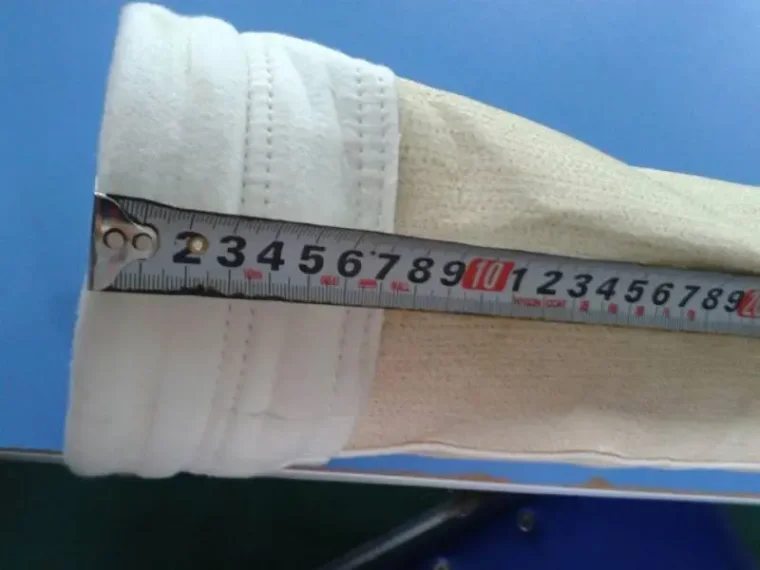

Diameter (mm)
|
Length (mm)
|
Weight (g/㎡)
|
||
|
120、130、133、155、180、200、250、292、300
|
1000、1500、2000、2400、25000、2480、2800、3000、3200、3600、4000、4400、5000、6000、8000
|
350, 400, 450, 500, 550, 600
|
||
|
Most commonly used dimensions
|
133mm*1500mm、133mm*2000mm、133mm*2500mm
|
|||
|
Most commonly used weight
|
450g, 500g
|
|||
|
We can customize diameter, length, and weight for you
|
||||
|

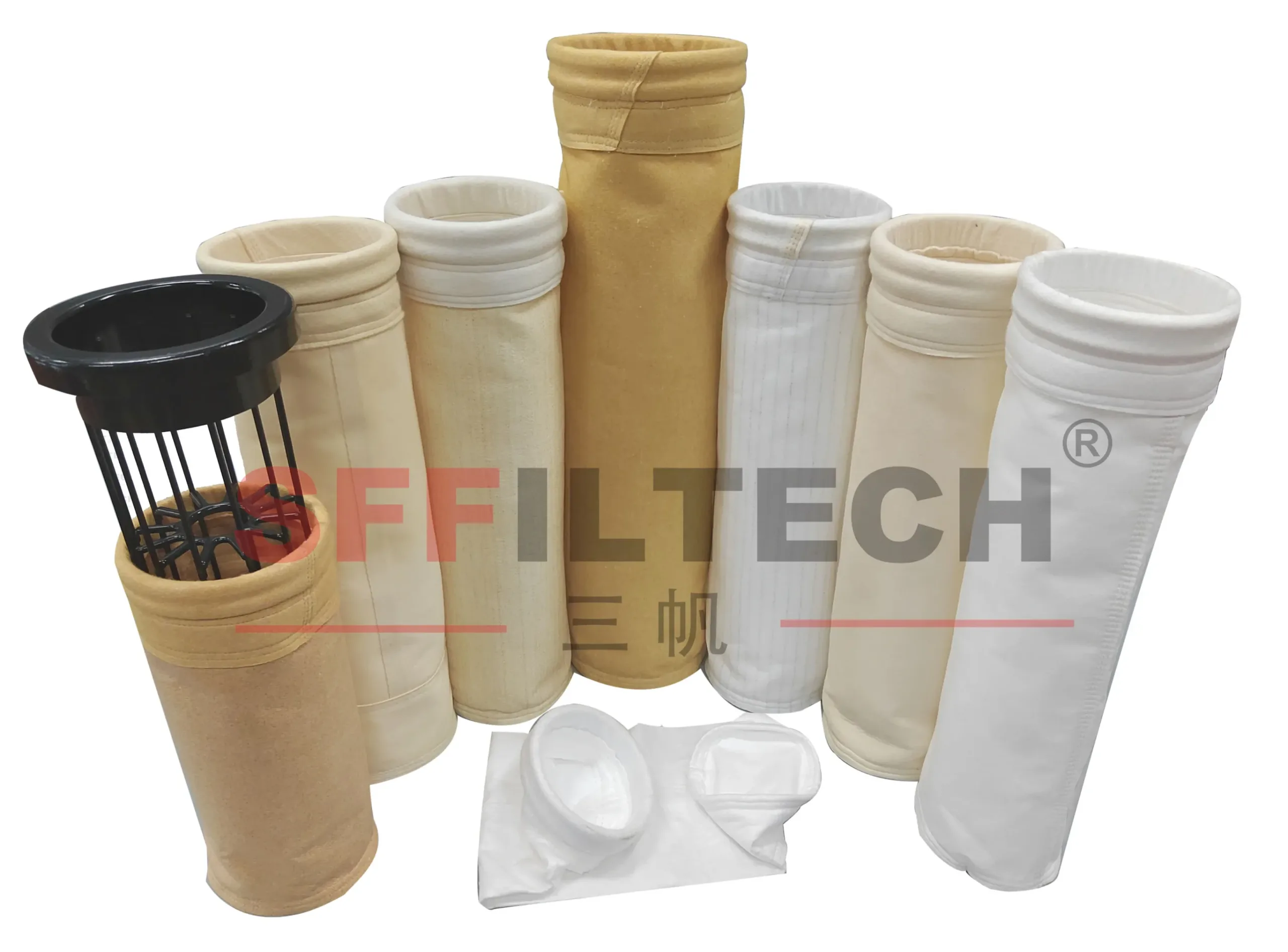

Classified according to polyester filter bag material and process
|
||
|

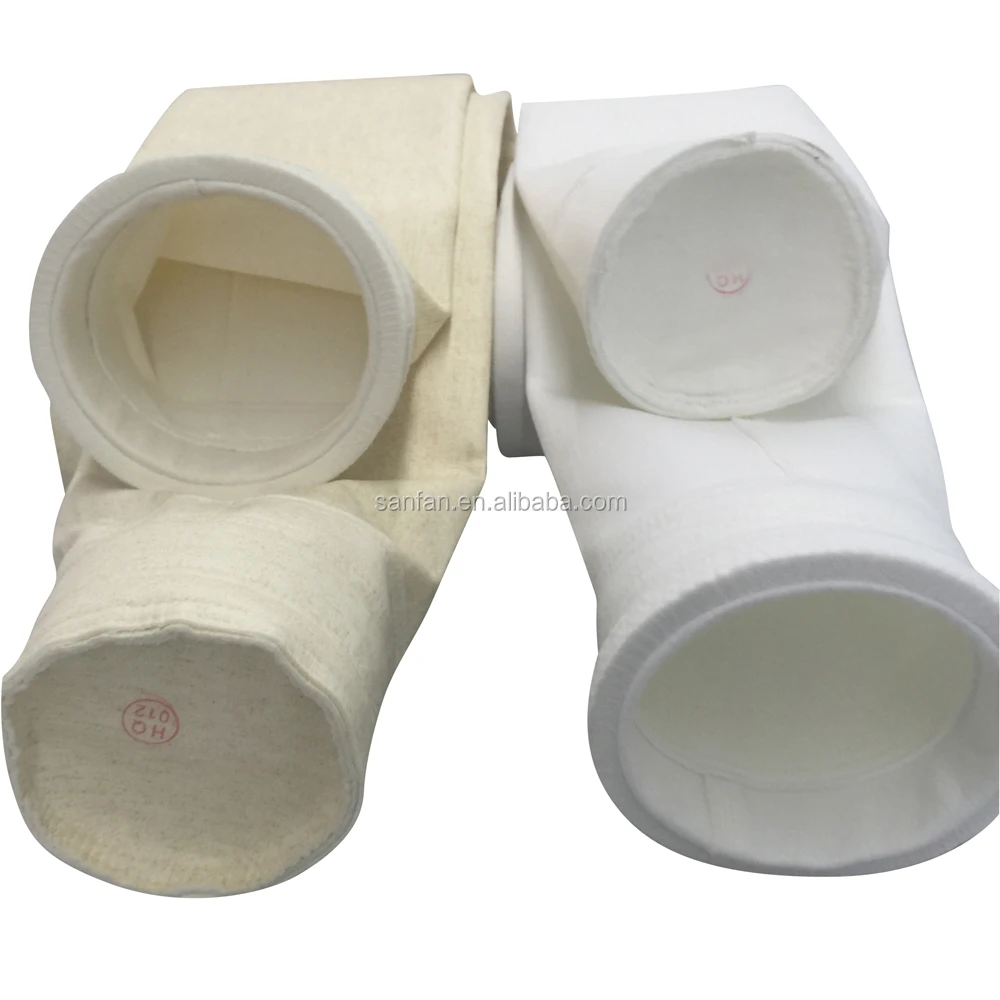

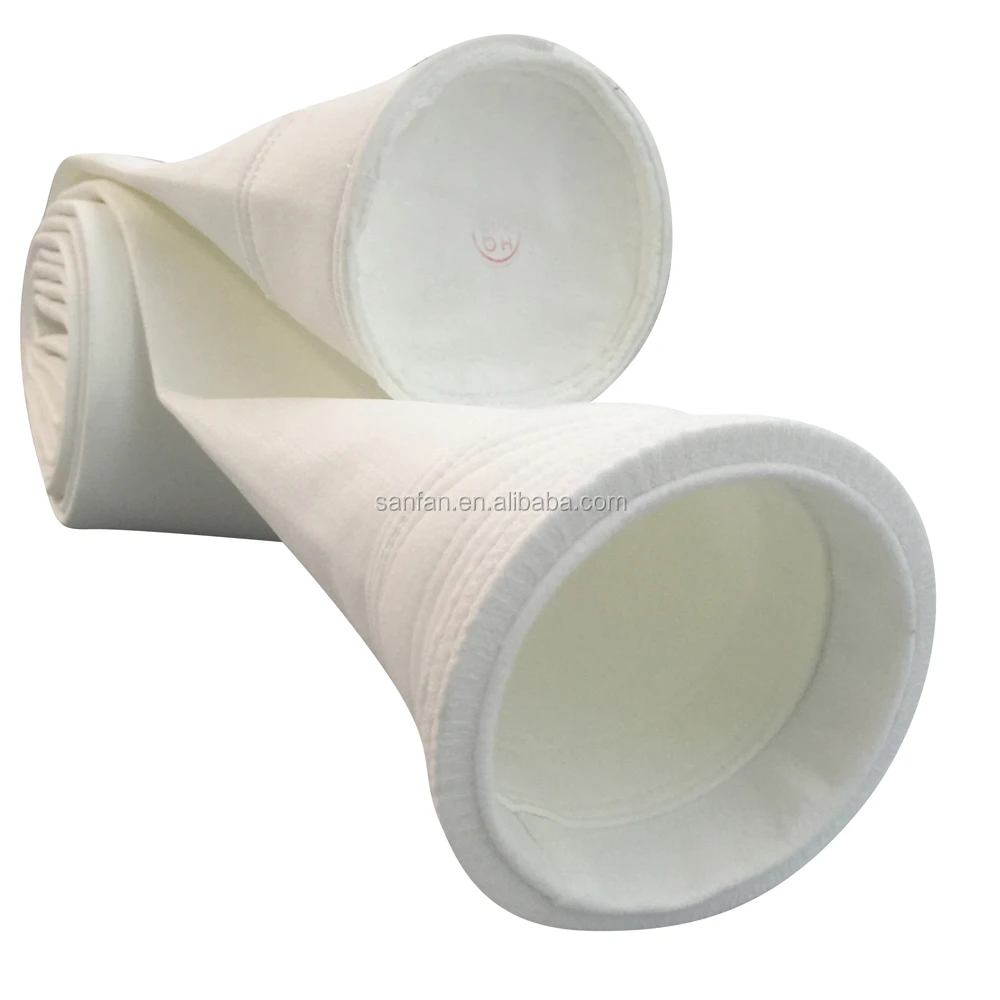

Standard Polyester Filter Bags:
|
This is the most common type of polyester filter bag, suitable for general industrial filtration needs. They exhibit excellent
high-temperature resistance and chemical stability. |
|
|

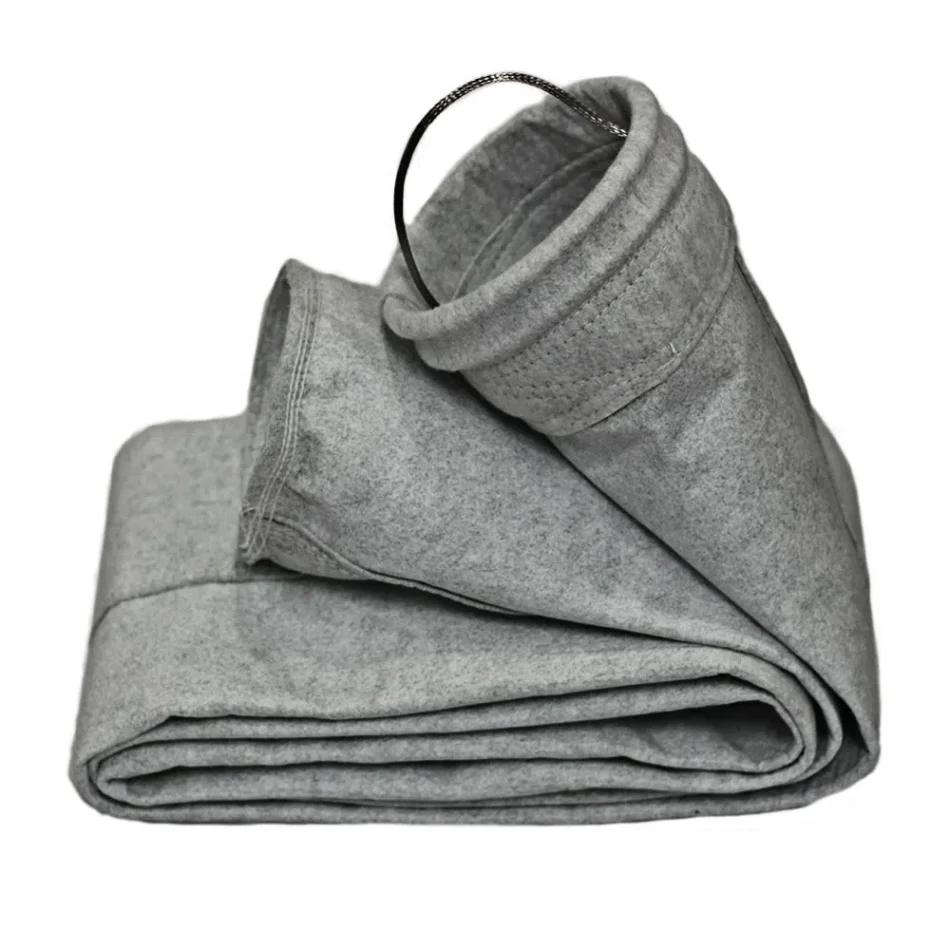

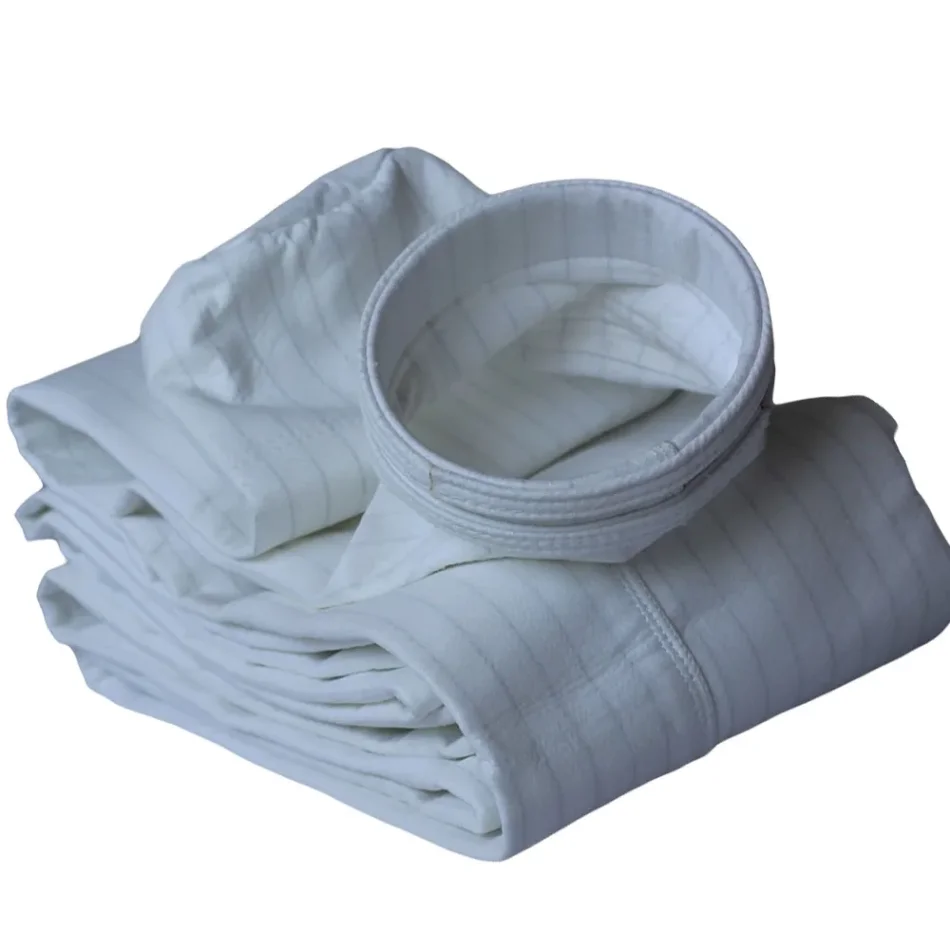

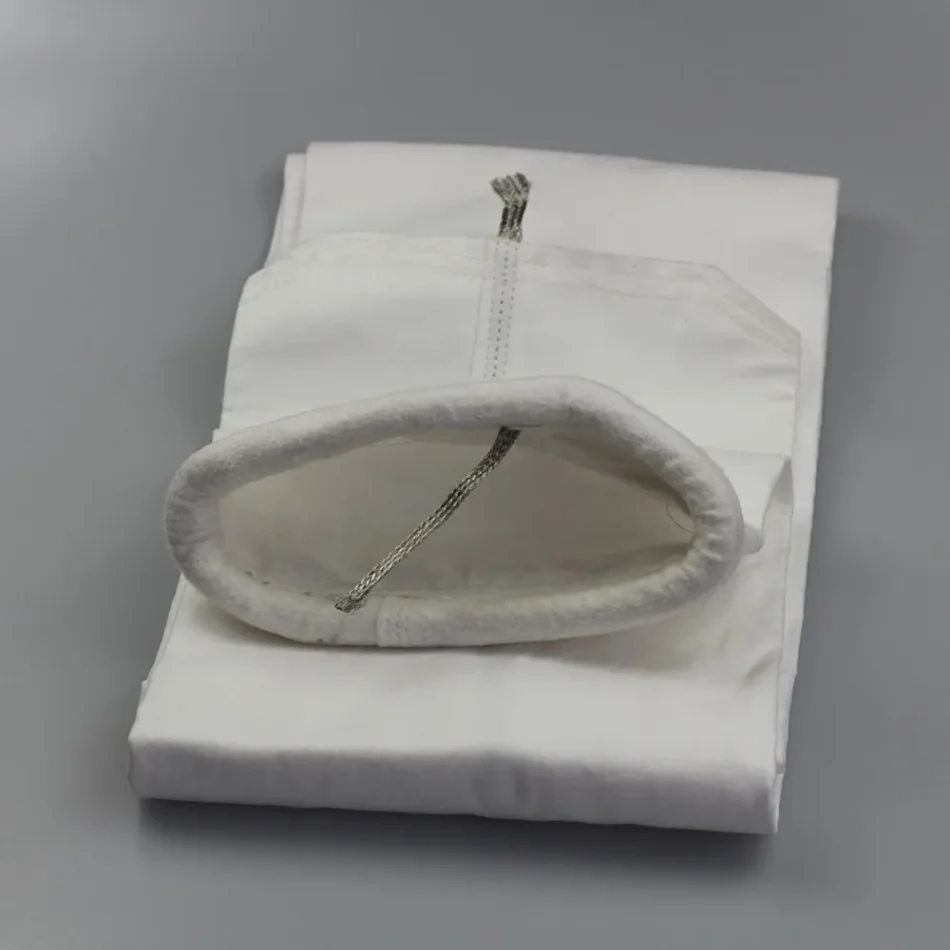

Antistatic Polyester Filter Bags
|
Specifically designed to prevent the accumulation of static electricity, these polyester filter bags are often used in explosive
environments or special applications where antistatic properties are required. |
|
|
Corrosion-Resistant Polyester Filter Bags
|
Featuring additional chemical corrosion resistance, these polyester filter bags are suitable for filtration operations in
corrosive environments. |
|
|
Water and Oil Repellent Polyester Filter Bags
|
Treated to repel water and oil, these polyester filter bags are ideal for applications involving the filtration of water and oil
mixtures. |
|
|

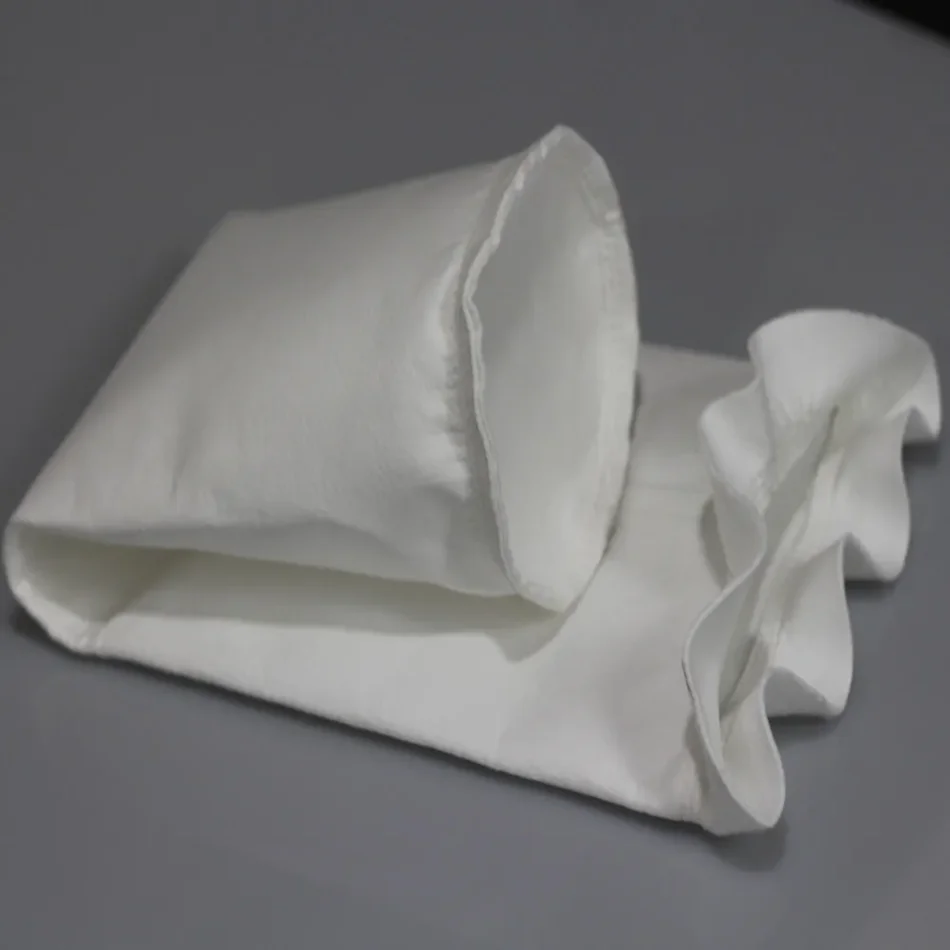

Micron Polyester Filter Bags
|
Characterized by small pore sizes, these filter bags are designed to capture tiny particles, making them suitable for applications
that require efficient fine filtration. |
|
|

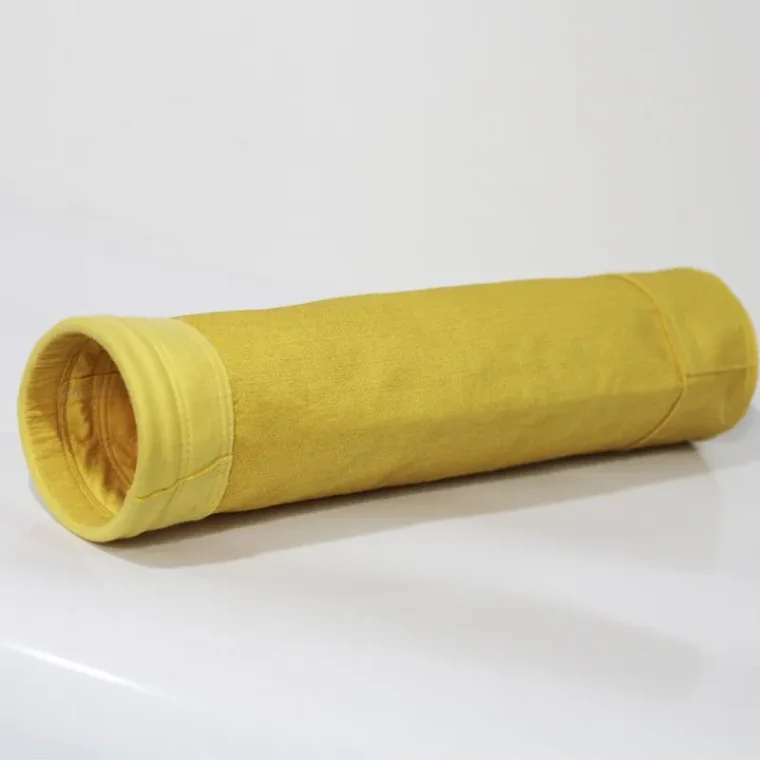

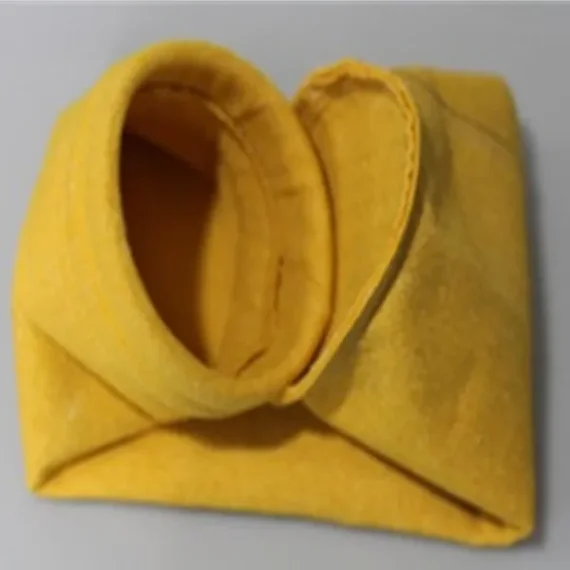

P84/Polyester Blend Filter Bags
|
Combining P84, a high-temperature synthetic fiber, with polyester, these filter bags offer excellent high-temperature stability
and abrasion resistance, making them suitable for hot environments. |
|
|
Needle Felt Polyester Filter Bags
|
Manufactured using a needle felting process, these filter bags have high physical strength and abrasion resistance, making them
suitable for environments that demand durability. |
|
|
Acid-Resistant Polyester Filter Bags
|
With additional acid resistance, these polyester filter bags are suitable for filtration operations in acidic environments.
|
|
|
PTFE-Coated Polyester Filter Bags
|
Featuring a polytetrafluoroethylene (PTFE) coating, these polyester filter bags provide outstanding resistance to chemical
corrosion and easy-cleaning characteristics. |
|
|
Classify according to polyester filter bag shape or cleaning method
|
||
|
Bag-shaped Polyester Filter Bags
|
This is the most fundamental and common shape for polyester filter bags, typically either rectangular or cylindrical, secured
through various sealing methods. |
|
|
Round Bottom Polyester Filter Bags
|
These bags have a round-shaped bottom, suitable for specific filtration equipment and applications that require improved fluid
distribution. |
|
|

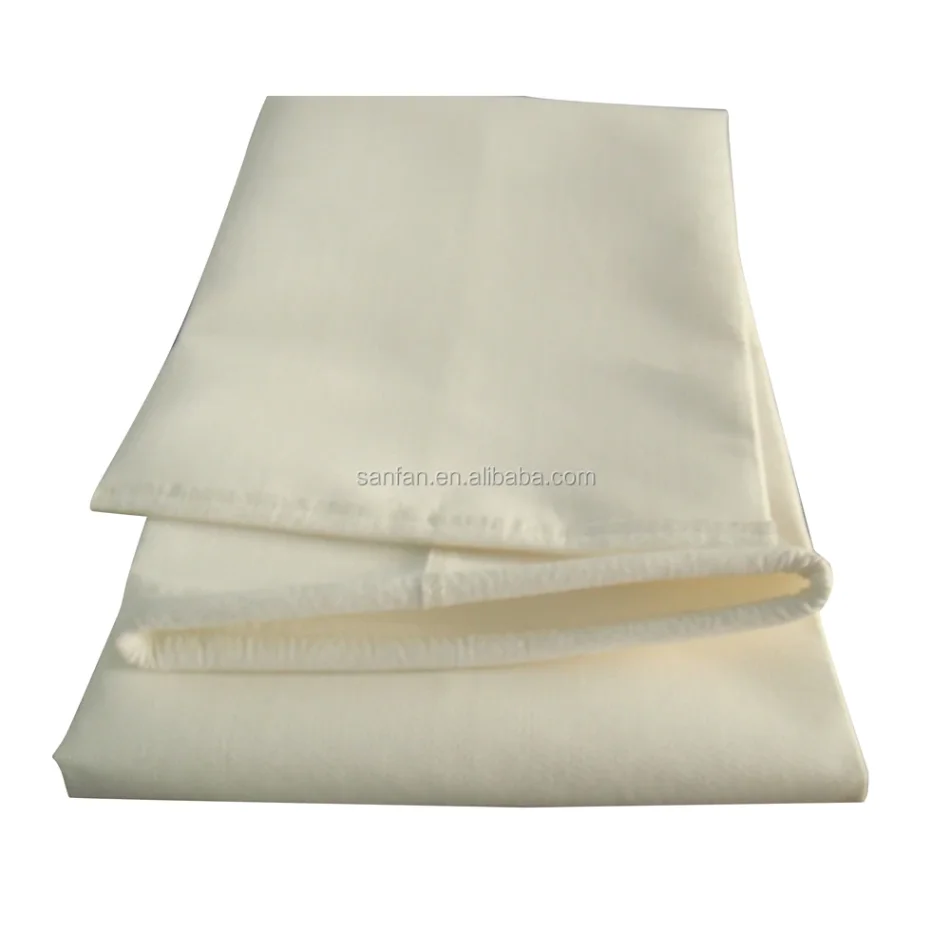

Flat Polyester Filter Bags
|
Flat polyester filter bags often have a larger filtration surface area, making them suitable for applications that demand high
throughput and low airflow velocity |
|
|
Conical Polyester Filter Bags
|
Featuring a conical bottom, these polyester filter bags are applicable in situations where better particle sedimentation and
discharge are required. |
|
|

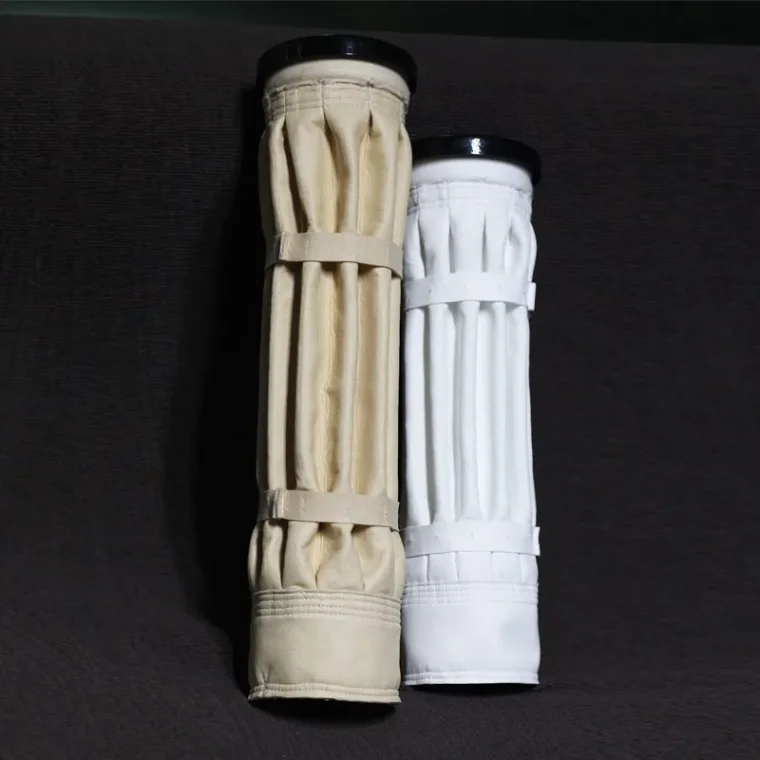

Pleated Polyester Filter Bags
|
Designed with a pleated structure to increase the filtration surface area, these bags enhance filtration efficiency and are
suitable for applications with higher filtration performance requirements. |
|
|
Pulse jet polyester filter bags
|
Pulse jet filter bags are a type of filter bag used in pulse jet dust collection systems. This type of filter bag is a common
industrial filtration material typically employed in dust removal equipment such as pulse jet baghouse dust collectors. |
|
|
Reverse air polyester filter bags
|
Reverse air filter bags are a type of filter bag used in reverse air dust collection systems. Designed to handle high dust loads
and large particulate environments, these filter bags are commonly employed in reverse air baghouse dust collectors, which are widely used industrial dust removal equipment. |
|
|
Envelope filter bag
|
Envelope filter bag refers to a filter bag with a specific design, similar to the appearance and shape of an envelope.
|
|
|
Basic commercial terms of polyester filter bag
|
||
|
Place of Origin
|
Shanghai, China
|
|
|
Brand Name
|
SFFILTECH
|
|
|
Certification
|
ISO
|
|
|
Minimum Order Quantity
|
10pcs (1pcs free sample)
|
|
|

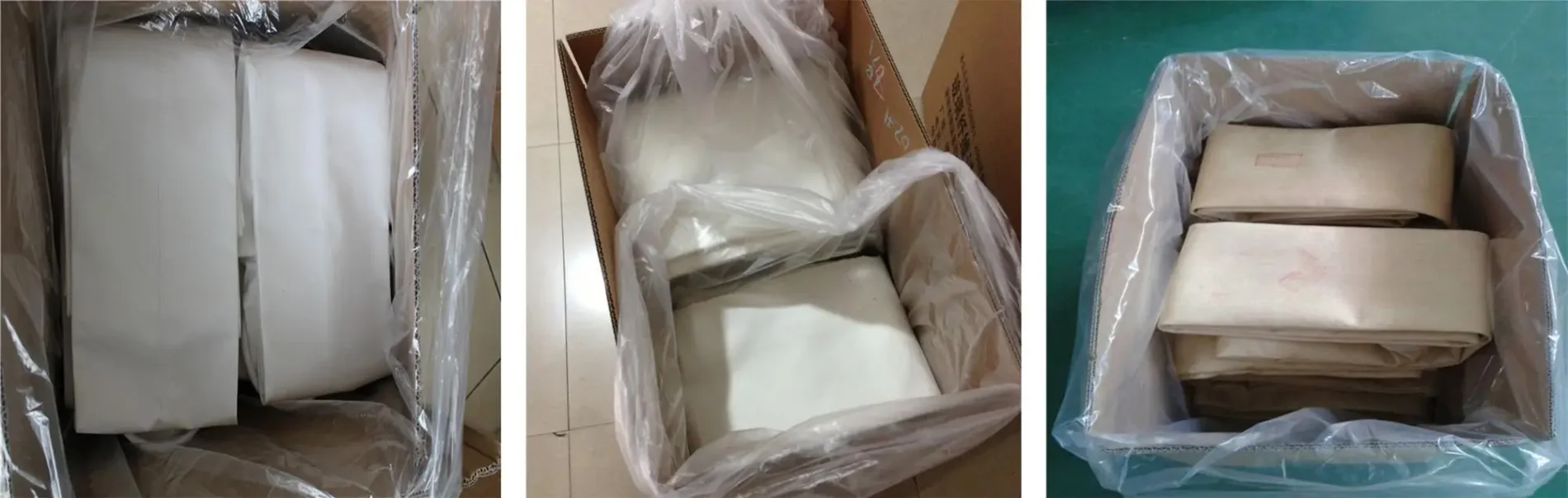

Packaging Details
|
The inner packing is in plastic bags The outer packing is in carton Large volume can also support custom packaging
|
|
|
Delivery Time
|
7-30days after deposit. According to the specific order quantity. 1-7days for sample
|
|
|
Port of shipment
|
Shanghai, Ningbo, Qingdao, Lianyungang, Guangzhou, Shenzhen or Others
|
|
|
Payment Terms
|
30% Deposit, balance TT on copy B/L. Other payment methods can be negotiated according to the order requirements
|
|
|
Supply Ability
|
100000pcs/month
|
|
|
OEM/ODM
|
Yes, we can support customized, like size, shape, material
|
|
|
After-sales Services
|
1 year warranty after we both sign the plant investigation usually for this one
|
|
Why Choose Our Filtration Bags?
Our filtration bags offer unmatched efficiency and durability in industrial settings. Engineered to withstand extreme temperatures and harsh chemicals, they ensure optimal performance and longevity. Customizable specifications cater to your unique filtration needs.
How Do Our Bags Enhance Filtration?
By capturing tiny particles and maintaining a clean production environment, our bags significantly improve air quality. Their excellent chemical resistance and dimensional stability ensure consistent performance, reducing downtime and maintenance costs.
Where Are Our Filtration Bags Used?
Our bags are ideal for a wide range of industries, including cement, steel, power generation, chemical processing, food and beverage, mining, woodworking, textiles, recycling, plastics, and automotive. They excel in dust collection systems, air pollution control, and liquid filtration processes.
