Description
Providing top-quality filtration bags that enhance industrial dust collection efficiency and durability.
Industries – Optimize Dust Collection with Premium Filtration Bags

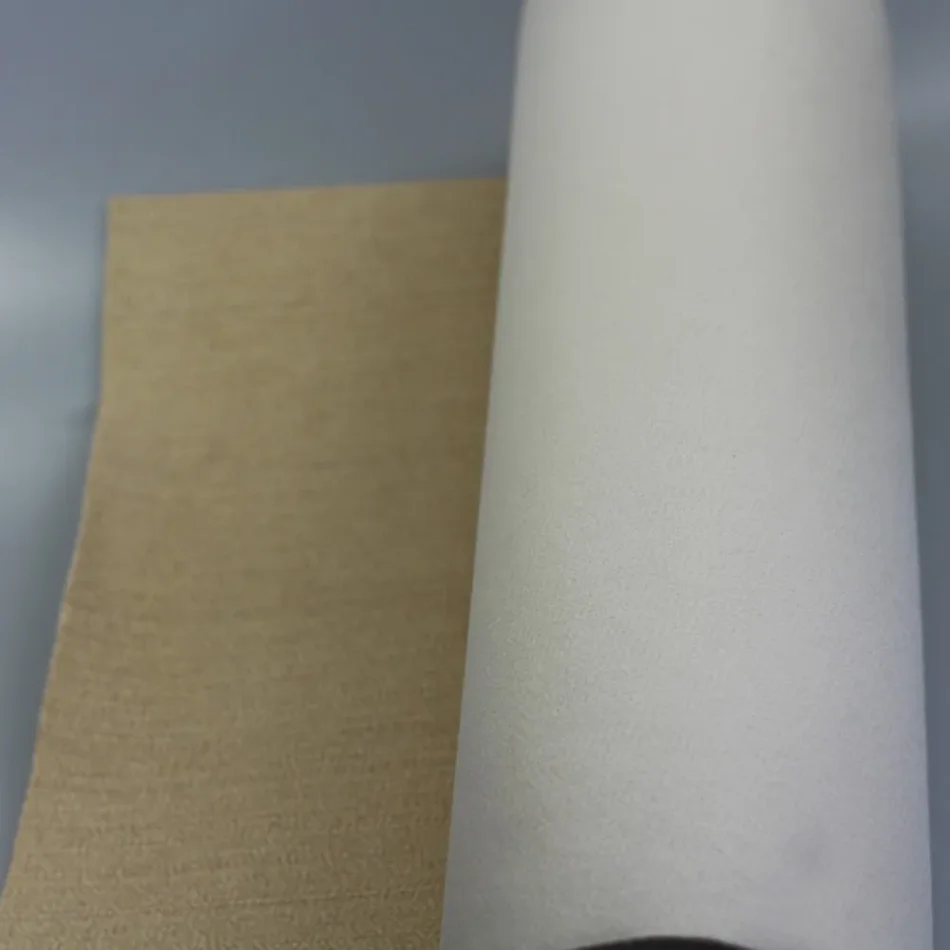

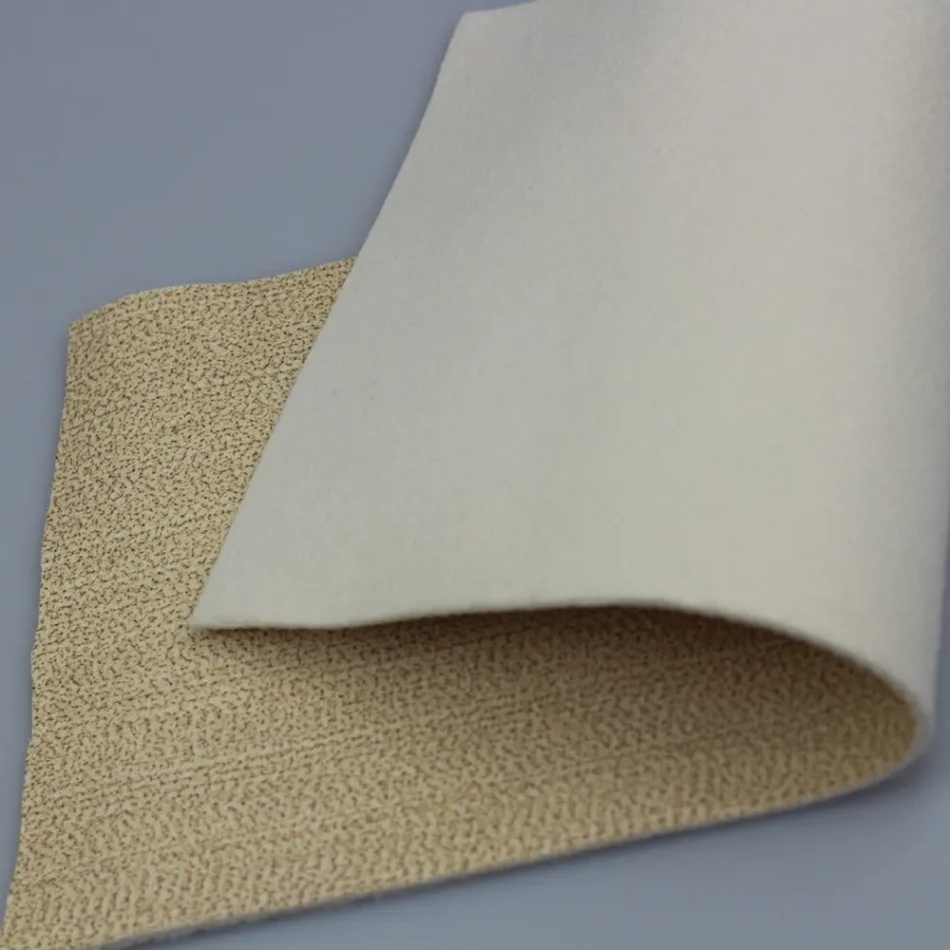

500gsm Aramid Filter Felt
Enhanced durability and filtration efficiency, ideal for high-temperature environments.
Heat Set, Singed, Calendared Membrane Finish
Improves air permeability and reduces particle penetration, ensuring cleaner air output.
High Breaking Strength (MD: 900N/5cm, CMD: 1200N/5cm)
Withstands rigorous industrial use, reducing the need for frequent replacements.
Operating Temperature < 204°C, Recommended Max Continuous 240°C
Suitable for high-temperature industrial applications, ensuring safety and reliability.
Features

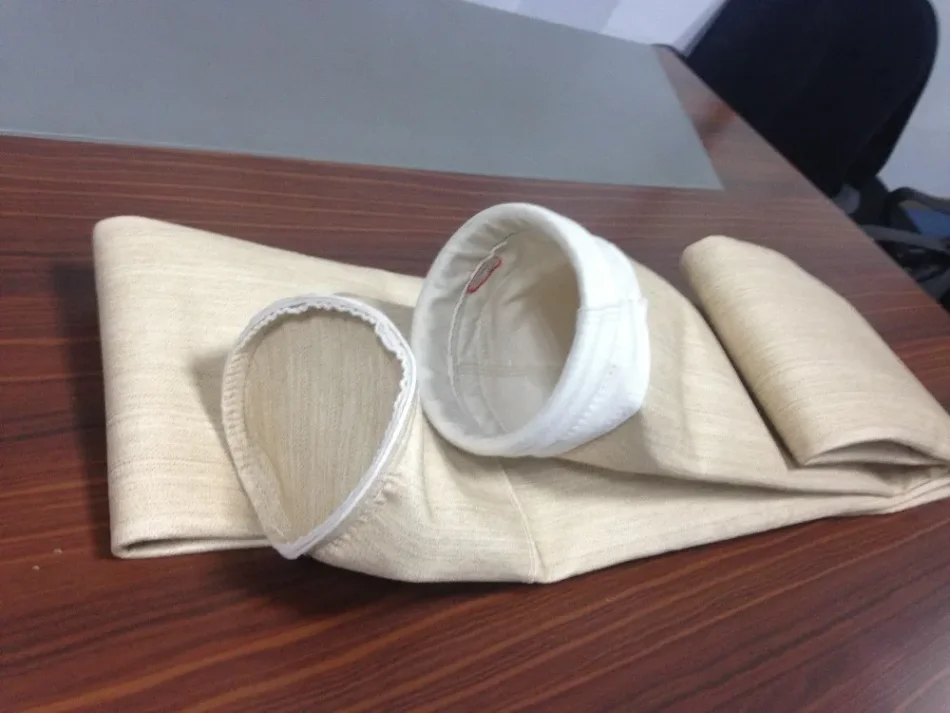

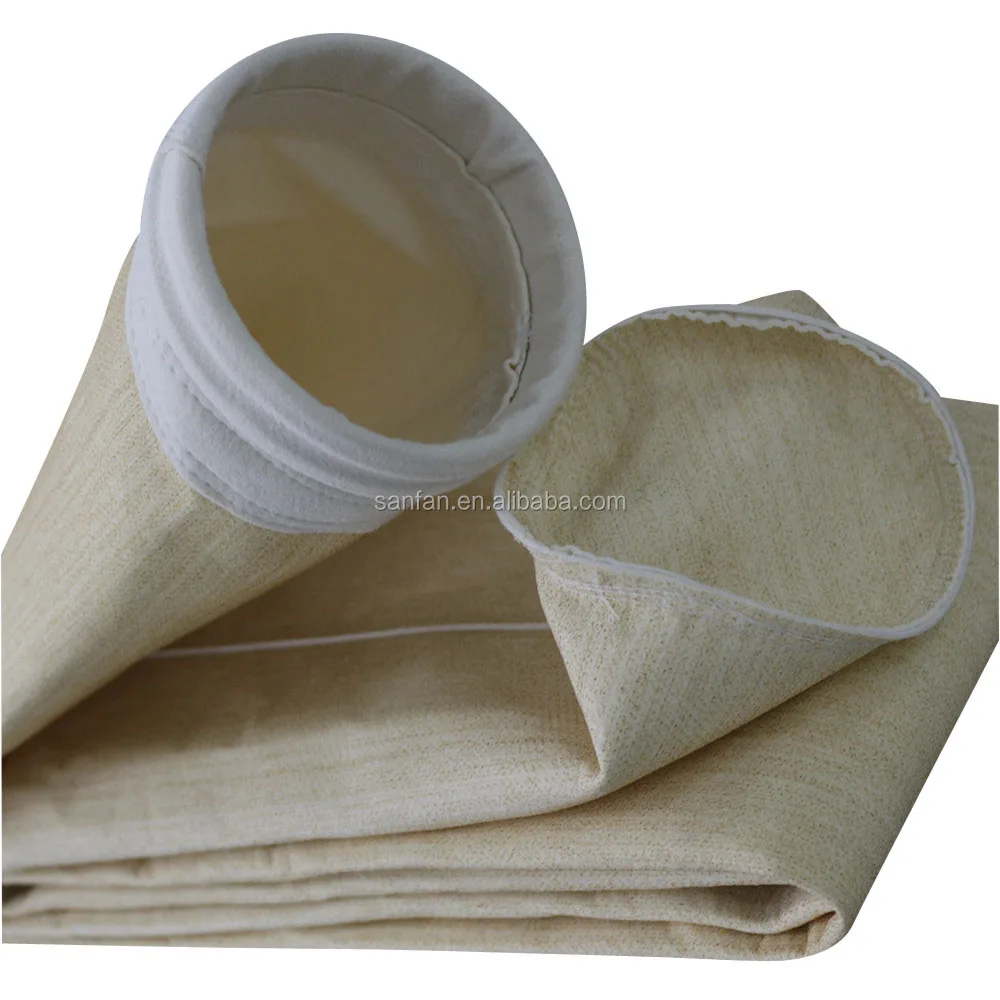

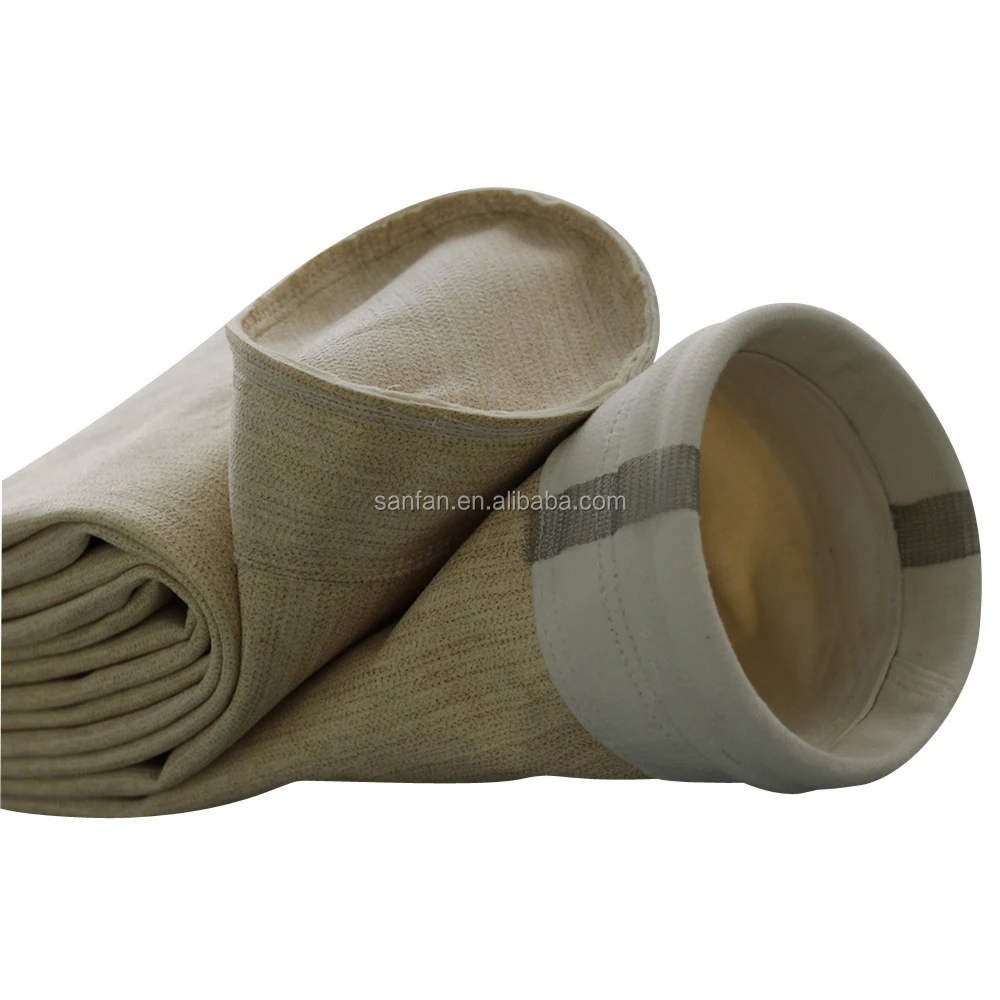

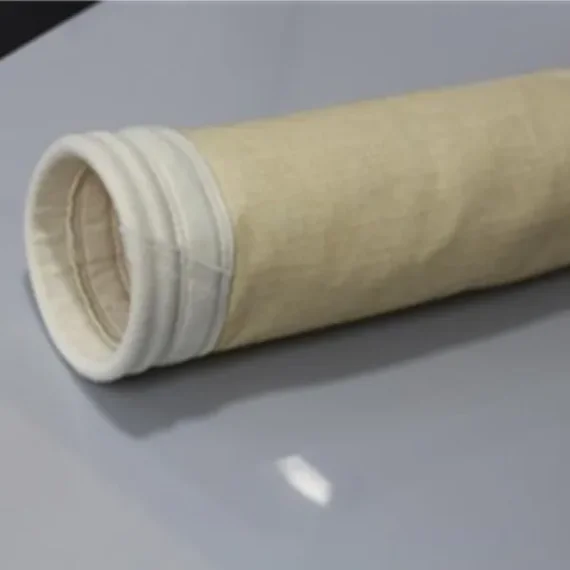

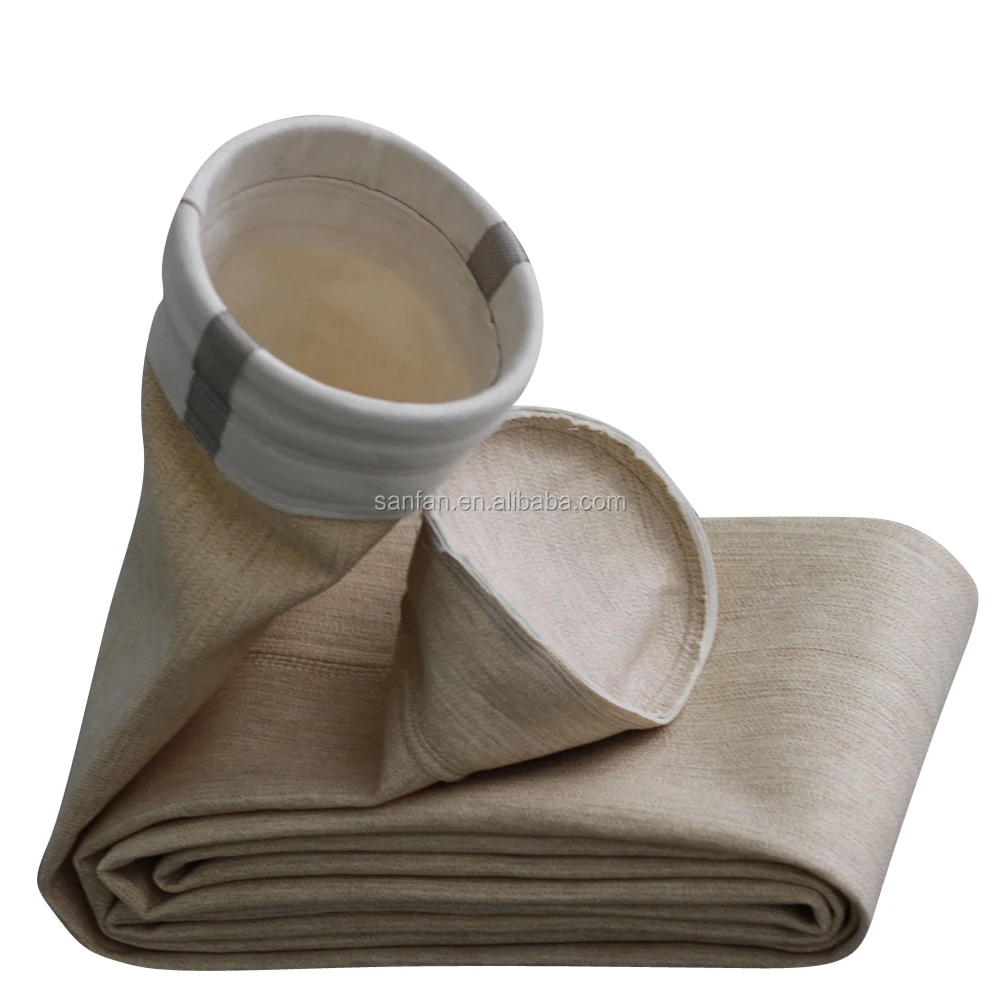

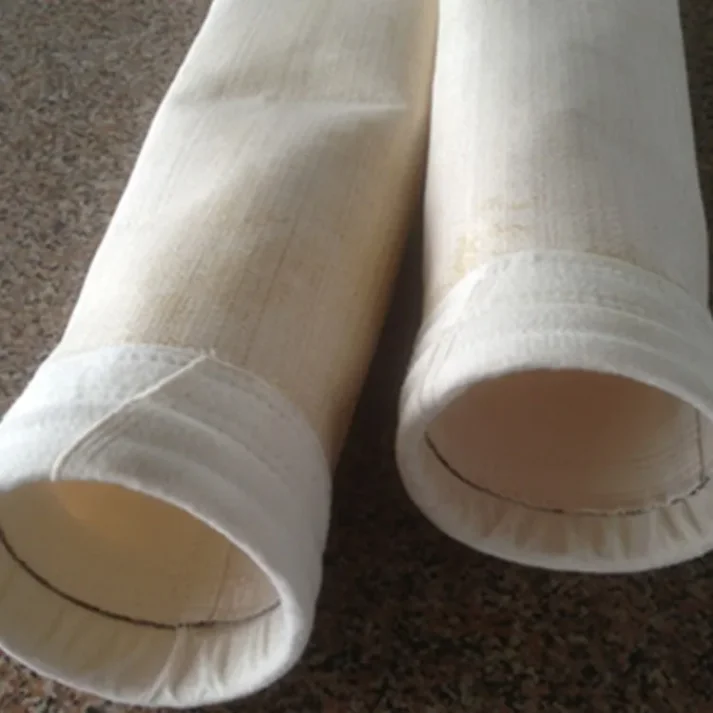

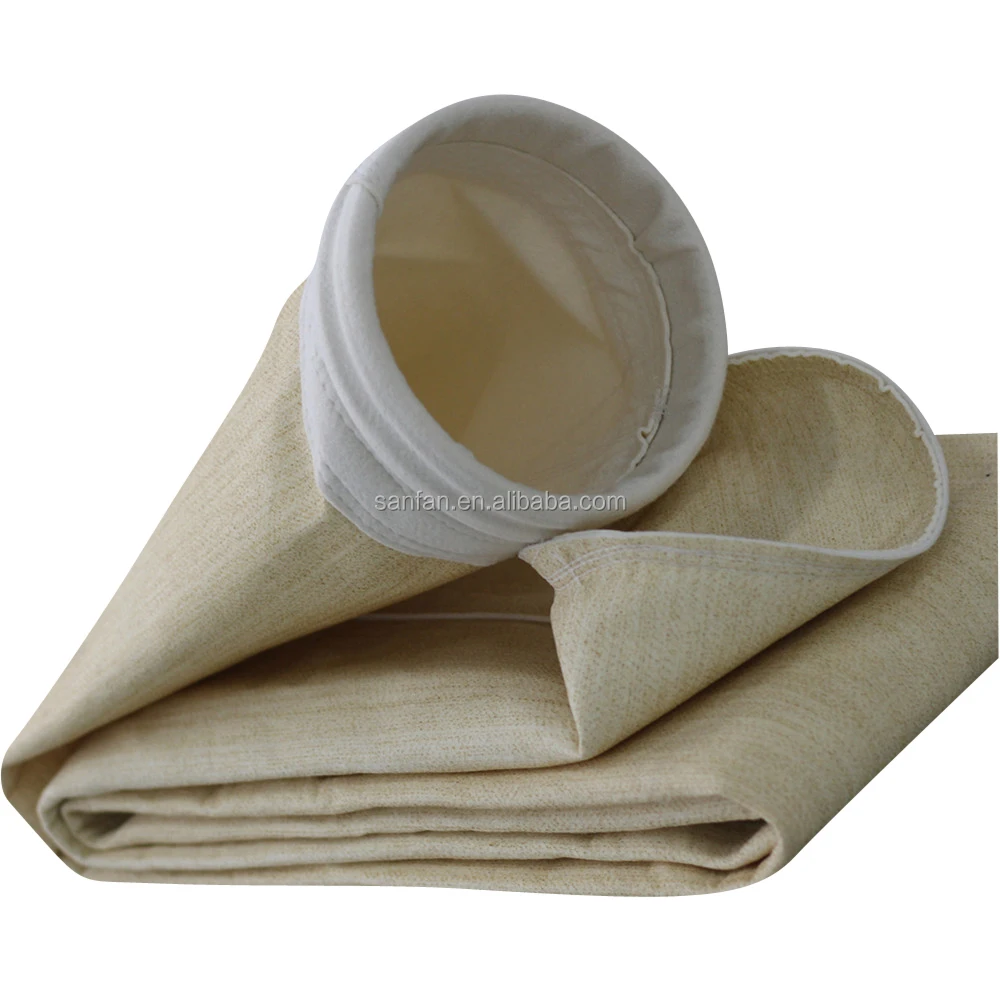

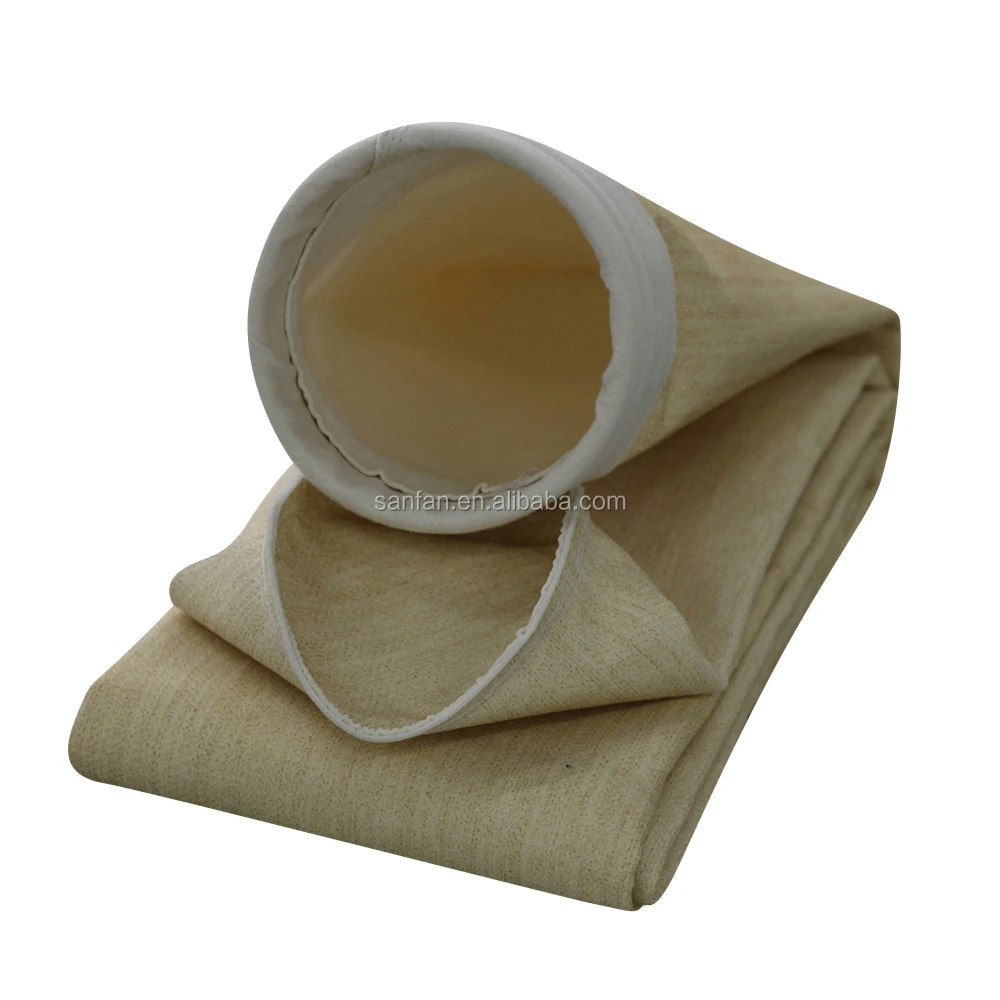

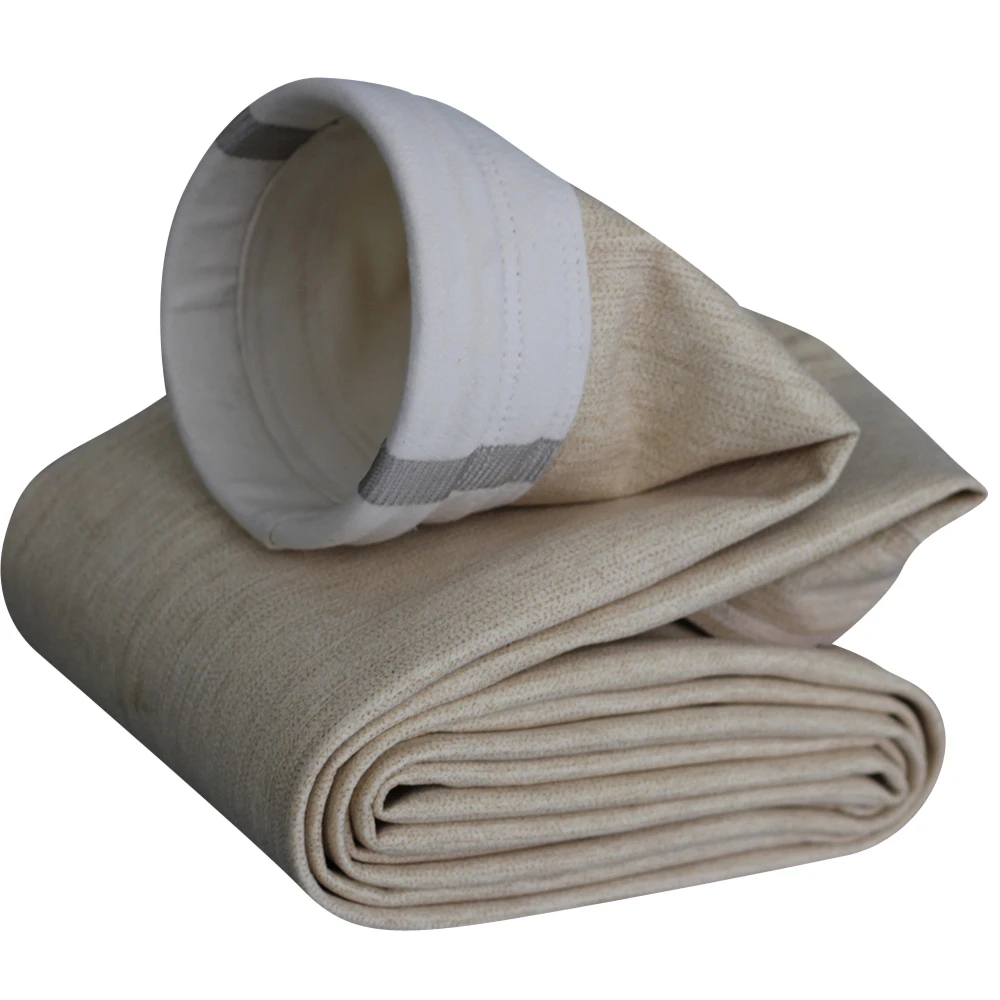

The filtration bag is crafted from 500gsm aramid filter felt, featuring a needle-punched construction for enhanced durability. It includes an aramid scrim for added strength and a heat-set, singed, calendared membrane finish for improved air permeability. The bag’s specifications include a thickness of 1.8-1.9mm, mean air permeability of 15-17 m³/m²/min, and high breaking strength in both warp and weft directions.
Benefits
This filtration bag offers superior filtration efficiency, reducing dust and particle emissions in industrial settings. Its high breaking strength and temperature resistance ensure longevity and reliability, even in harsh environments. The improved air permeability leads to better airflow and cleaner air output, contributing to a healthier work environment and compliance with industrial regulations.
Use Cases
The filtration bag is ideal for use in biomass power stations, chemical and pharmaceutical industries, high-temperature dedusting applications, coal-fired power stations, food industry, non-ferrous metal and steel production, cement, gypsum, and lime industry, as well as thermal waste treatment facilities. It serves as a filter bag for dust collectors in industrial settings, providing an efficient and reliable solution for dust and particle filtration.
|
Item
|
500gsm aramid filter felt
|
|
Construction
|
Needle felt
|
|
Fibre Composition
|
aramid
|
|
Scrim Composition
|
aramid
|
|
Felt Area Weight
|
500g/m2(±5%)
|
|
Thickness
|
1.8-1.9mm
|
|
15-17Mean Air Permeability
|
15-17 (m³/m²/min)
|
|
Breaking Strength-MD(warp)
|
900 N / 5cm
|
|
Breaking Strength-CMD(weft)
|
1200 N / 5cm
|
|
Breaking Elongation( N/5cm)-MD(warp)
|
20%
|
|
Breaking Elongation( N/5cm)-CMD(weft)
|
39%
|
|
Dry Shrinkage MD(130℃warp)
|
<1.5%
|
|
Dry Shrinkage CMD(130℃weft)
|
<1.5 %
|
|
Operating Temperatures
|
<204 deg C
|
|
Recommended Maximum Continuous
|
240deg C
|
|
Recommended Maximum Surge
|
240deg C
|
|
Finish
|
Heat set, singed, calendared membrane
|
|
Categories
|
Dust filtration for all kinds of dust filter bag and filter felt liquid filter filtration for all kinds of liquid filter bag and micro filte felt and nylon related machines for making different filter bags |
||||
|
Dust filtration
filter bag
|
Polyester filter bag
Polypropylene filter bag
Nomex dust filter bag ( nomex scrim or fiber glass scrim)
Pps dust filter bag
P84 dust filter bag
Ptfe dust filter bag
FMS dust filter bag
fiber glass filter bag
and so on
|
||||
|
Liquid filtration
|
Micro Polyester filter bag Micro PP filter bag Nylon Mesh filter bag Nomex liquid filter bag Ptfe liquid filter bag Filter cartridge Filter Housing and so on |
||||
|
Machines for dust filtration
|
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
|
||||
|
Usagae/Occasion
|
– Biomass power stations
– Chemical and pharmaceutical industry – High temperature dedusting – Coal-fired power stations – Food industry – Non-ferrous metal and steel production – Cement, gypsum and lime industry – Thermal waste treatment |
||||
|
About us
|
1.Trade Assrurance, with trade assurance,you’ll enjoy: 100% product quality protection
100% on-time shipmeng protection
100% payment protection for your covered amount
2.Gold supplier
3.We accept transactions via alibaba.com
4.Payment protection
5.on-time shipment
6.wholesale low MOQS
7.Popular Buying requests for”filter bag”and “Nut milk bag”
|
||||
|
Size and Design
|
Any size is avaiable, we will follow you size and design
|
||||
|
MOQ(small order accept)
|
50pcs is also accept
|
||||
|
Price
|
We are factory(You are warmly welcome to pay a visit to our factory)
|
||||
|
Delivery time
|
Samples: finish 1-2 days, 2000pcs filter bags 7-15days, bulk orders depengd on your quantity.
|
||||
|
Package Detail
|
Standard Package:paper carton with plastic bag inside, some time with pallets.
|
||||
|
Warm Tips
|
More products details,our advantage,package detail,delivery time, samples and so on
|
||||
Why Choose Our Filtration Bag?
Our filtration bag is specifically designed for industrial settings, offering superior filtration efficiency and durability. It withstands high temperatures and rigorous use, reducing the need for frequent replacements and ensuring cleaner air output.
Key Features of Our Filtration Bag
Crafted from 500gsm aramid filter felt, our bag features a needle-punched construction, aramid scrim, and a heat-set, singed, calendared membrane finish. It offers high breaking strength, excellent air permeability, and temperature resistance up to 240°C.
Applications of Our Filtration Bag
Our filtration bag is suitable for a wide range of industrial applications, including biomass power stations, chemical and pharmaceutical industries, and more. It serves as an efficient and reliable solution for dust and particle filtration in industrial settings.
