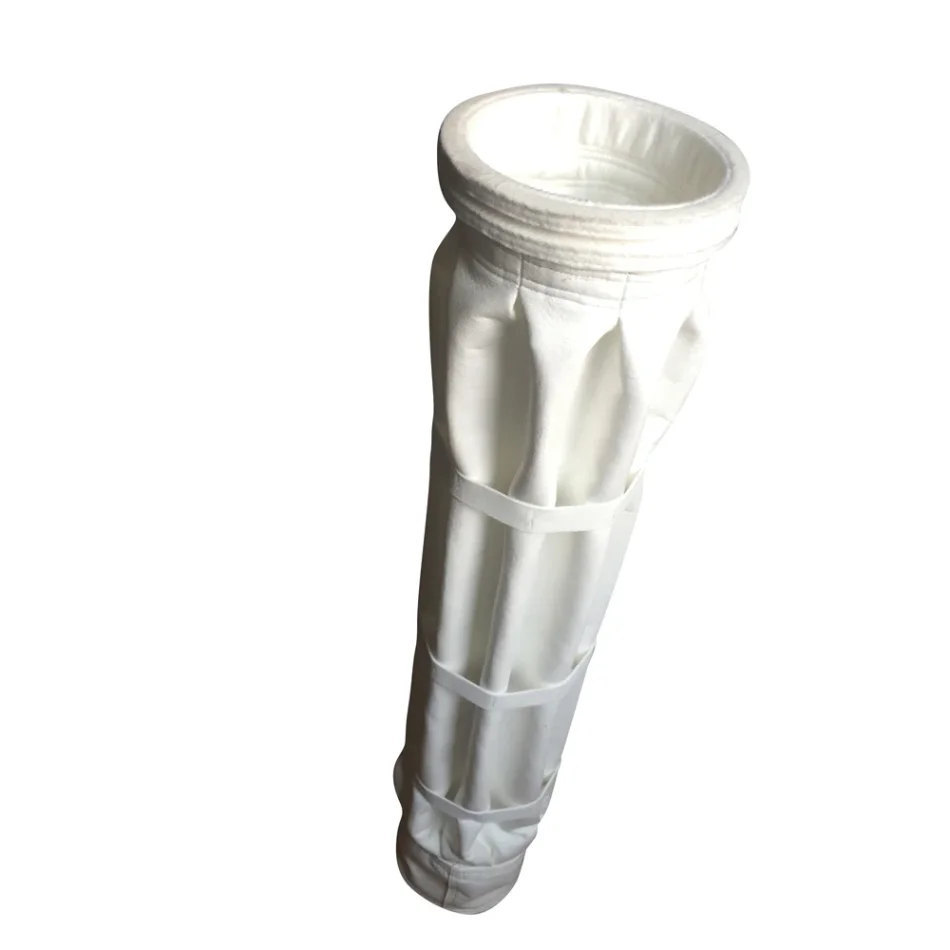

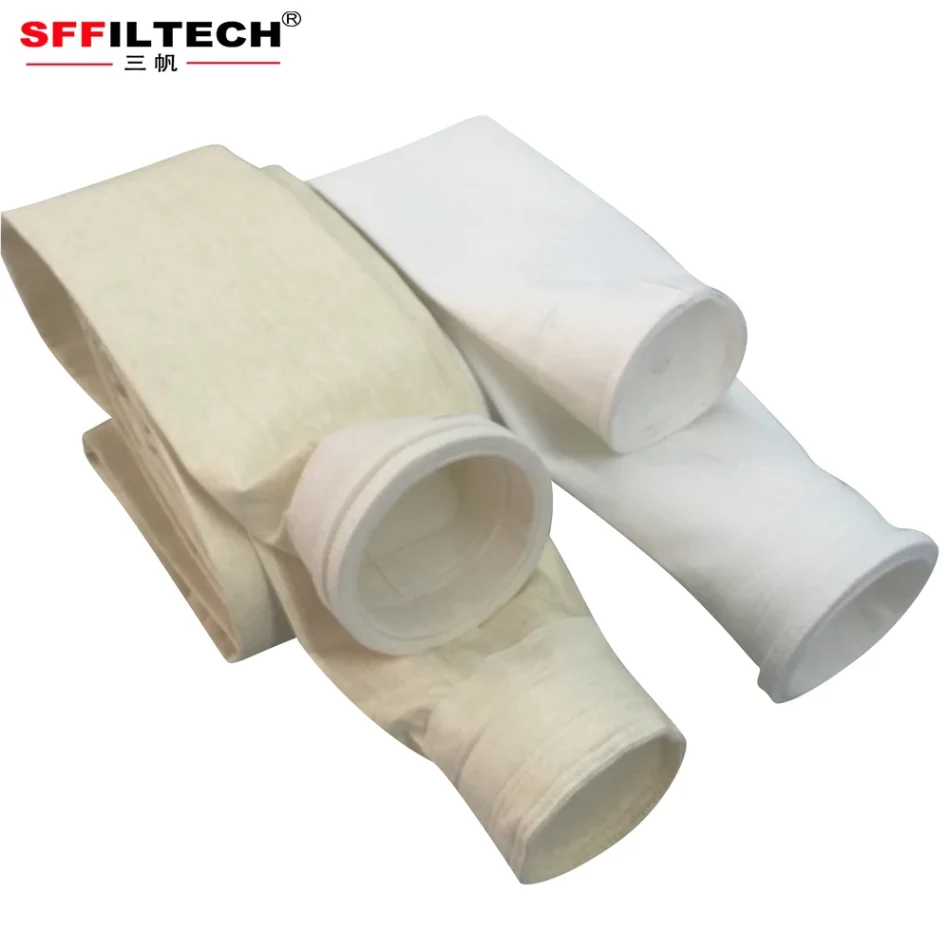

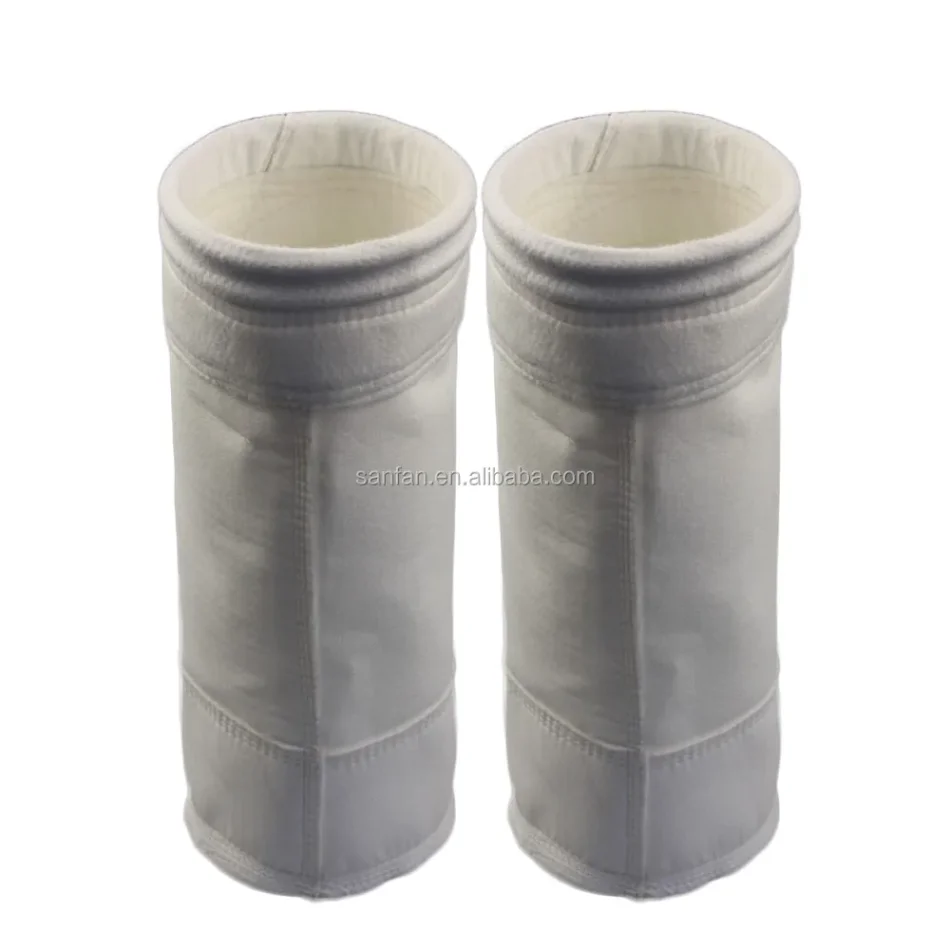

Description

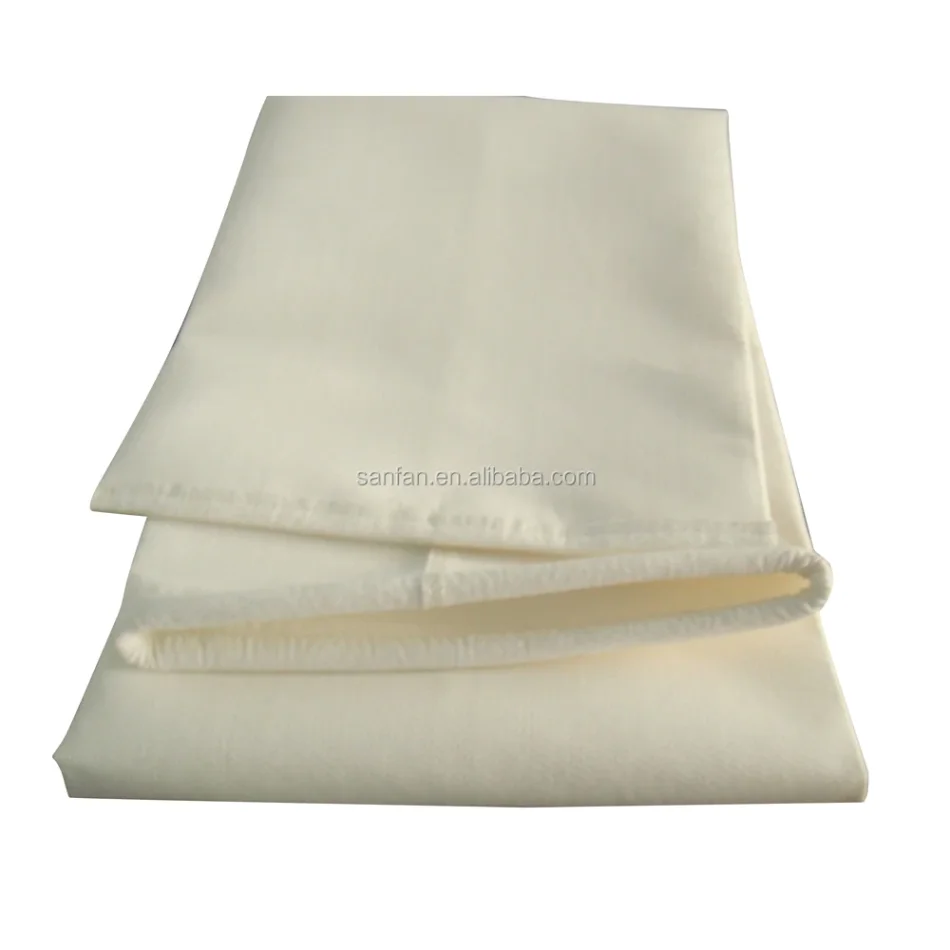

Our polyester filter bags come in various shapes and sizes, tailored to fit different filtration systems. With options for needle polyester felt construction, they provide high filtration efficiency and can withstand temperatures up to 150°C. Available in weights ranging from 300gsm to 650gsm, our bags cater to diverse industrial needs. Special finishes like antistatic, water and oil repellent, and PTFE membrane coating enhance their versatility.
As a factory-direct supplier, we offer competitive wholesale prices and the flexibility to customize dimensions, weights, and finishes according to your specific requirements. Our commitment to quality ensures that each filter bag meets stringent standards, with ISO/CE/MSDS certifications guaranteeing safety and reliability. With efficient pre-sales and after-sales service, we are dedicated to providing a seamless purchasing experience.
Choose our polyester filter bags for their outstanding performance, cost-effectiveness, and the peace of mind that comes with buying from a trusted factory supplier.
|
physical and mechanical properties of polyester filter bags
|
||
|
Item
|
Industry Polyester Dust Collector Filter Bag
|
|
|
Construction
|
Needle Polyester Felt
|
|
|
Fibre Composition
|
Polyester Fibre
|
|
|
Weight
|
350gsm, 400gsm, 450gsm, 500GSM, 550GSM, 600gsm or OEM/ODM
|
|
|
Thickness
|
1.8-1.9mm
|
|
|
Mean Air Permeability
|
10-15 m3/m2/min@12.7mmH2O
|
|
|
Breaking Strength-MD(warp)
|
900 N / 5cm
|
|
|
Breaking Strength-CMD(weft)
|
1300 N / 5cm
|
|
|
Breaking Elongation( N/5cm)-MD(warp)
|
20%
|
|
|
Breaking Elongation( N/5cm)-CMD(weft)
|
40%
|
|
|
Dry Shrinkage MD（130℃(warp)
|
＜1.5 %
|
|
|
Dry Shrinkage CMD（130℃(weft)
|
＜1.5 %
|
|
|
Continuous Temperature
|
＜130 Degree
|
|
|
Recommended Maximum Surge
|
150 deg C
|
|
|
Normal Finishing
|
Singeing, Calendering, Heat set
|
|
|
Functional Finishing
|
anti-static, water and oil repellent, PTFE membrance
|
|
|
Feature
|
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
|
|
|
Application
|
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, food processing industry.
|
|
|
conventional size and weight parameters of polyester filter bags
|
||||
|
Diameter (mm)
|
Length (mm)
|
Weight (g/㎡)
|
||
|
120、130、133、155、180、200、250、292、300
|
1000、1500、2000、2400、25000、2480、2800、3000、3200、3600、4000、4400、5000、6000、8000
|
350, 400, 450, 500, 550, 600
|
||
|
Most commonly used dimensions
|
133mm*1500mm、133mm*2000mm、133mm*2500mm
|
|||
|
Most commonly used weight
|
450g, 500g
|
|||
|
We can customize diameter, length, and weight for you
|
||||
|

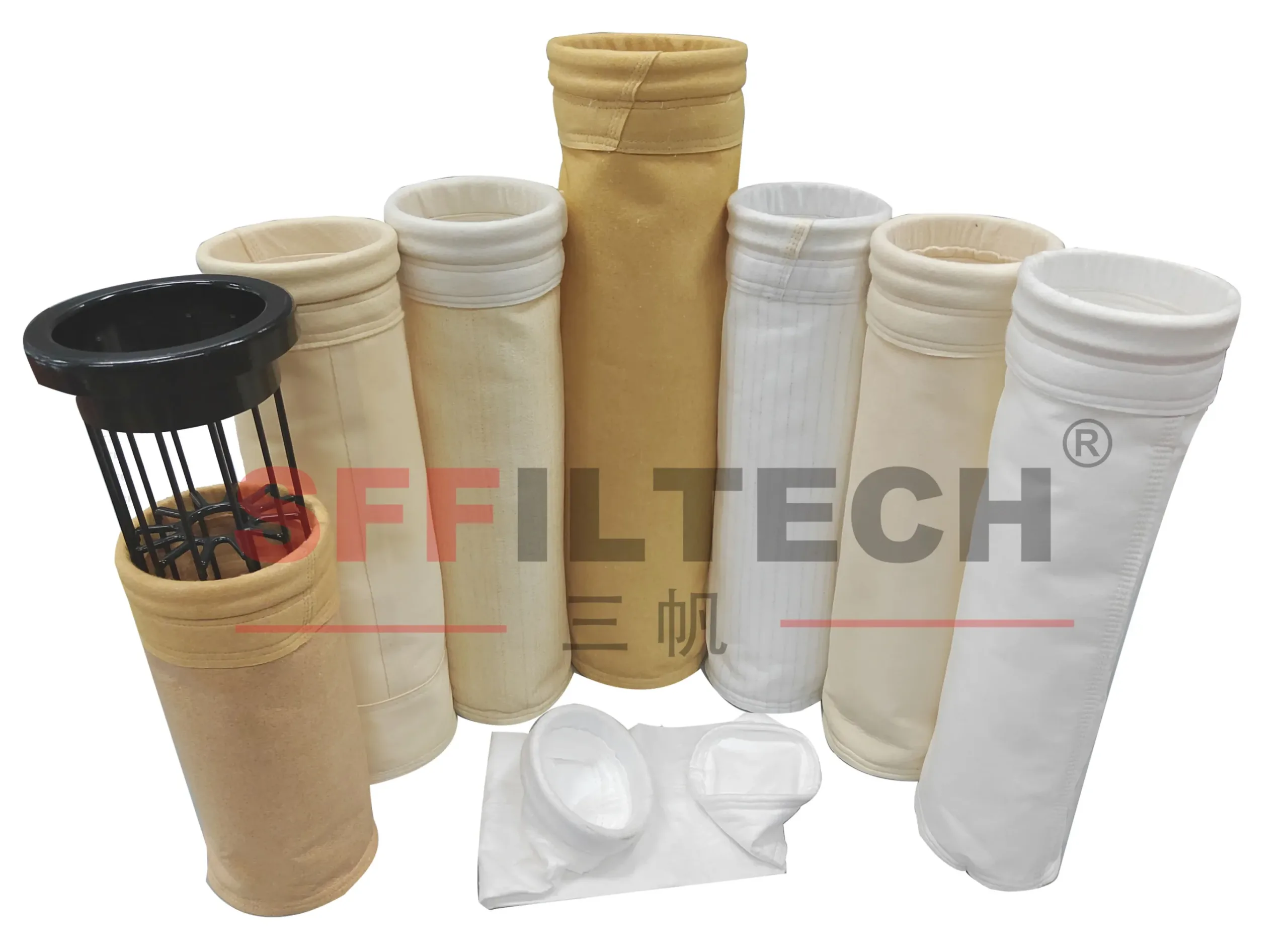

Classified according to polyester filter bag material and process
|
||
|

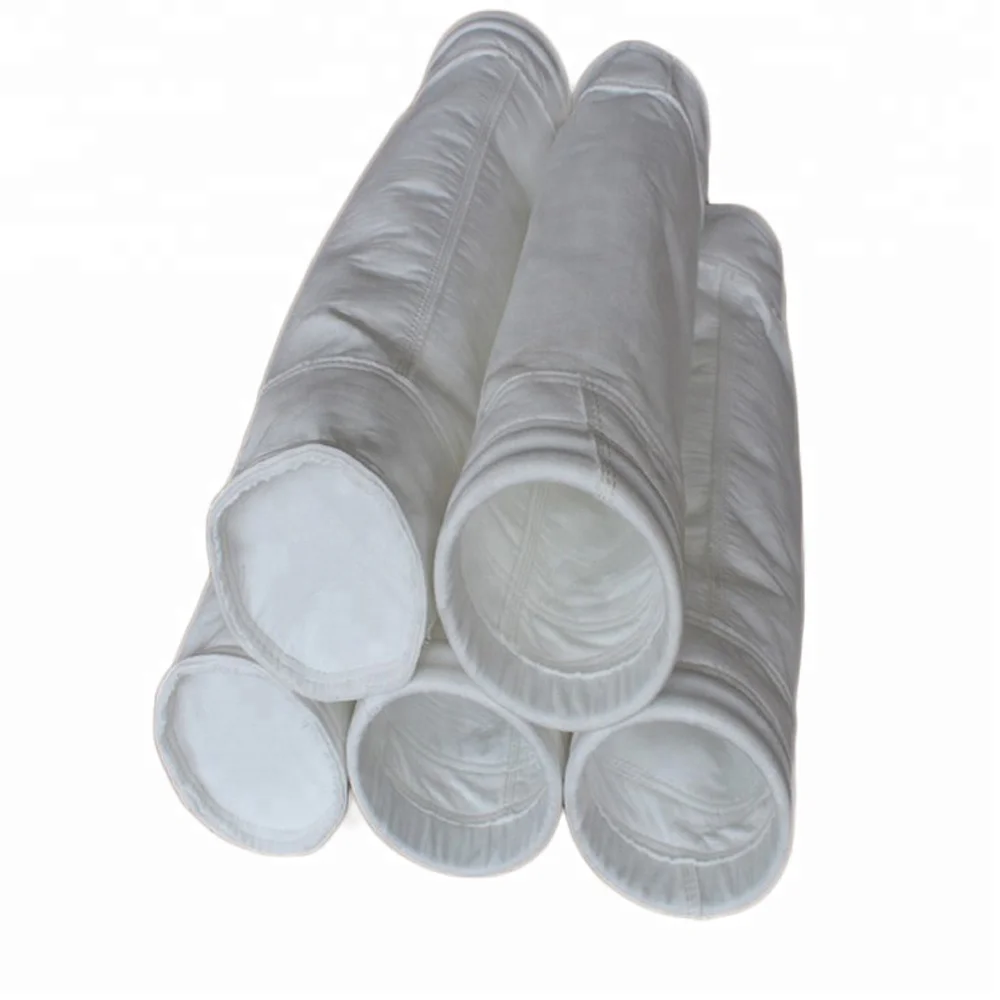

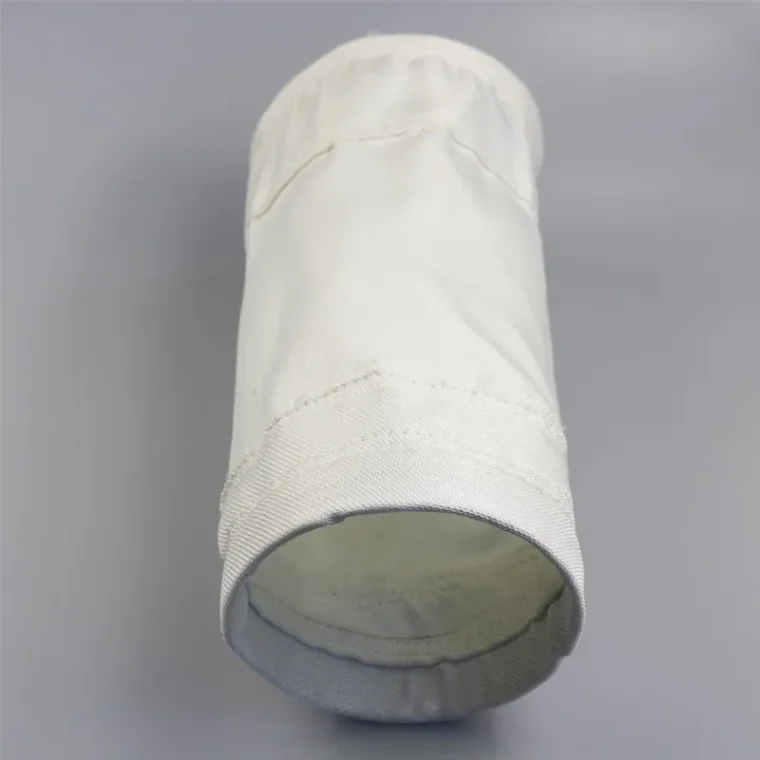

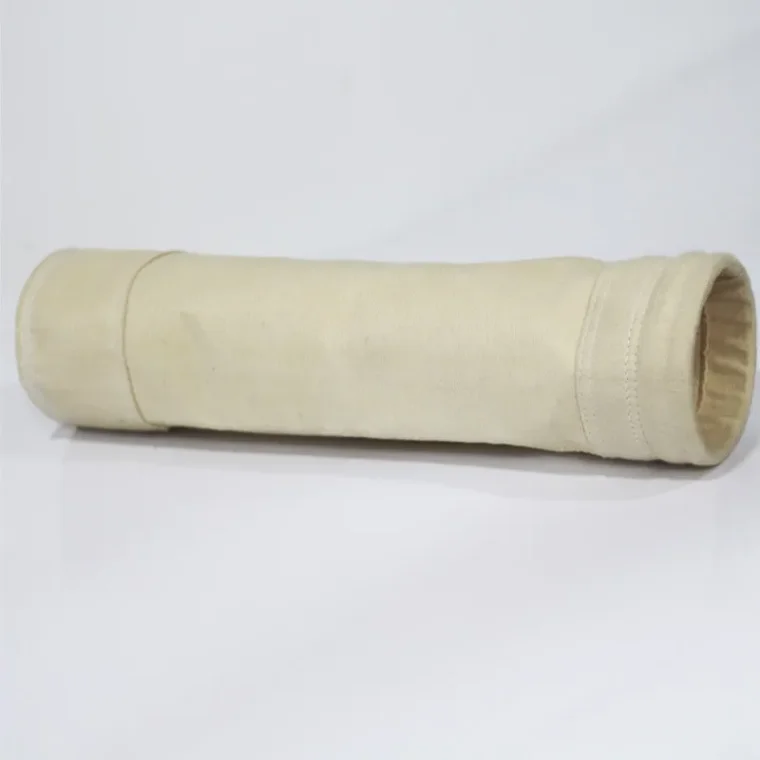

Standard Polyester Filter Bags:
|
This is the most common type of polyester filter bag, suitable for general industrial filtration needs. They exhibit excellent
high-temperature resistance and chemical stability. |
|
|

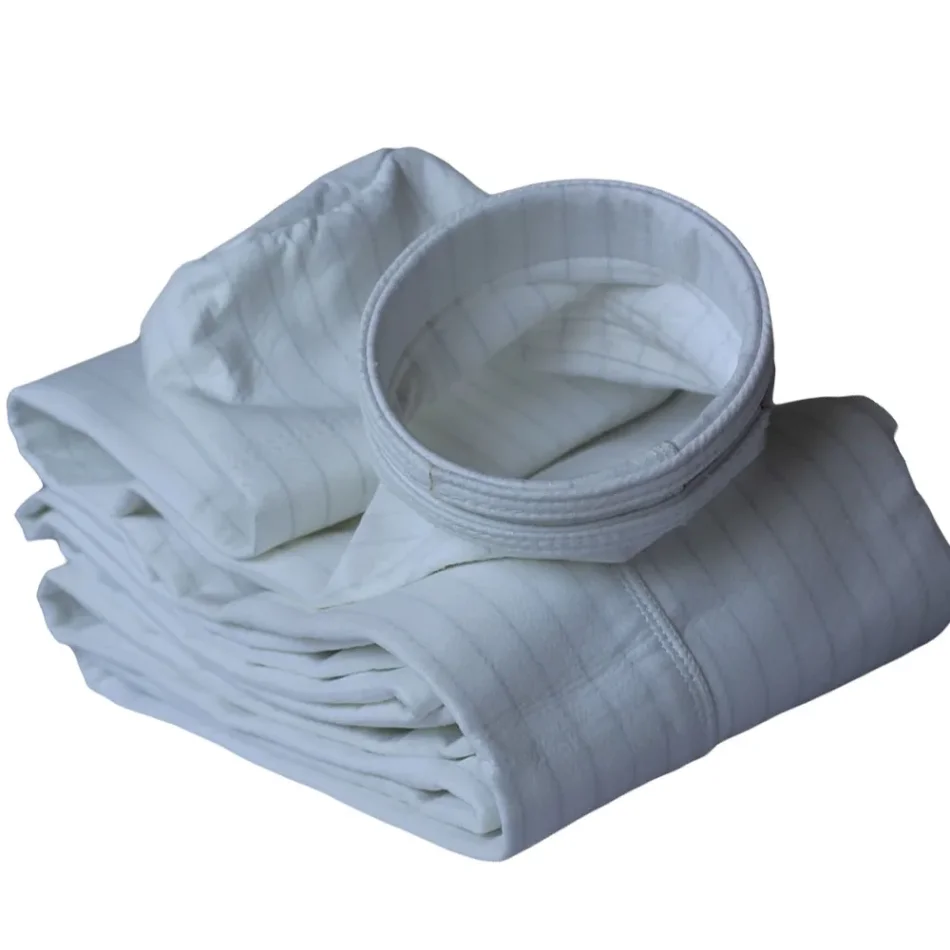

Antistatic Polyester Filter Bags
|

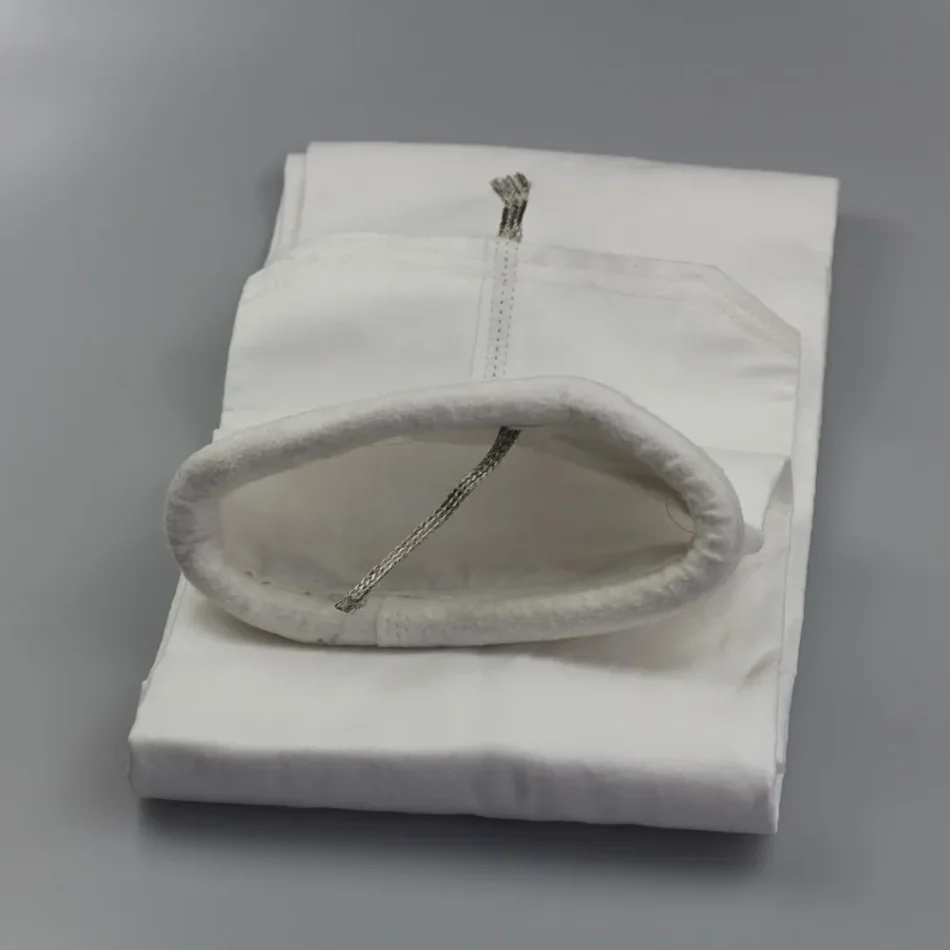

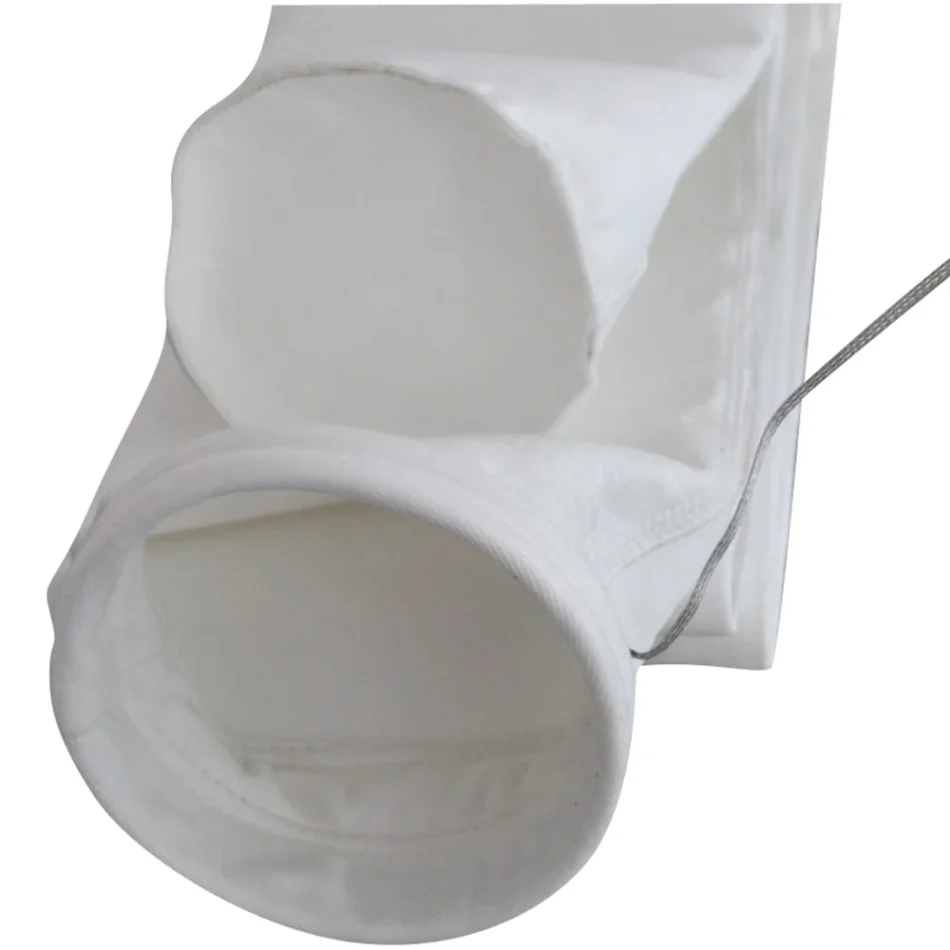

Specifically designed to prevent the accumulation of static electricity, these polyester filter bags are often used in explosive
environments or special applications where antistatic properties are required. |
|
|
Corrosion-Resistant Polyester Filter Bags
|
Featuring additional chemical corrosion resistance, these polyester filter bags are suitable for filtration operations in
corrosive environments. |
|
|
Water and Oil Repellent Polyester Filter Bags
|
Treated to repel water and oil, these polyester filter bags are ideal for applications involving the filtration of water and oil
mixtures. |
|
|
Micron Polyester Filter Bags
|
Characterized by small pore sizes, these filter bags are designed to capture tiny particles, making them suitable for applications
that require efficient fine filtration. |
|
|

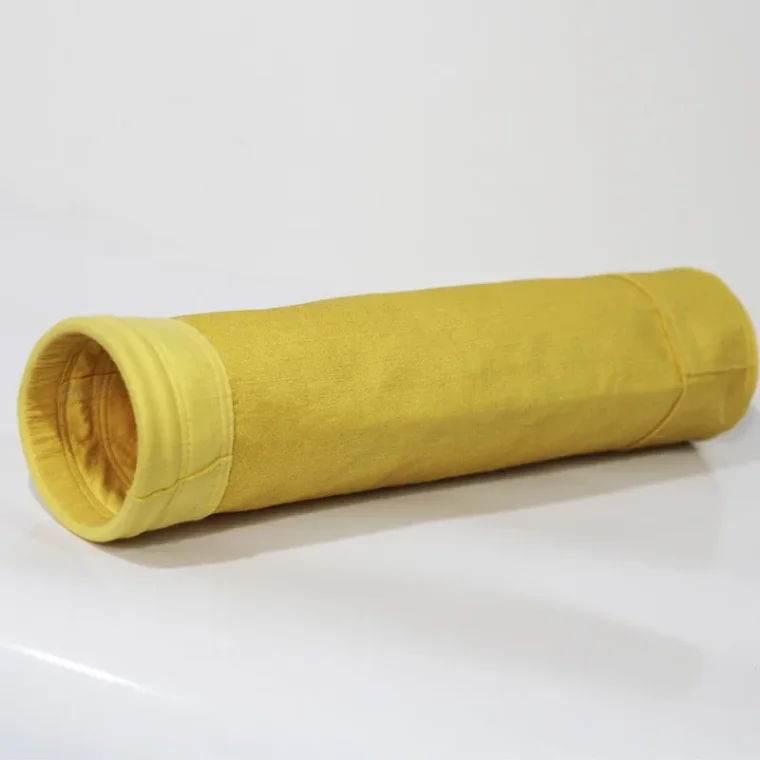

P84/Polyester Blend Filter Bags
|
Combining P84, a high-temperature synthetic fiber, with polyester, these filter bags offer excellent high-temperature stability
and abrasion resistance, making them suitable for hot environments. |
|
|

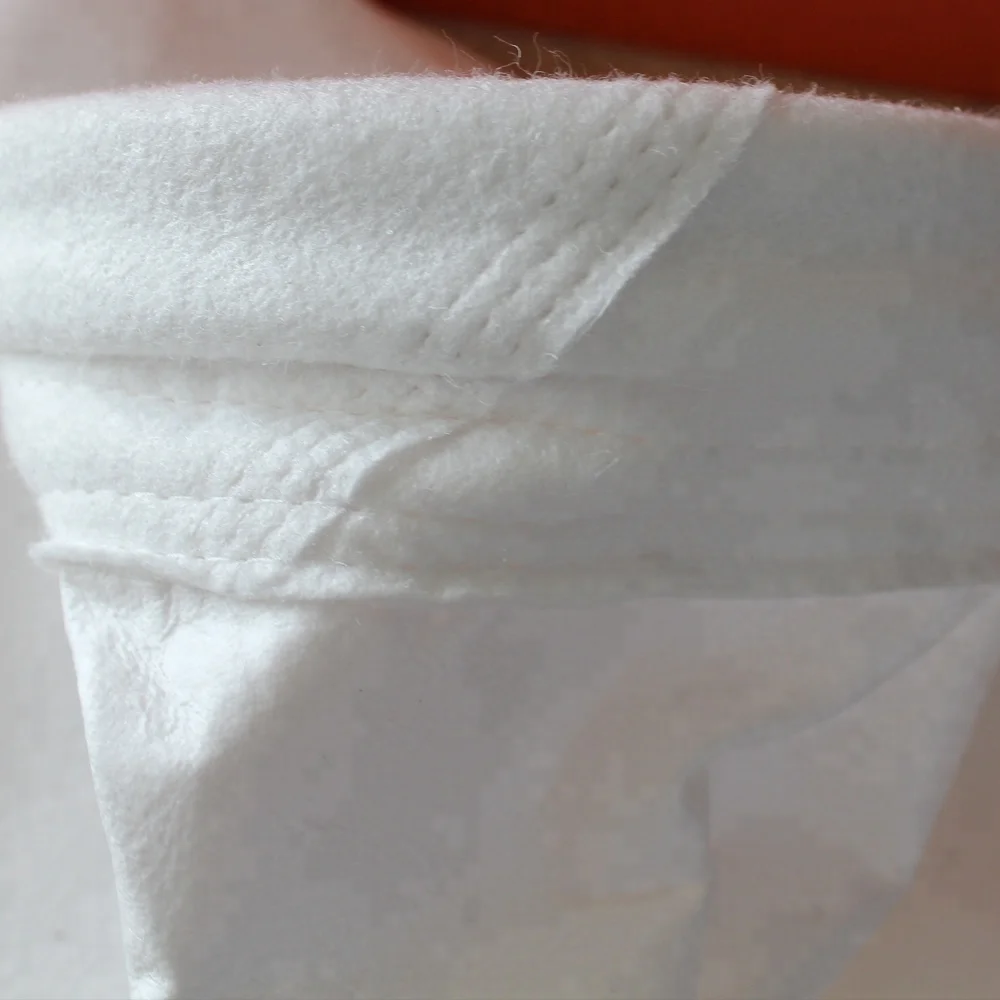

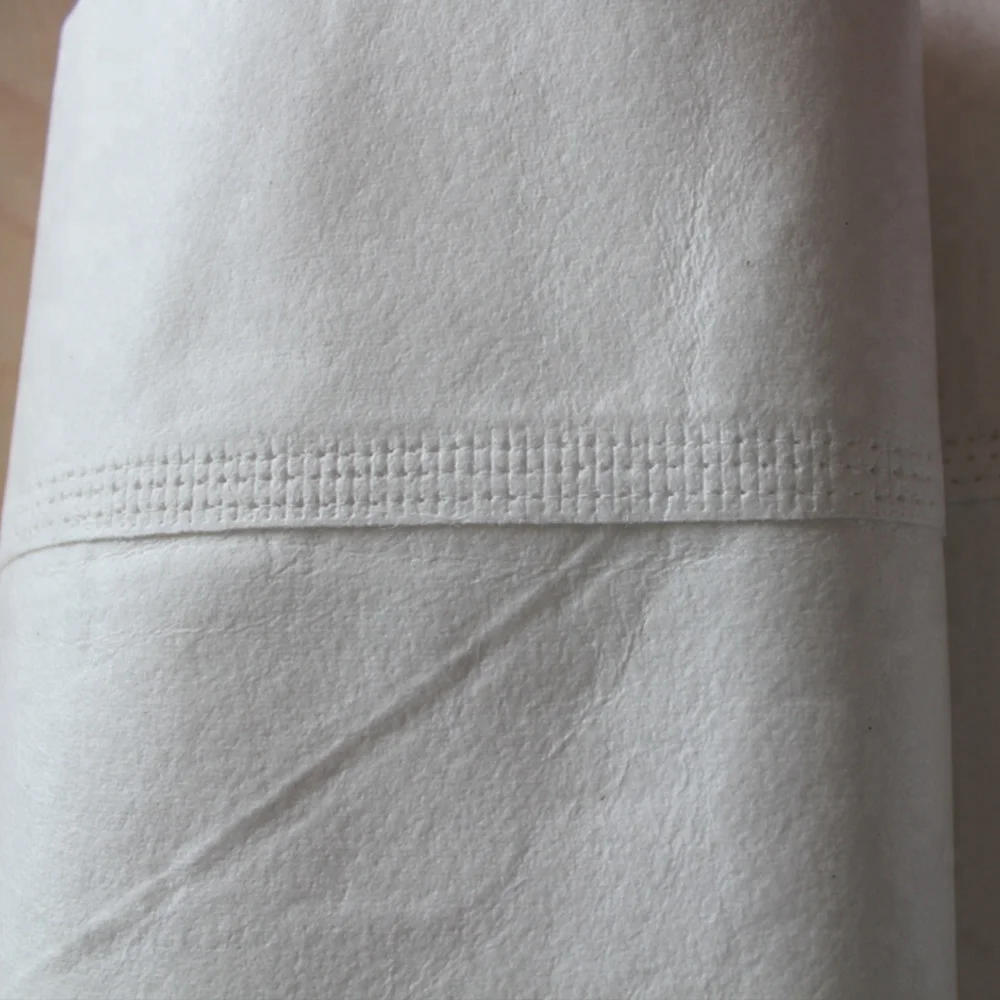

Needle Felt Polyester Filter Bags
|
Manufactured using a needle felting process, these filter bags have high physical strength and abrasion resistance, making them
suitable for environments that demand durability. |
|
|
Acid-Resistant Polyester Filter Bags
|
With additional acid resistance, these polyester filter bags are suitable for filtration operations in acidic environments.
|
|
|
PTFE-Coated Polyester Filter Bags
|
Featuring a polytetrafluoroethylene (PTFE) coating, these polyester filter bags provide outstanding resistance to chemical
corrosion and easy-cleaning characteristics. |
|
|
Classify according to polyester filter bag shape or cleaning method
|
||
|
Bag-shaped Polyester Filter Bags
|
This is the most fundamental and common shape for polyester filter bags, typically either rectangular or cylindrical, secured
through various sealing methods. |
|
|
Round Bottom Polyester Filter Bags
|
These bags have a round-shaped bottom, suitable for specific filtration equipment and applications that require improved fluid
distribution. |
|
|
Flat Polyester Filter Bags
|
Flat polyester filter bags often have a larger filtration surface area, making them suitable for applications that demand high
throughput and low airflow velocity |
|
|
Conical Polyester Filter Bags
|
Featuring a conical bottom, these polyester filter bags are applicable in situations where better particle sedimentation and
discharge are required. |
|
|
Pleated Polyester Filter Bags
|
Designed with a pleated structure to increase the filtration surface area, these bags enhance filtration efficiency and are
suitable for applications with higher filtration performance requirements. |
|
|
Pulse jet polyester filter bags
|
Pulse jet filter bags are a type of filter bag used in pulse jet dust collection systems. This type of filter bag is a common
industrial filtration material typically employed in dust removal equipment such as pulse jet baghouse dust collectors. |
|
|
Reverse air polyester filter bags
|
Reverse air filter bags are a type of filter bag used in reverse air dust collection systems. Designed to handle high dust loads
and large particulate environments, these filter bags are commonly employed in reverse air baghouse dust collectors, which are widely used industrial dust removal equipment. |
|
|

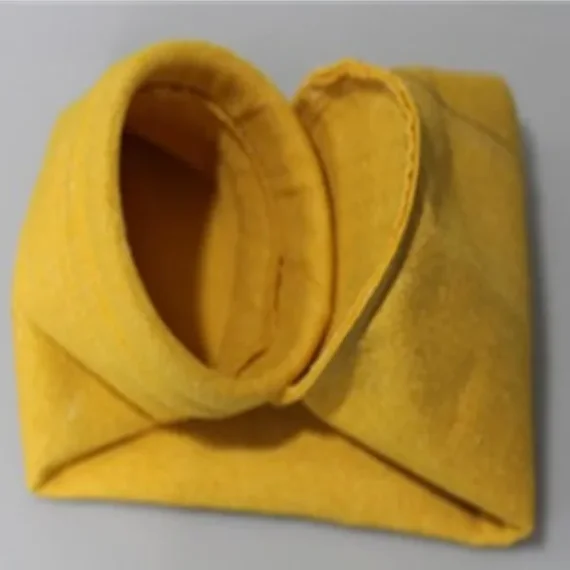

Envelope filter bag
|
Envelope filter bag refers to a filter bag with a specific design, similar to the appearance and shape of an envelope.
|
|
|
Basic commercial terms of polyester filter bag
|
||
|
Place of Origin
|
Shanghai, China
|
|
|
Brand Name
|
SFFILTECH
|
|
|
Certification
|
ISO
|
|
|
Minimum Order Quantity
|
10pcs (1pcs free sample)
|
|
|

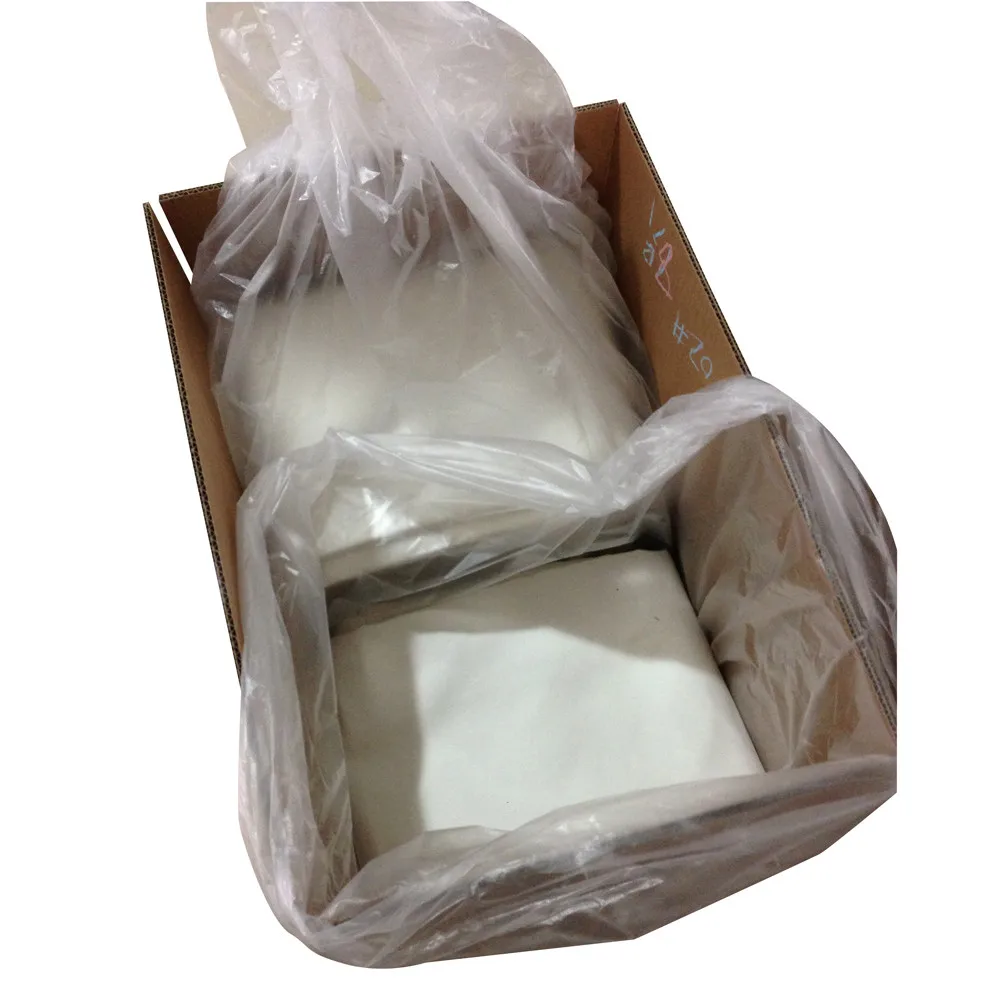

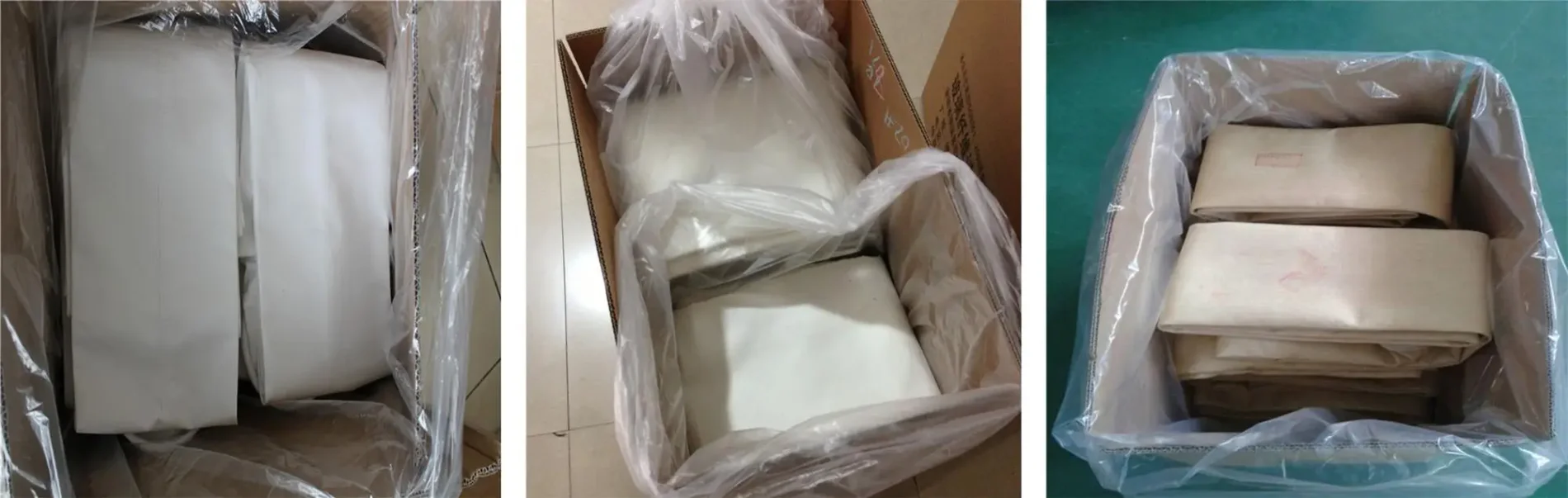

Packaging Details
|
The inner packing is in plastic bags The outer packing is in carton Large volume can also support custom packaging
|
|
|
Delivery Time
|
7-30days after deposit. According to the specific order quantity. 1-7days for sample
|
|
|
Port of shipment
|
Shanghai, Ningbo, Qingdao, Lianyungang, Guangzhou, Shenzhen or Others
|
|
|
Payment Terms
|
30% Deposit, balance TT on copy B/L. Other payment methods can be negotiated according to the order requirements
|
|
|
Supply Ability
|
100000pcs/month
|
|
|
OEM/ODM
|
Yes, we can support customized, like size, shape, material
|
|
|
After-sales Services
|
1 year warranty after we both sign the plant investigation usually for this one
|
|
Why Choose Our Polyester Dust Collector Filter Bags?
Our polyester dust collector filter bags are crafted with precision and care, ensuring superior filtration performance and durability. Made from high-quality polyester fiber, they offer excellent resistance to oxidation, chemicals, and abrasion, making them ideal for industrial use.
What Sets Us Apart?
As a factory-direct supplier, we offer competitive wholesale prices and the flexibility to customize filter bags according to your specific needs. Our commitment to quality and innovation ensures that each bag meets the highest standards, with ISO/CE/MSDS certifications guaranteeing safety and reliability.
How Can Our Filter Bags Benefit Your Business?
By choosing our polyester dust collector filter bags, you can improve air quality, maintain efficient industrial processes, and reduce maintenance costs. Their high filtration efficiency and durability ensure long-lasting performance, while our competitive pricing and excellent customer service make us the preferred choice for businesses worldwide.
