Description

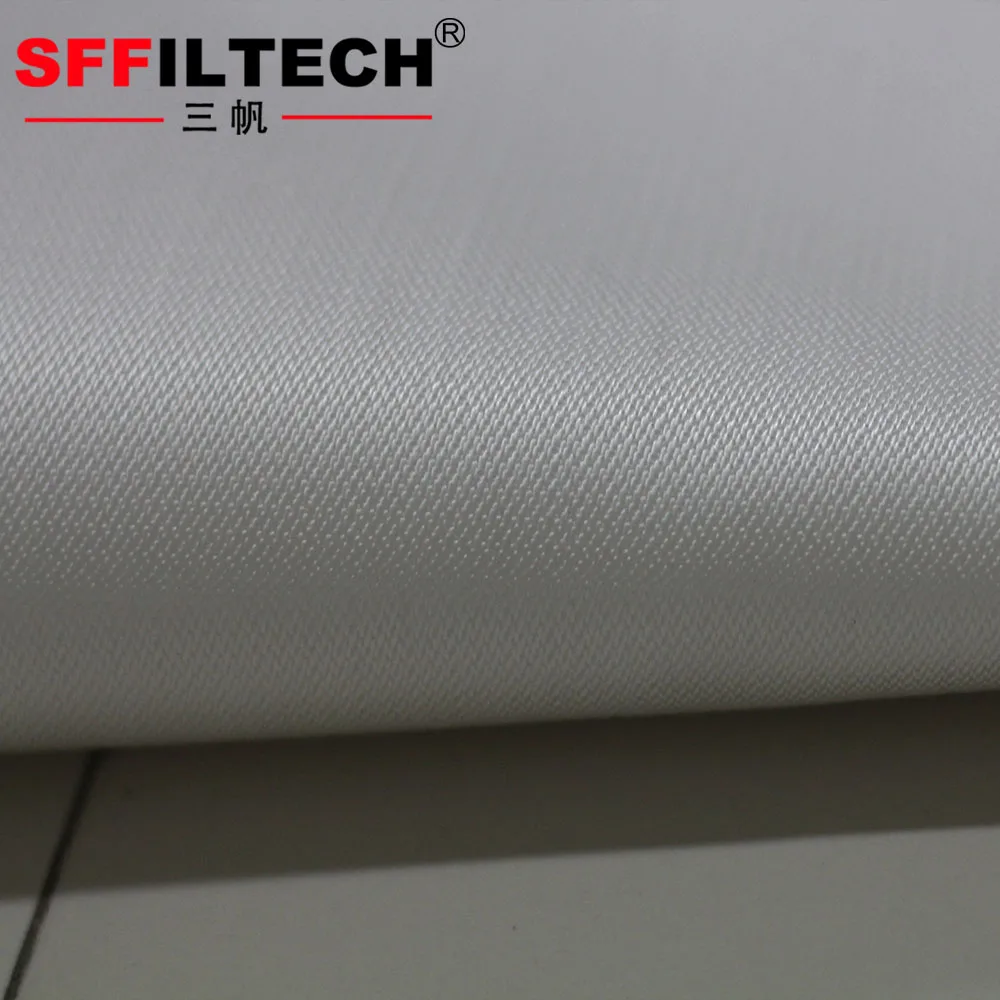

Key specifications include a variety of weaving types (plain, satin, twill), thickness options, and customizable sizes to fit your specific requirements. The cloth offers excellent resistance to acids, alkalis, and hydrolysis, making it suitable for a wide range of applications. Our product’s unique advantage lies in its high tensile strength, low moisture regain, and excellent air permeability, ensuring efficient filtration and long-lasting use.
As a factory supplier, we offer competitive pricing, fast delivery times, and the flexibility to accommodate both small and large orders. We also provide comprehensive after-sales service, including technical support and product warranties. Choose our Filter Press Cloth for reliable, high-performance filtration solutions.
|
Specs forpolyester needle felt
|
||||||||||
|
Material
|
Polyester/Polyester Scrim
|
Thickness
|
1.9
|
|||||||
|
Weight(g/sqm)
|
500
|
Density(g/cm³)
|
1.38
|
Air Permeability (m³/m²/min)
|
12~16
|
|||||
|
Warp Tensile Strength(N/5x20cm)
|
>1000
|
Weft Tensile Strenght(N/5x20cm)
|
>1300
|
Moisture Regain(20°C And 65% r. humidity)
|
0.10%
|
|||||
|
Warp Elongation(%)
|
<30
|
Weft Elongation(%)
|
<50
|
Support Combustion
|
Yes
|
|||||
|
Continuous Dry Heat Operation(°C)
|
135
|
Continuous Moist Heat Operation(°C)
|
94
|
Max Short Dry Heat Surge(Short Term)(°C)
|
150
|
|||||
|
Biological(Mildew, Bacteria)
|
fair
|
Alkalis
|
fair
|
Mineral Acids
|
fair
|
|||||
|
Organic Acids
|
fair
|
Oxidising Agents
|
good
|
Organic Solvents
|
good
|
|||||
|
Finishing
|
Singeing-calendering-heat setting
|
|||||||||
|
Product Applications
|
Chemical/ Steel/Waste Incineration/Thermoelectricity/Construction Material
|
|||||||||
|
Usage
|
Air Filter
|
|||||||||
|
Type
|
Filter Felt
|
|||||||||
|
Specialized in supplying
|
||||||||||
|
1. Needle puched felt 2. Woven filtration fabric 3. Filter bags 4. Filter cages 5. Filter tubing automatic production line
|
||||||||||
|
Item
|
Polyproplene filter felt
|
|
Construction
|
Needle felt
|
|
Fibre Composition
|
Polyproplene or nylon
|
|
Micro rating
|
1um 5um 10um 25um 50um 75um 100um 125um 150um 200um 250um 300um
|
|
Continuous Temperature
|
90℃
|
|
Peak Temperature
|
95℃
|
|
Resistance Hydrolysis
|
Excellent
|
|
Resistance to Acids
|
Excellent
|
|
Resistance to Alkalis
|
Excellent
|
|
Resistance to Oxidation
|
Restrict
|
|
PHvalue
|
1-14
|
|
Application
|
Application to food ,flour.sugar,fertilizer,electropating and pesticide industries
|
|
Remark
|
Restrict resistance to oxidation,but excellent resistance to hydrolysis
|
|
Item
|
Dia(inch)
|
length
|
mm
|
|
1#
|
7″
|
17″
|
180X420
|
|
2#
|
7″
|
32″
|
180X810
|
|
3#
|
4″
|
9″
|
102X230
|
|
4#
|
4″
|
15″
|
102X410
|
|
5#
|
6″
|
22″
|
152×559
|
|
Material
|
PE,PP,NMO
|
|
Bag top ring
|
Plastic ring, Stainless steel ring
|
|
Relative filtration pore size
|
0.5, 1,5, 10, 25, 50, 100, 200 ,300µm
|
|
Type
|
various specifications
|
|
Airtight method:
|
Hot Melt, reverse sewing
|
|
Effective filtration area
|
various specifications
|
|
Others
|
special requirement of diameter and collar extension can be customized
|
|
Dust filtration
filter bag
|
Polyester filter bag
Nomex dust filter bag ( nomex scrim or fiber glass scrim)
Pps dust filter bag
P84 dust filter bag
fiber glass filter bag
and so on
|
||||
|
Liquid filtration
|
Micro Polyester filter bag Micro PP filter bag Nylon filter bag Stainsteel filter bag and so on |
||||
|
Machines for dust filtration
|
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
|
||||
|
Usagae/Occasion
|
– Biomass power stations
– Chemical and pharmaceutical industry – High temperature dedusting – Coal-fired power stations – Food industry – Non-ferrous metal and steel production – Cement, gypsum and lime industry – Thermal waste treatment |
||||
|
About us
|
1.Trade Assrurance, with trade assurance,you’ll enjoy: 100% product quality protection
100% on-time shipmeng protection
100% payment protection for your covered amount
2.Gold supplier
3.We accept transactions via alibaba.com
4.Payment protection
5.on-time shipment
6.wholesal low MOQS
7.Popular Buying requests for”filter bag”and “Nut milk bag”
|
||||
|
Size and Design
|
Any size is avaiable, we will follow you size and design
|
||||
|
MOQ(small order accept)
|
50pcs is also accept
|
||||
|
Price
|
We are factory(Our factory add for you check at any time)
|
||||
|
Delivery time
|
Samples: usually shiped one day, orders, 2000pcs filter bags mass 7-15days.biggest order depengds on your quantity.
|
||||
|
Package Detail
|
We have general packing,paper carton with plastic bag inside, some time with pallets.
|
||||
|
Warm Tips
|
More products details,our advantage,package detail,delivery time, samples and so on
|
||||

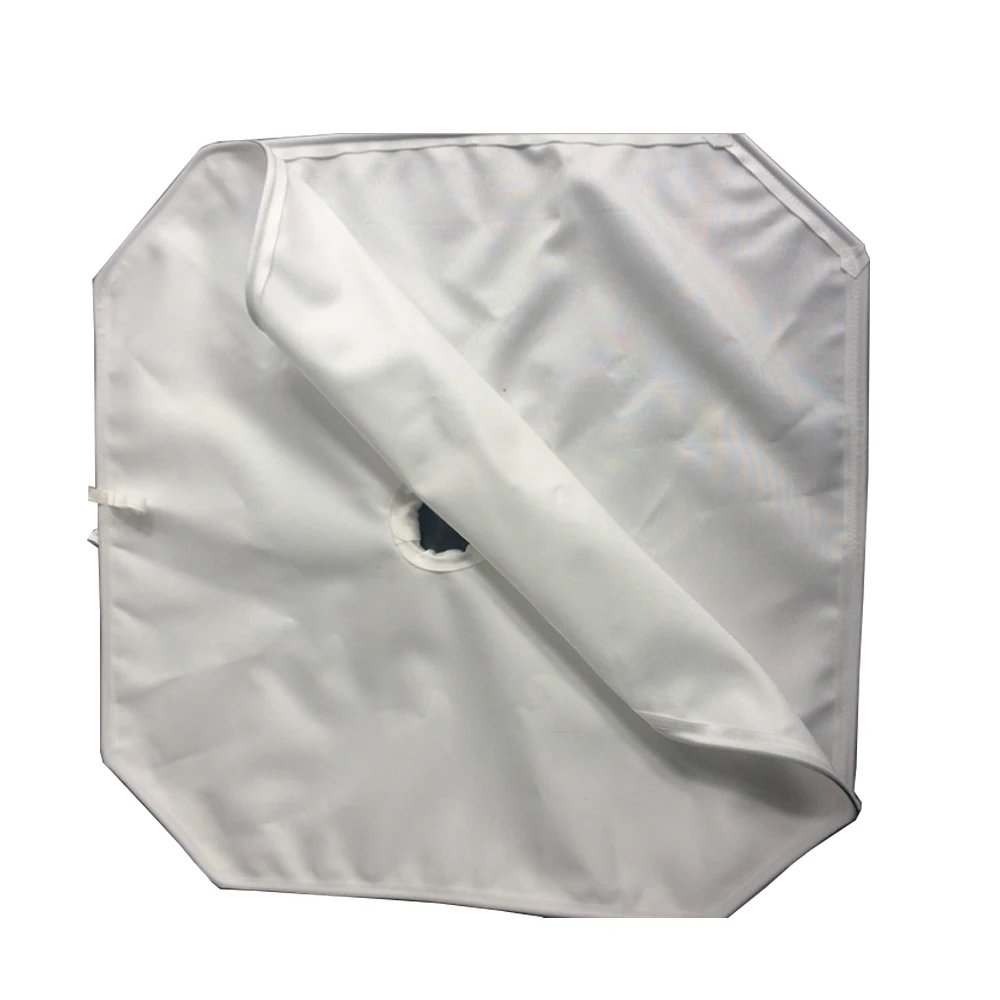

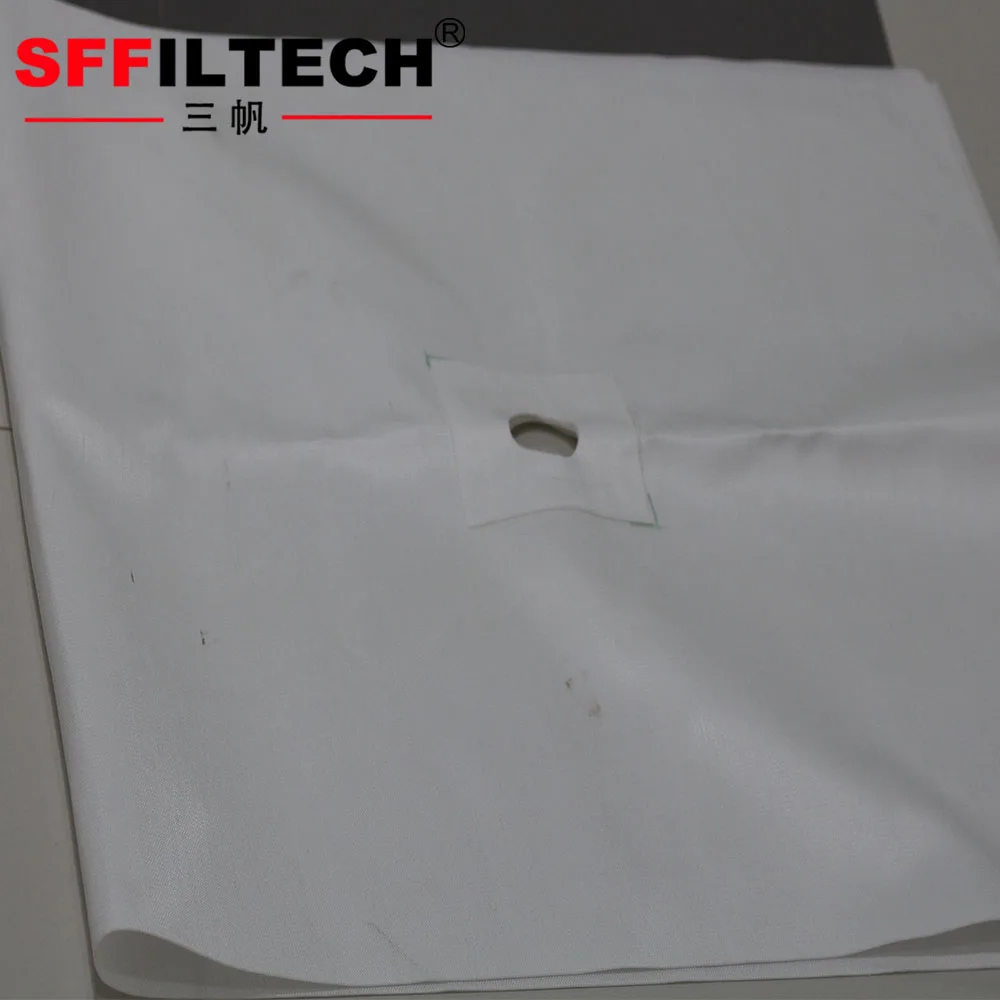

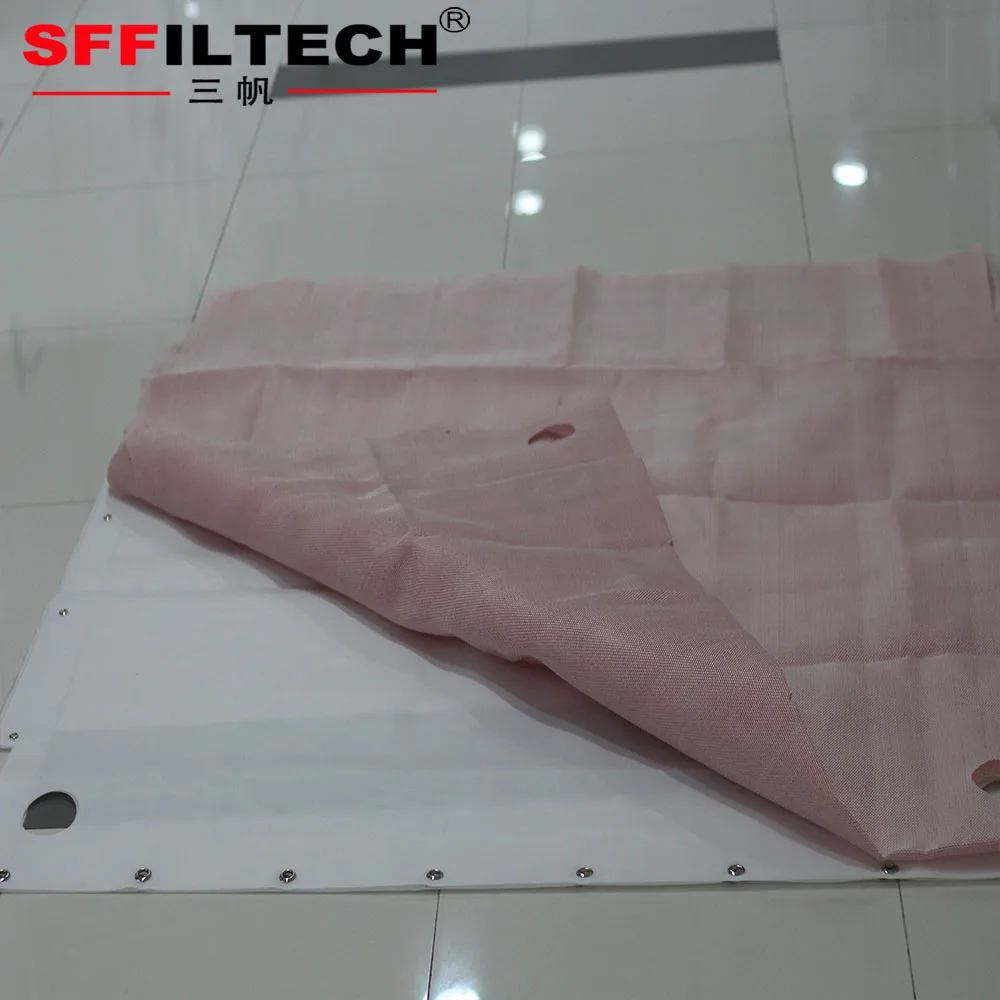

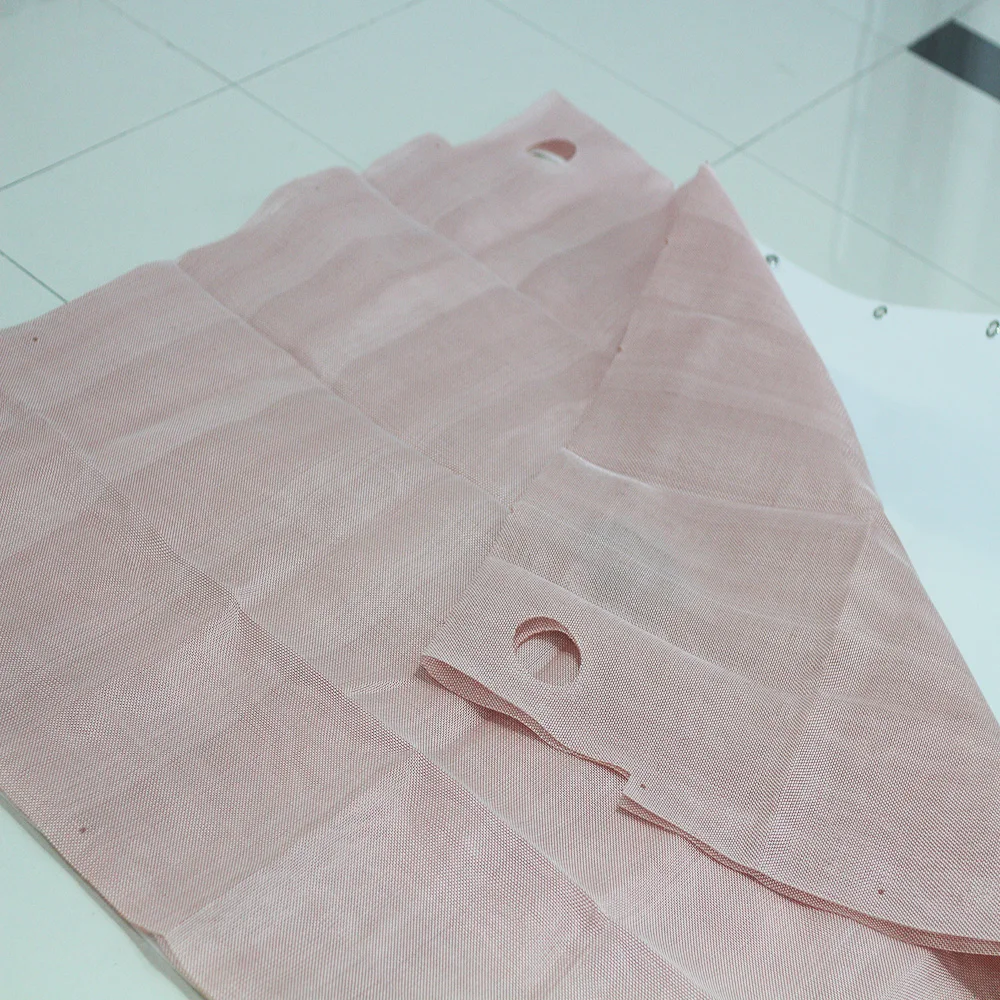

Why Choose Our Filter Press Cloth?
Our Filter Press Cloth stands out for its superior quality and performance. Made from premium materials like PP, Polyester, and Cotton, it offers excellent resistance to acids, alkalis, and hydrolysis, ensuring long-lasting durability in harsh environments. The cloth's high tensile strength and low moisture regain make it ideal for efficient filtration in various industries.
What Are the Key Advantages?
As a factory supplier, we offer competitive pricing and fast delivery times. Our product is ISO9001 certified, guaranteeing eco-friendly performance and reliability. With customizable sizes and weaving types, our Filter Press Cloth can be tailored to meet your specific needs. Additionally, we provide comprehensive after-sales service, including technical support and product warranties.
How Does It Benefit Your Business?
Choosing our Filter Press Cloth means investing in a high-performance filtration solution that can enhance your business's efficiency and productivity. Its excellent filtration capabilities can reduce maintenance costs and downtime, leading to increased profitability. Plus, our factory-direct pricing and wholesale options make it a cost-effective choice for businesses of all sizes.
