Description
Delivering superior air quality and prolonged filter lifespan for cost-effective operations.
Paint Booths – Efficient Filtration, Extended Life
Inertial Separation Principle
Enhances filtration efficiency by forcing air to change direction, trapping particles effectively.
High Dust Holding Capacity
Up to 20kg/m², reducing the frequency of filter replacements.
Long Lifespan
Up to six times longer than other paper filters, saving costs over time.
Non-Flammable
Meets DIN53438F1/K1 standards, ensuring safety in hazardous environments.
Features

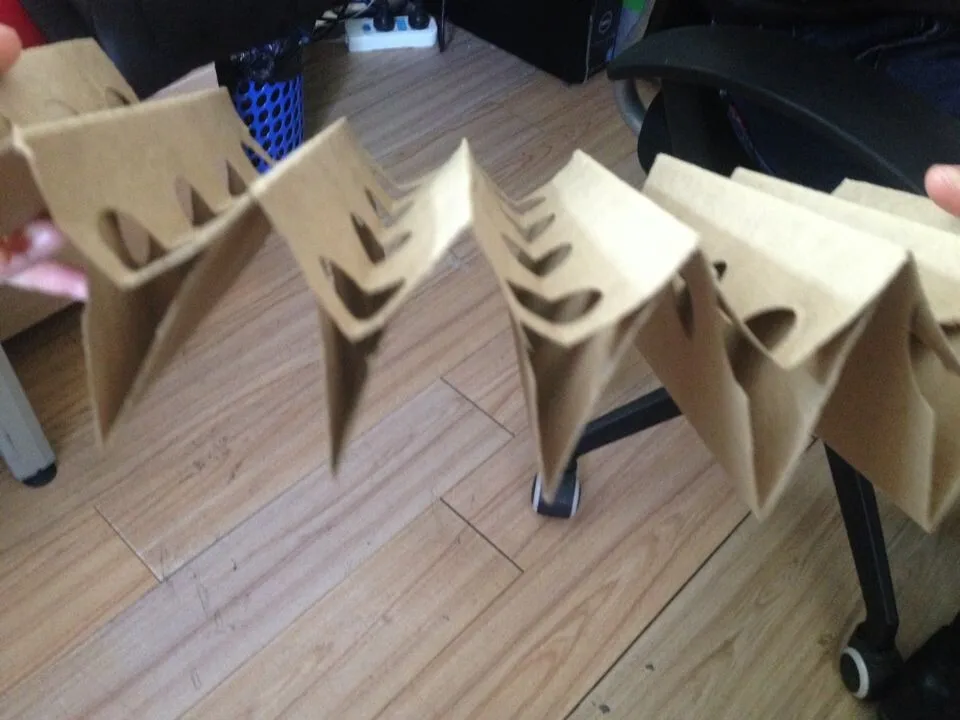

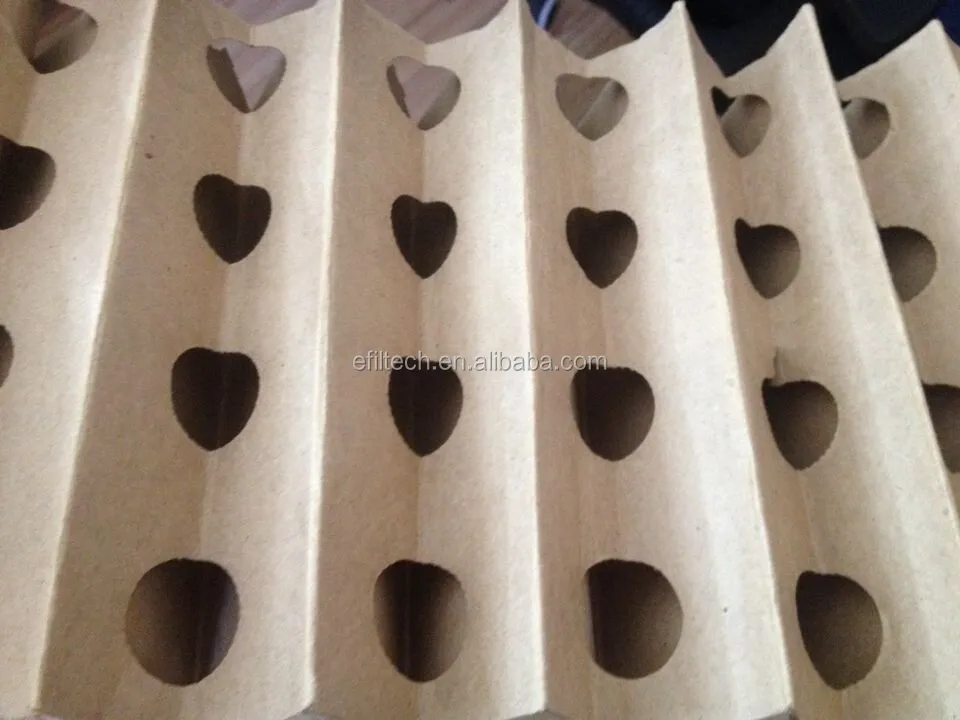

The Spray Booth Cardboard Filter Paper utilizes an accordion-style design, incorporating the inertial separation principle for effective particle capture. Its standard dimensions include 0.75*10m, 0.9*11m, and 1*10m, with a depth of 60mm. The filter paper is available in brown/white colors and boasts a high efficiency rate of 98.0%.
Benefits
This filter paper significantly improves air quality in paint booths by removing solid and liquid particles from the air, ensuring a uniform flow effect. Its low resistance and high efficiency contribute to reduced energy consumption and enhanced operational efficiency. The extended lifespan and high dust holding capacity translate to cost savings and minimized downtime for filter replacements.
Use Cases
Ideal for automotive and industrial painting applications, the Spray Booth Cardboard Filter Paper effectively filters out contaminants, protecting both the environment and the equipment. Its robust design and high efficiency make it suitable for high-solid-content gas environments, ensuring consistent performance even under demanding conditions.
|
specification of paint booth accordion style filter |
|||||||
|
Sizes |
Color |
Depth |
Efficiency |
Dust Holding Capacity |
Recommended Air Velocity |
Recommended Final Pressure |
Initial Pressure Air Velocity |
|
0.75*10m |
Brown/White |
60mm |
98.0% |
18-20kg/m2 |
0.25-1.00m/s |
128Pa |
12Paat0.5m/s |
|
0.9*11m |
30Paat0.75m/s |
||||||
|
1*10m |
55Paat1.00m/s |
||||||
Why Choose Our Spray Booth Cardboard Filter Paper?
Our filter paper is designed to maximize air quality in paint booths, utilizing the inertial separation principle for superior particle capture. Its high dust holding capacity and extended lifespan reduce operational costs and downtime.
How Does It Work?
The accordion-style design forces air to change direction multiple times, trapping heavier particles on the folded area until saturation. This ensures clean airflow and protects your equipment from contaminants.
Where Is It Used?
Perfect for automotive and industrial painting, our filter paper effectively removes solid and liquid particles from the air, maintaining a uniform flow and protecting the environment.
