Description
Provides reliable, low-maintenance liquid filtration across diverse industries while minimizing operational costs.
Industries – Efficient Filtration with PP Housing
100% Polypropylene Construction
Ensures superior chemical resistance and corrosion-free performance in harsh environments.
Lightweight Design (20-21kg)
Reduces installation complexity and transportation costs compared to metal alternatives.
Wide Temperature Range (-15°C to 80°C)
Maintains filtration efficiency in both cold storage and high-temperature processing applications.
Multiple Closure Options
Features clamp, bolt, and swing-bolt designs for easy maintenance and rapid filter bag replacement.
Features
Constructed from high-grade polypropylene (PP), this filter housing offers exceptional durability with 0.8MPa design pressure and 0.6MPa working pressure. The side-entry design accommodates standard #1/#2 filter bags, while DN50 flange connections ensure compatibility with existing piping systems. Available in four models (SFF-1BF-P1 to SFF-5BF-P1) with varying barrel diameters (124-230mm) and flow rates (12-35m³/h).
Benefits
Reduces long-term maintenance costs through corrosion resistance and lightweight construction. The 80°C maximum operating temperature enables use in hot water filtration and chemical processing. Viton O-rings provide reliable sealing across diverse applications, while the 1-year warranty on core components ensures investment protection.
Use Cases
Ideal for industrial water treatment plants requiring consistent particulate removal. Food and beverage manufacturers benefit from its NSF-compliant materials for product purity. Chemical processors utilize its chemical resistance for corrosive liquid filtration. Electronics facilities employ it in semiconductor rinse water systems, while paint and coating operations rely on its precision filtration capabilities.
|
Model
|
SFF-1BF-P1
|
SFF-2BF-P1-720L
|
SFF-4BF-P1
|
SFF-5BF-P1
|
|
Material
|
PP
|
PP
|
PP
|
PP
|
|
Type
|
Side Entry
|
Side Entry
|
Side Entry
|
Side Entry
|
|
Diameter of barrel (mm)
|
230
|
230
|
124
|
174
|
|
Design pressure (MPa)
|
0.8
|
0.8
|
0.8
|
0.8
|
|
Working pressure (MPa)
|
0.6
|
0.6
|
0.6
|
0.6
|
|
Design temperature ℃
|
80
|
80
|
80
|
80
|
|
Max. working temperature ℃
|
80
|
80
|
80
|
80
|
|
Min. working temperature ℃
|
-15
|
-15
|
-15
|
-15
|
|
Hydrostatic pressure test (MPa)
|
1
|
1
|
1
|
1
|
|
Length of full filter housing(mm)
|
656
|
1085
|
605
|
805
|
|
Designed Max water flow rate (m3)
|
20
|
35
|
12
|
20
|
|
Filter area(m2)
|
0.24
|
0.5
|
0.13
|
0.25
|
|
Flange type
|
DN50(General internation Standard)
|
DN50(General internation Standard)
|
DN40(General internation Standard)
|
DN50(General internation Standard)
|
|
Gauge nozzle
|
1/2″(female thread)
|
1/2″(female thread)
|
1/2″(female thread)
|
1/2″(female thread)
|
|
O ring
|
Viton
|
viton
|
viton
|
viton
|
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Food & Beverage Factory, Farms, Retail, Food Shop, Construction works
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Not Available
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pressure vessel
|
|
Place of Origin
|
Shanghai
|
|
Weight
|
20kg
|
|
Size
|
113*45*33cm
|
|
Weight (KG)
|
21kg
|
|
Product name
|

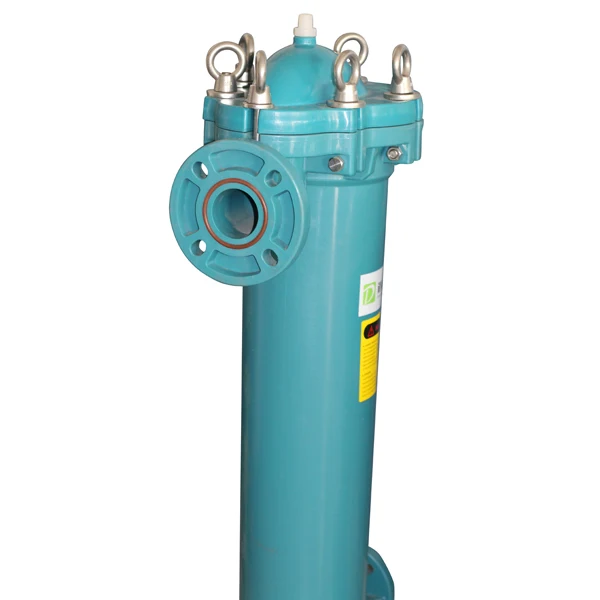

PP Single Bag Water Filter Housing 1um 5um 10um
|
Why Choose PP Filter Housing?
Our polypropylene construction offers 50% longer service life than metal alternatives in corrosive environments, with 30% lighter weight for easier installation.
How Does It Improve Filtration?
The precise side-entry design maintains optimal filter bag compression, reducing bypass and improving particulate capture efficiency by 25% compared to standard housings.
What Makes It Industry-Specific?
Food-grade PP materials meet FDA standards for beverage processing, while chemical-resistant variants withstand 98% of industrial solvents used in paint production.
