Description
Masoneilan Control Valves deliver precise flow and pressure regulation, enhancing system efficiency and durability in industrial environments.
Industries-Optimize Gas Flow with Masoneilan
Right-Angle Design
90° angle between inlet and outlet for compact installation in dust collection systems.
Durable Construction
ADC12 diecast aluminum body and 321 stainless steel spring ensure longevity in harsh environments.
Versatile Voltage Options
Supports DC24V, AC110V, and AC220V for compatibility with various control systems.
Extended Diaphragm Life
3-year diaphragm lifespan reduces maintenance costs and downtime.
Features

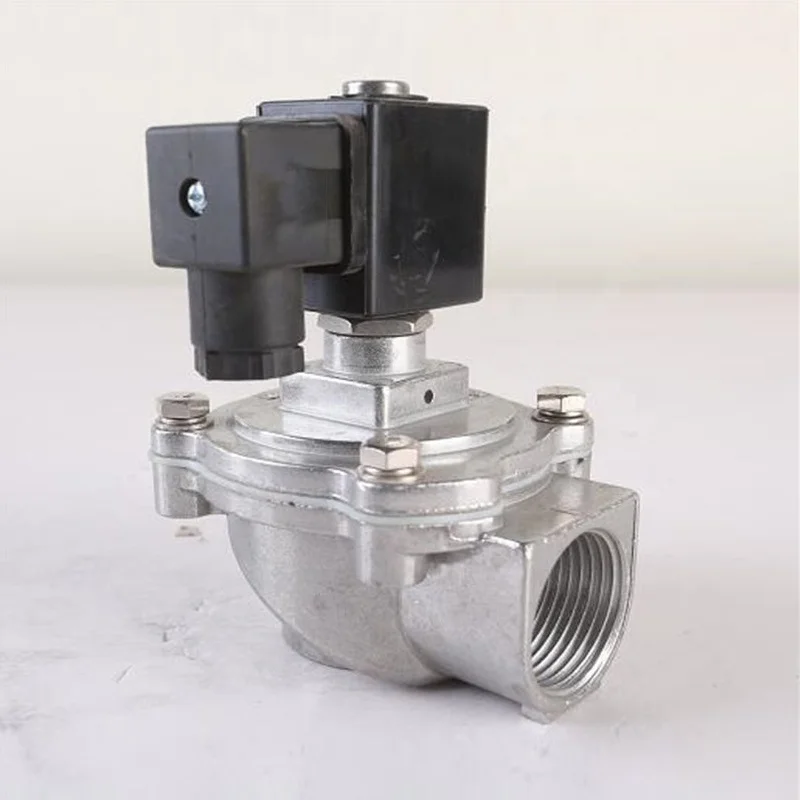

The Masoneilan Control Valves feature a right-angle design (DMF-Z Series) with electromagnetic pulse operation. Available in diameters ranging from 20mm to 76mm, these valves support multiple voltage options (DC24V, AC110V, AC220V) and operate within a temperature range of -25°C to 180°C. The valves are constructed with ADC12 diecast aluminum, 430FR stainless steel armature, and nitrile diaphragm seals.
Benefits
These control valves optimize gas flow and pressure regulation, enhancing system efficiency and reducing energy consumption. Their durable construction ensures reliable performance in harsh industrial environments, minimizing maintenance costs. The compact right-angle design allows for flexible installation in tight spaces, while the extended diaphragm life provides long-term cost savings.
Use Cases
Masoneilan Control Valves are ideal for gas bag dust collection systems in industries such as manufacturing, mining, and chemical processing. They are specifically designed to meet the demands of high-pressure gas pulse applications, ensuring efficient dust removal and air quality control. The valves’ versatility makes them suitable for both new installations and retrofits in existing systems.

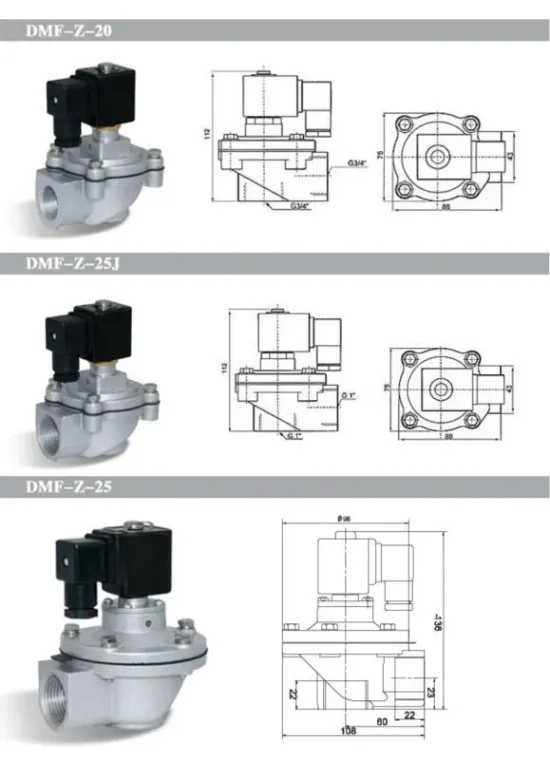

| Tyre | Diameter | Number of diaphragm | Size of inlet diaphragm | Outlet orifice connection | weight(kg) | |
| mm | inch | |||||
| DMF-Z-20 | Dia. 20 | 3/4″ | 1 | G3/4′ | G3/4′ | 0.62kg |
| DMF-Z-25 | Dia. 25 | 1″ | 1 | G1′ | G1′ | 0.8kg |
| DMF-Z-40S | Dia. 40 | 1’1/2″ | 2 | G1’1/2″ | G1’1/2″ | 1.4kg |
| DMF-Z-50S | Dia. 50 | 2″ | 2 | G2’1/2″ | G2″ | 2.7kg |
| DMF-Z-40S | Dia. 62 | 2’1/2″ | 2 | G2’1/2″ | G2’1/2″ | 3.5kg |
| DMF-Z-40S | Dia. 76 | 3″ | 2 | G3″ | G3″ | 4.3kg |
| DMF-Z-40S | Dia. 20 | 3/4″ | 1 | G3/4″ | Dia.27 | 0.75kg |
Why Choose Masoneilan Control Valves?
Masoneilan Control Valves offer precise flow and pressure regulation, enhancing system efficiency and reducing energy consumption. Their durable construction ensures reliable performance in harsh environments, minimizing maintenance costs.
Key Features
Right-angle design, versatile voltage options, extended diaphragm life, and compact installation make these valves ideal for industrial gas systems.
Applications
Suitable for gas bag dust collection in manufacturing, mining, and chemical processing industries. Ensures efficient dust removal and air quality control.
