Description
Providing superior filtration performance and durability for industrial applications.
Industries-Enhanced Filtration Efficiency
500gsm Aramid Construction
Offers exceptional strength and durability, ensuring long-lasting performance in harsh environments.
1 Micron Filtration
Provides ultra-fine filtration, effectively capturing even the smallest particles for cleaner air.
High Breaking Strength
Withstands high pressure and tension, reducing the risk of bag failure and downtime.
Temperature Resistant
Operates effectively at temperatures up to 240°C, suitable for high-temperature industrial processes.
Features

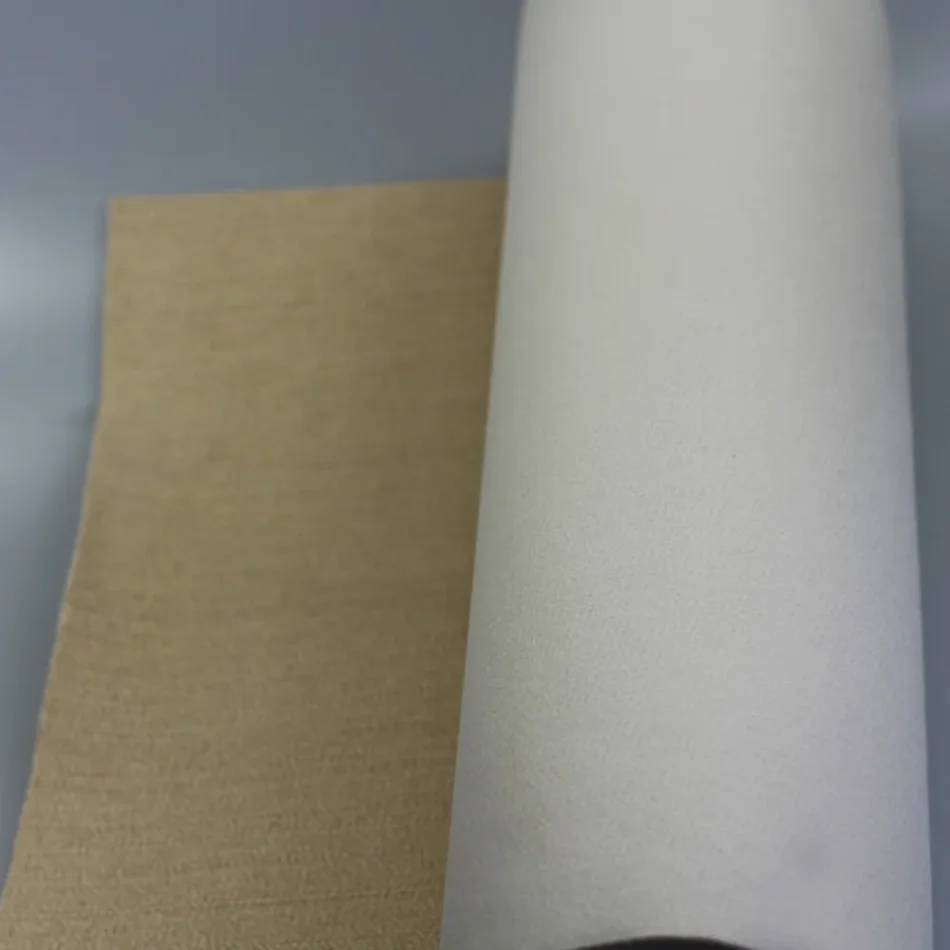

The filter bag is constructed from 500gsm aramid needle felt, featuring a scrim composition of aramid for added strength. It has a felt area weight of 500g/m² (±5%) and a thickness of 1.8-1.9mm. The bag offers a mean air permeability of 15-17 m³/m²/min, ensuring efficient airflow while maintaining filtration performance.
Benefits
Customers benefit from the filter bag’s high breaking strength in both warp and weft directions (900 N/5cm and 1200 N/5cm, respectively), ensuring reliability under heavy loads. Its low dry shrinkage (<1.5% in both directions) maintains dimensional stability during operation. The heat-set, singed, and calendared membrane finish enhances filtration efficiency and extends bag life.
Use Cases
This filter bag is ideal for use in dust collection systems, air purification units, and other industrial applications requiring high-efficiency filtration. It is particularly suited for industries such as cement production, metal processing, and chemical manufacturing, where fine particle capture is critical for maintaining air quality and protecting equipment.
|
Item
|
500gsm aramid filter filter sock
|
|
Construction
|
Needle felt
|
|
Fibre Composition
|
aramid
|
|
Scrim Composition
|
aramid
|
|
Felt Area Weight
|
500g/m2(±5%)
|
|
Thickness
|
1.8-1.9mm
|
|
15-17Mean Air Permeability
|
15-17 (m³/m²/min)
|
|
Breaking Strength-MD(warp)
|
900 N / 5cm
|
|
Breaking Strength-CMD(weft)
|
1200 N / 5cm
|
|
Breaking Elongation( N/5cm)-MD(warp)
|
20%
|
|
Breaking Elongation( N/5cm)-CMD(weft)
|
39%
|
|
Dry Shrinkage MD(130℃warp)
|
<1.5%
|
|
Dry Shrinkage CMD(130℃weft)
|
<1.5 %
|
|
Operating Temperatures
|
<204 deg C
|
|
Recommended Maximum Continuous
|
240deg C
|
|
Recommended Maximum Surge
|
240deg C
|
|
Finish
|
Heat set, singed, calendared membrane
|
Why Choose Our Filter Bag?
Our filter bag stands out with its 1 micron filtration capability, ensuring the capture of even the smallest particles. Its aramid construction provides exceptional strength and durability, making it suitable for harsh industrial environments.
How Does It Benefit You?
By using our filter bag, you can achieve cleaner air, reduce equipment wear, and minimize downtime. Its high breaking strength and temperature resistance ensure reliable performance, even in demanding conditions.
Where Can It Be Used?
Our filter bag is versatile and can be used in various industrial settings, including cement plants, metal processing facilities, and chemical manufacturing plants. It is an excellent choice for dust collection and air purification systems.
