Description
Provides reliable and high-efficiency dust collection solutions to meet environmental standards and protect worker health in various industrial settings.
Industries – Comply with Regulations – High Efficiency
High Filtration Efficiency (≥99.9%)
Ensures clean air output, meeting strict environmental standards.
Automatic Pulse Cleaning
Continuous operation without manual intervention, reducing downtime.
Modular Design
Easy maintenance and customization for different industrial needs.
Temperature Tolerance up to 260°C
Adaptable to high-temperature environments, ensuring durability.
Features

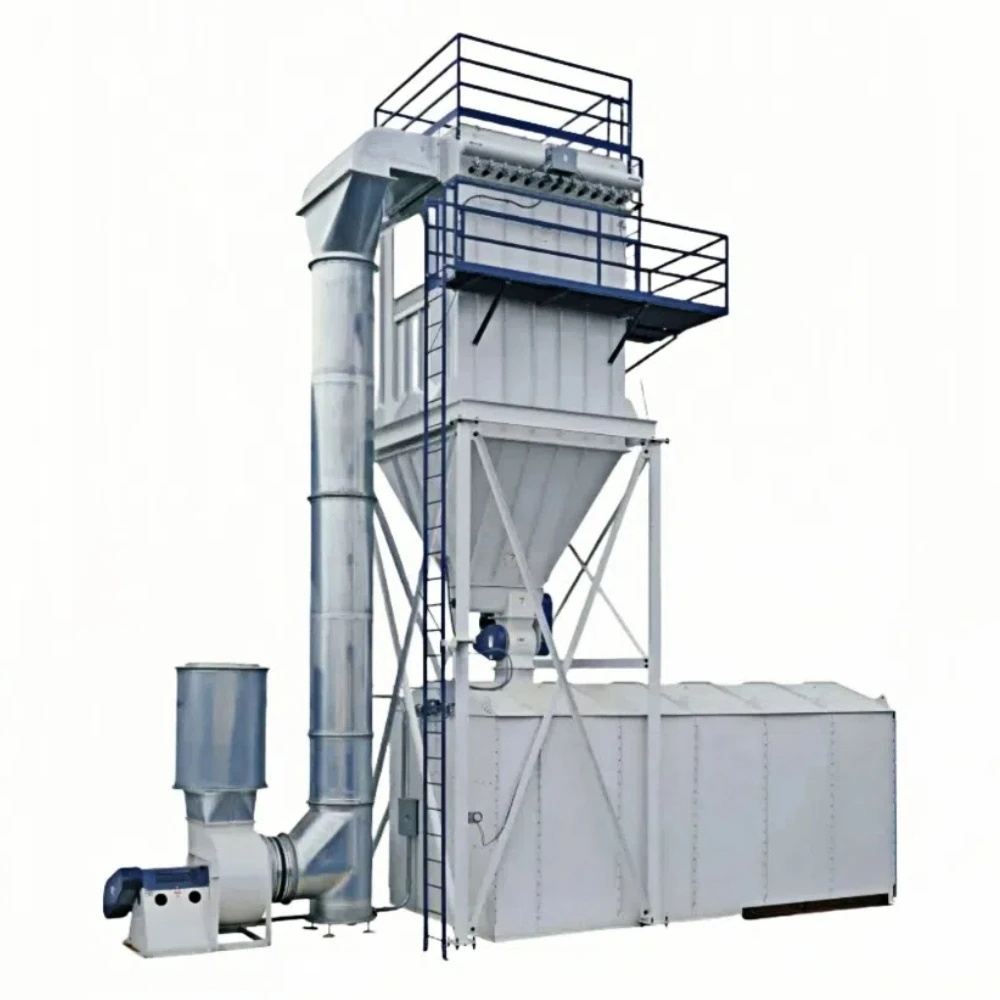

The Anti-static Industrial Pulse Jet Baghouse features a PLC automatic control system for seamless operation. It is constructed with stainless steel and PTFE materials, ensuring durability and resistance to corrosion. The baghouse comes with a HEPA filter type, providing high filtration efficiency (≥99.9%). It supports single-phase power, with options for 4kW or 5.5kW, and operates on voltages of 380V or 220-240V. The dimension is 1300*1300*2200mm, with a weight of 800kg. The baghouse is equipped with a 1-year warranty and customized installation options.
Benefits
The Anti-static Industrial Pulse Jet Baghouse offers significant benefits to industries. Its high filtration efficiency ensures clean air, protecting worker health and meeting environmental regulations. The automatic pulse cleaning feature reduces manual maintenance, saving time and costs. The modular design allows for easy customization, adapting to various industrial needs. Its temperature tolerance up to 260°C makes it suitable for high-temperature environments, ensuring long-lasting performance.
Use Cases
The Anti-static Industrial Pulse Jet Baghouse is widely used in various industries. In cement and concrete plants, it effectively removes dust during material handling, clinker cooling, grinding, and packing processes. For boilers and power plants, it filters flue gas dust in coal-fired and biomass boilers, handling high-temperature dust-laden gas efficiently. In mining and metal processing, it controls dust in crushing, screening, conveying, and smelting operations, protecting workers and equipment. Woodworking and furniture manufacturing benefit from its ability to collect sawdust and fine wood particles, maintaining a clean production environment. Additionally, it is used in agriculture and feed processing, food processing, asphalt and construction materials, and other industrial manufacturing sectors.
|
item
|
value
|
|
Writing width
|
1.5MM, 1.0mm
|
|
Phase
|
Single Phase
|
|
Material
|
Stainless Steel, PTFE
|
|
Power
|
4kW, 5.5kw
|
|
condition
|
New
|
|
minimum particle size
|
1-10μm
|
|
place of origin
|
Shanghai,China
|
|
brand name
|
SFFILTECH
|
|
dimension(l*w*h)
|
1300*1300*2200mm
|
|
weight
|
800
|
|
warranty
|
1 Year
|
|
Installation
|
Customized
|
|
Voltage
|
380V, 220-240V
|
|
Horsepower
|
10HP
|
|
Filter Type
|
Hepa Filter
|
|
Maximum Sound Rating
|
65dba
|
|
Tank Size
|
16 gal, 17 gal
|
|
Number Of Adaptor Inlets
|
1, 2, 3
|
|
Main Inlet Diameter
|
6IN, 8in
|
|
Upper Filter Type
|
Hepa Filter
|
|
Lower Collector Capacity
|
28gal, 10cuft
|
|
Timer Setting
|
8hr
|
|
Filter Efficiency
|
99.9%
|
|
Maximum Air Flow
|
900cfm
|
|
Product name
|
Dust Pulse Jet Baghouse
|
|
Temperature tolerance
|
260Deg.
|
|
Work Principle
|
PLC automatic control
|
|
Medium
|
Dry dust
|
|
Packet
|
Wood Box
|
SFFiltech Dust Collector Selection Guide
Reliable Design • Precise Filtration • Proven Performance
At SFFiltech, we understand that every dust collection project is unique. The efficiency and reliability of a dust collector depend on accurate system design and the quality of its components.
That’s why we combine professional engineering expertise with meticulous manufacturing standards to deliver durable, high-performance baghouse systems for industrial air filtration.We make design within 2-3 days and 3D file after customers order confirmed to get right dust collector for customers.
🔹 1. Key Parameters for Dust Collector Selection
Before selecting a dust collector, it’s essential to analyze the working conditions and dust properties to ensure long-term stability and efficiency.
SFFiltech engineers evaluate the following parameters for every project:
Air Flow Volume (Nm³/h) — Determines the overall capacity and filter area.
Dust Characteristics — Sticky, oily, conductive, or explosive dusts require customized filter media and anti-static protection.
Gas Temperature & Humidity — Define suitable filter materials such as Polyester, PPS, Nomex, P84, or PTFE membrane.
Dust Concentration & Particle Size — Affect filter area and cleaning frequency.
Explosion Protection — Ensures safe operation under NFPA or ATEX standards.
Installation Space & Discharge System — Determine layout (top or side entry), hopper design, and ash removal method.
Each parameter is carefully considered to design a solution that not only meets emission standards but also minimizes maintenance and operation costs.
🔹 2. SFFiltech Manufacturing Advantages
SFFiltech dust collectors and filter components are built to the highest mechanical and sealing standards:
Precision Welding & Robust Structure
Every housing, flange, and internal frame is argon-arc welded with uniform seams, ensuring leak-free and vibration-resistant construction even under high pressure or temperature fluctuations.
Smooth Inner Surfaces
The internal surface of our filter housings and cages is polished and smooth, minimizing dust accumulation and wear on filter bags, which significantly extends service life.
High-Quality Filter Media
All filter bags are made from premium needle-felt or PTFE-membrane materials. They feature stable pore distribution, consistent permeability, and high tensile strength, guaranteeing stable filtration efficiency and easy cleaning.
Reliable Pulse Cleaning System
SFFiltech pulse-jet systems use precision-made solenoid valves and stainless-steel blow pipes to ensure consistent air pulses, maintaining low differential pressure and stable performance over years of operation.
Strict Quality Control
Each dust collector undergoes pressure testing, leak detection, and surface inspection before shipment.
From raw material inspection to final assembly, every step follows ISO-certified procedures to ensure reliability in every detail.
🔹 3. Filter Media Selection by Application
| Application | Recommended Filter Media | Key Benefits |
| General industrial dust | Polyester needle felt + PTFE membrane | Cost-effective, stable performance |
| High-temperature flue gas | PPS / Aramid (Nomex) | Excellent temperature resistance up to 200 °C |
| Chemical or corrosive gases | PTFE / P84 | Strong chemical resistance, anti-adhesion |
| Explosive / conductive dust | Anti-static treated felt | Safe operation under NFPA / ATEX |
| Fine powder & PM 2.5 | PTFE membrane | Ultra-low emission, long service life |
🔹 4. Why Choose SFFiltech
With 20+ years of filtration experience in dust and liquid applications
Global service support and local engineering teams to guarantee 24 hours service
Customized design for your plant’s actual process and layout
Durable construction — welded firmly, sealed smoothly, designed for decades of service
One-stop supply for bags, cages, pulse valves, and full dust collector systems
🌎 SFFiltech — Filtration Beyond Expectation
From design to delivery, SFFiltech ensures that every dust collector reflects our commitment to quality, safety, and performance.
Whether it’s a compact unit for small process lines or a large industrial baghouse for cement, steel, or biomass industries, our team provides a solution engineered to perform — strong, stable, and smooth in every detail.
Basic information of dust collector quotation
|
No. |
Item | Description / Unit | Customer Data | |
| 1 | Air flow rate | Nm³/h or ACFM | necessary | |
| 2 | Dust concentration | g/Nm³ (inlet) | ||
| 3 | Particle size distribution | D₅₀ / D₉₀ / PM2.5 ratio | ||
| 4 | Gas temperature | °C | necessary | |
| 5 | Gas composition | e.g. air, flue gas, organic vapor, SO₂, etc. | ||
| 6 | Humidity / Dew point | %RH or °C | ||
| 7 | Dust characteristics | Sticky / Oily / Conductive / Explosive / Inorganic Dust | necessary | |
| 8 | Required outlet emission | mg/Nm³ | necessary | |
| 9 | Working pressure / ΔP | bar / kPa | ||
| 10 | Operating mode | Continuous / Intermittent | ||
| 11 | Material of housing | Carbon steel / SS304 / SS316L | ||
| 12 | Filter media preference | Polyester / PPS / Nomex / PTFE / P84 | ||
| 13 | Dust discharge system | Manual / Rotary valve / Screw conveyor | ||
| 14 | Compressed air supply | Pressure (bar), source available? | ||
| 15 | Explosion protection | Yes / No (ATEX / NFPA standard) | ||
| 16 | Space for installation | L × W × H (m) | ||
| 17 | Power supply | Voltage / Frequency | ||
| 18 | Ambient condition | Indoor / Outdoor; min/max temperature | ||
| 19 | Expected delivery location | City / Port / Country | ||
| 20 | Other remarks | |||
| 21 | Installation Space | L × W × H; Installation area dimensions | Determine dust collector layout (side or top entry) | |
| 22 | Dust Discharge | Manual / Screw conveyor / Rotary valve / Pneumatic conveying | Select hopper and discharge system | |
| 23 | Compressed Air | Pressure (bar); air quality (dry / oil-free) | Define pulse cleaning air system parameters | |
| 24 | Power & Control | Voltage, PLC or remote control requirement | Design electrical control cabinet | |
| 25 | Explosion Protection | Explosion risk; venting or isolation required | Basis for explosion protection design | |
| 26 | Material Selection | Carbon steel / Stainless steel / Inner coating | Decide housing and cage material | |
| 27 | Ambient Condition | Indoor / Outdoor; Minimum ambient temperature | Determine insulation and surface protection |
Why Choose Our Anti-static Industrial Pulse Jet Baghouse?
Our baghouse offers high filtration efficiency, automatic pulse cleaning, and modular design, making it ideal for various industrial applications. It meets environmental standards and protects worker health.
How Does It Benefit Industries?
By providing clean air output, reducing maintenance costs, and adapting to high-temperature environments, our baghouse enhances industrial productivity and compliance.
What Industries Can Use It?
Our baghouse is suitable for cement, woodworking, boiler systems, mining, metal processing, agriculture, food processing, and more, offering versatile dust collection solutions.
